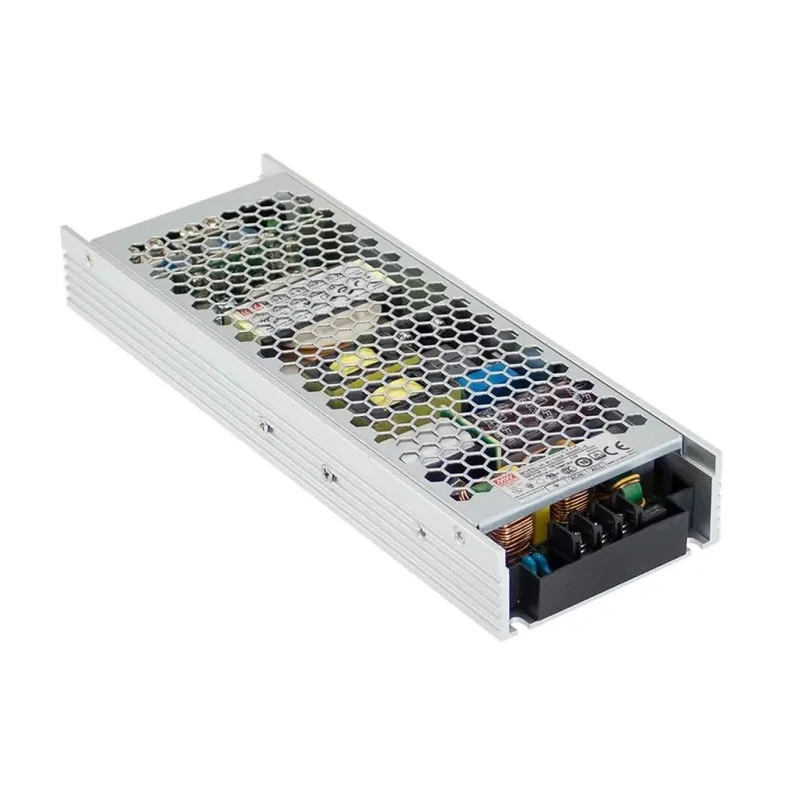

MEAN WELL UHP-500-24 Switching Power Supply 24V DC 501.6W 370V DC 264V AC Chassis Mount UHP-500-24

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL UHP-500-24 Switching Power Supply 24V DC 501.6W 370V DC 264V AC Chassis Mount UHP-500-24

Name: MEAN WELL UHP-500-24 Switching Power Supply 24V DC 501.6W 370V DC 264V AC Chassis Mount UHP-500-24
Brand: MEAN WELL
SKU: 96582



Category Switching Power Supplies Brand MEAN WELL Condition New

Specifications

Country of Origin	China
Brand	MEAN WELL
Power	501.6W
Efficiency	94.5%
Length	232mm
Model	UHP-500-24
Depth	31mm
Gross Weight	905g
Width	81mm
Mount Type	Chassis
Series	UHP-500
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	370, 264V dc
Protections	Short circuit / Overload / Over voltage / Over temperature
Maximum Output Voltage	24V dc
SMPS Output Current	20.9A
Minimum Input Voltage	90V ac

Key Features

Maximum output voltage of 24V DC with a single output configuration.
Power rating of 501.6 watts suitable for industrial applications.
Wide operating temperature range from -20°C to 70°C.
Fanless convection cooling ensuring silent operation and increased reliability.
High efficiency of 94.5% for reduced energy loss.
Supports 90V AC minimum input voltage and withstanding up to 370V DC maximum input voltage.
Protections include short circuit, overload, overvoltage, and over temperature for safe operation.
Compact dimensions with length 232mm, width 81mm, and depth 31mm.

Product Description

MEAN WELL UHP-500-24 switching power supply is a robust industrial grade power supply providing a single output of 24V DC at 20.9A, delivering up to 501.6 watts of power. Designed with a slim 33mm profile and fanless convection cooling, this chassis-mounted unit offers silent operation and enhanced reliability over a wide temperature range from -20°C to 70°C. Featuring an active Power Factor Correction (PFC) function and surge input tolerance of 300VAC for 5 seconds, it ensures stable and efficient performance in demanding environments.

Its high efficiency of 94.5% reduces energy loss, making it suitable for industrial automation machinery, industrial control systems, mechanical and electrical equipment, electronic instruments, and LED display applications. The unit complies with multiple international safety standards including UL 62368-1 and TUV EN 62368-1 and carries extensive electrical protections such as short circuit, overload, over voltage, and over temperature safeguards.

With dimensions measuring 232mm in length, 81mm in width, and 31mm in depth, and weighing approximately 905 grams, this power supply is built for compact integration in control cabinets. The operating altitude supports up to 5000 meters, enabling versatile deployment across various industrial environments. The unit also offers optional DC OK active signal and redundant function features tailored for critical systems.

Maximum output voltage of 24V DC with single output. 501.6W power capacity with slim, fanless chassis mount design. Wide operating temperature range from -20°C to 70°C. Active Power Factor Correction (PFC) for improved efficiency.

Built-in protections: short circuit, overload, over voltage, and over temperature. High efficiency rating of 94.5% to minimize energy loss. Compact dimensions: 232mm length × 81mm width × 31mm depth. Suitable for industrial automation, machinery control, and LED applications.

Compliant with international approvals including UL, TUV, CSA, CCC, and others. 3 years warranty and support included.

This power supply unit is a reliable choice for industrial and commercial power distribution needs, ensuring safe, efficient, and durable operation. For more products in Switching Power Supplies, explore the offerings on EnvMart.
