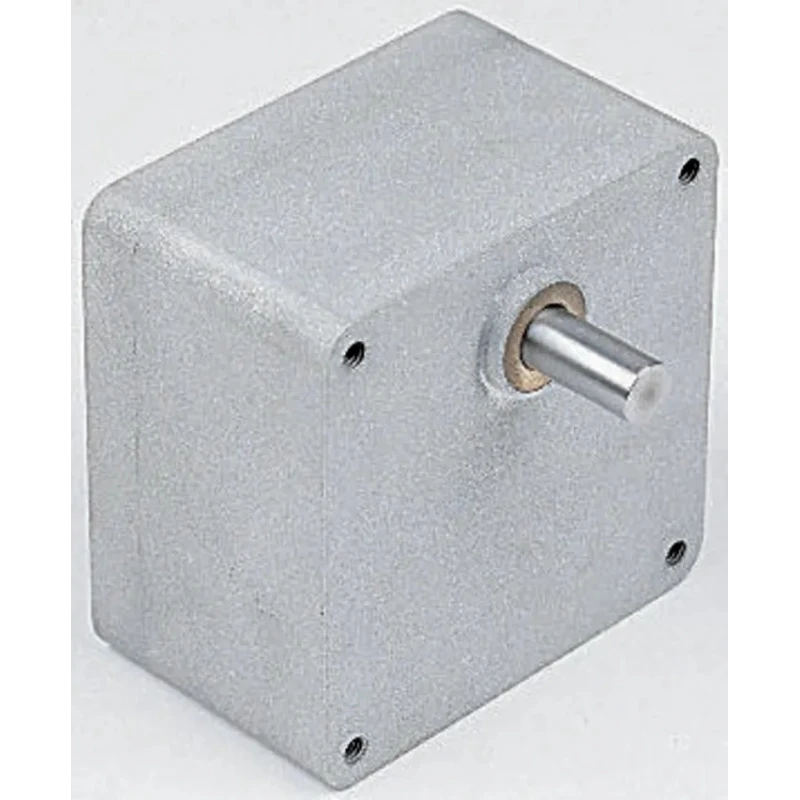

McLennan Servo Supplies Spur Gearbox 125:1 Gear Ratio 5 Nm Maximum Torque MRIG23 (125:1)

McLennan Servo Supplies MRIG23 (125:1) Spur Gearbox is a high-precision gearbox designed to provide a robust gear ratio of 125:1 with a maximum output torque of 5 Nm. Engineered with quality steel components and sintered bronze bearings, this gearbox ensures long-lasting durability and efficient torque transmission.

The gearbox features an 8 mm diameter output shaft sealed to prevent grease escape, bolstering maintenance ease and operational cleanliness. It supports a maximum radial load of 25 N and axial load of 20 N, making it suitable for a variety of precise mechanical applications.

With a compact overall size of 56 mm length, 56 mm width, and 41 mm depth, this gearbox fits comfortably in constrained spaces. It has a maximum continuous output power rating of 15 watts, making it energy efficient and reliable for continuous operation.

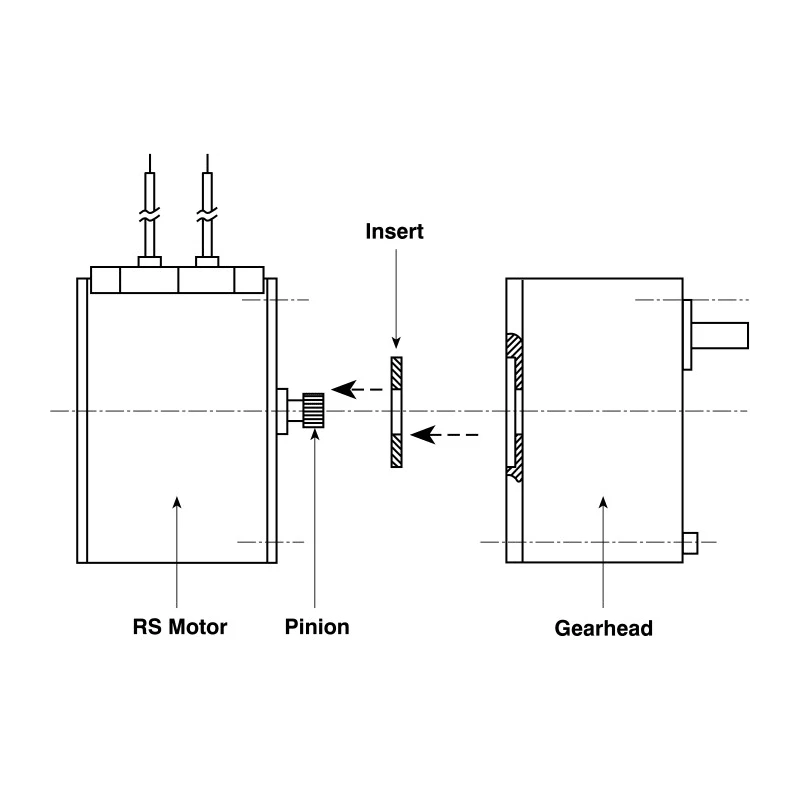

The MRIG23 series is compatible with 0.9° and 1.8° hybrid stepper motors, facilitating higher resolution and performance stability in motion control tasks. These motors operate with a step angle of 1.8°, or half step mode at 0.9°, providing precise speed and positional control through appropriate electrical pulse sequences.

This versatile gearbox is ideal for use in robotics, paper feed mechanisms, teletype printers, small machine tools, computer peripherals, and X-Y plotters, supporting a wide range of industrial and automation needs.

Constructed entirely of durable steel for reliable performance. Sintered bronze bearings for smooth motion and long service life. Sealed output shaft to prevent grease leakage and ensure cleanliness. Supports significant radial and axial loads on the output shaft.

Compact dimensions allow installation in limited spaces. Compatible with hybrid stepper motors enabling fine movement control. Delivered with a comprehensive instruction sheet for ease of fitting. Well-suited for industrial automation, robotics, and precision machinery.

Provides consistent torque output with 125:1 gear ratio.
