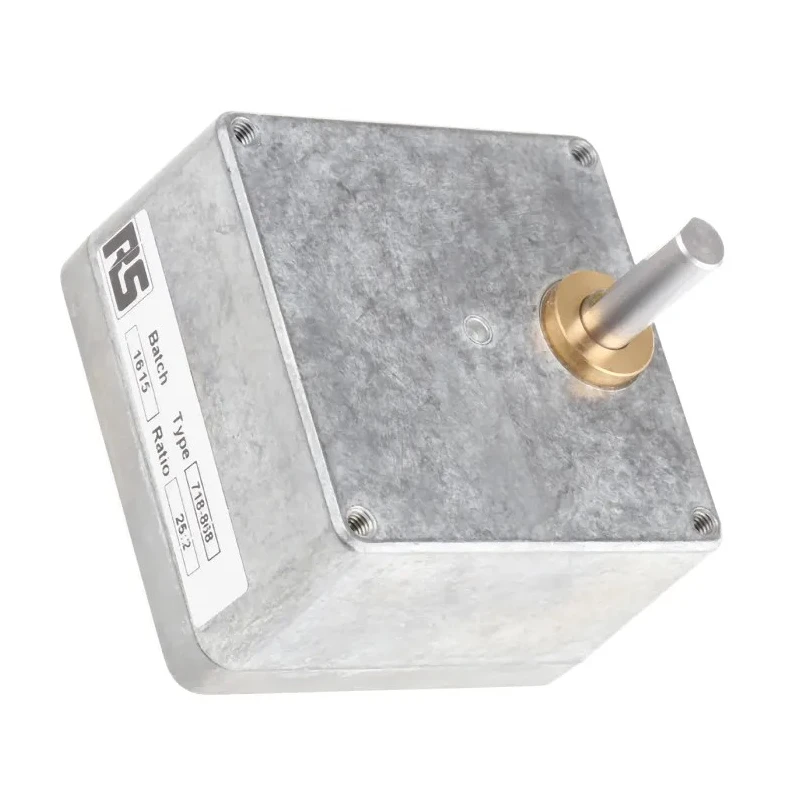

McLennan Servo Supplies Spur Gearbox, 25:2 Gear Ratio, 2.5 Nm Maximum Torque MRIG06 (25:2)

McLennan Servo Supplies MRIG06 (25:2) Spur Gearbox is a high-quality mechanical component designed to provide precise torque transmission in various industrial applications. Featuring a spur gearbox type with a gear ratio of 25:2, it delivers a maximum output torque of 2.5 Nm and efficiency of 72%, ensuring reliable operation.

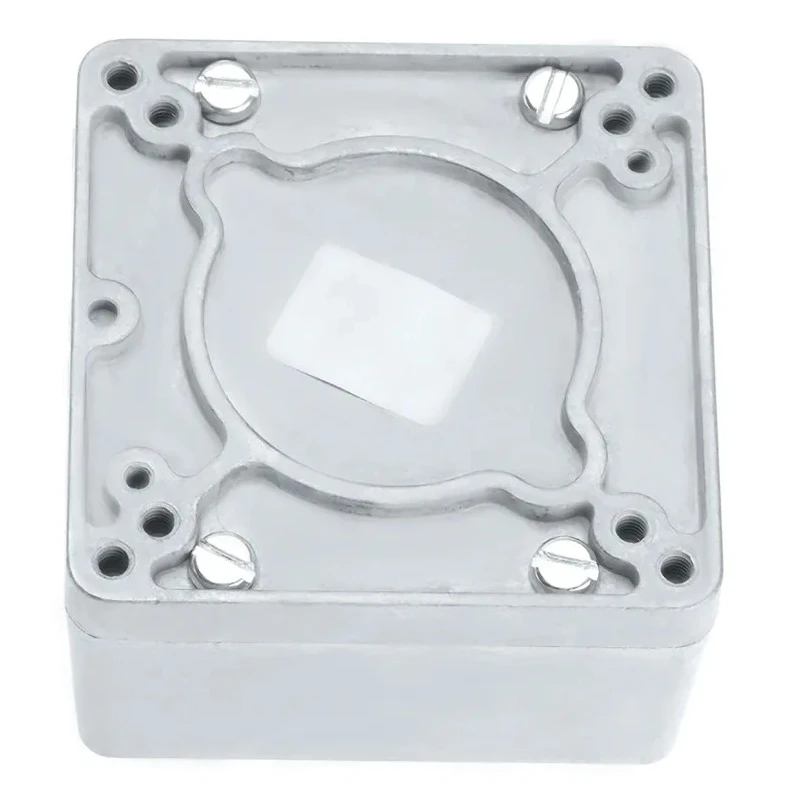

The gearbox sports an 8mm shaft diameter and compact overall dimensions of 56mm length, 56mm width, and 41mm depth. It is constructed fully from metal to ensure durability and efficient heat dissipation during operation. Sintered bronze bearings are incorporated to enhance gearbox lifespan and operational smoothness.

Notably, the gearbox is designed with load-bearing capacity in mind, supporting maximum radial and axial output shaft loads of 25N and 20N respectively. The maximum continuous output power is rated at 15 watts, suitable for medium-duty applications.

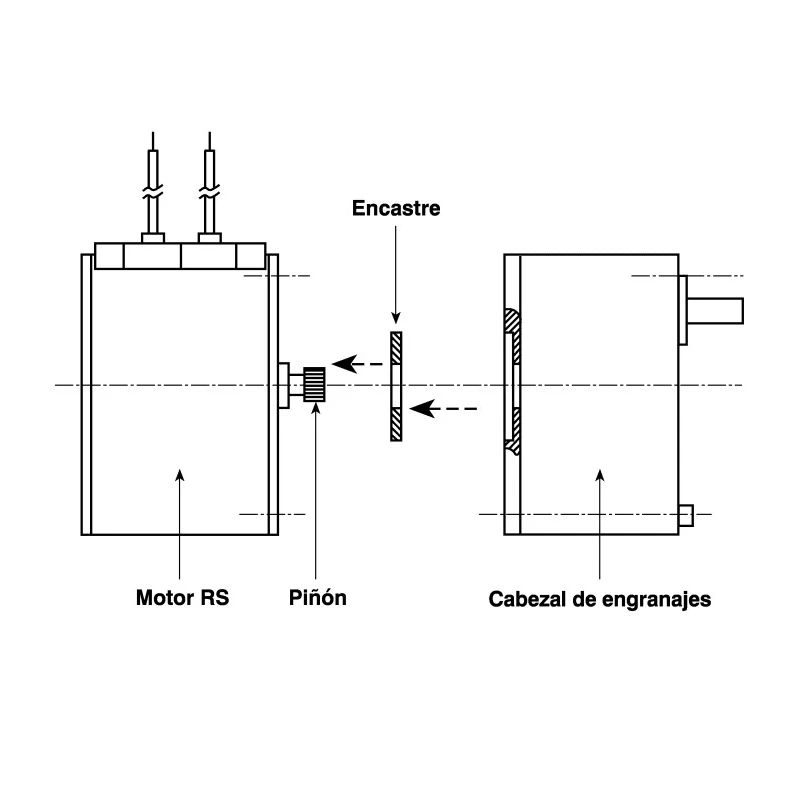

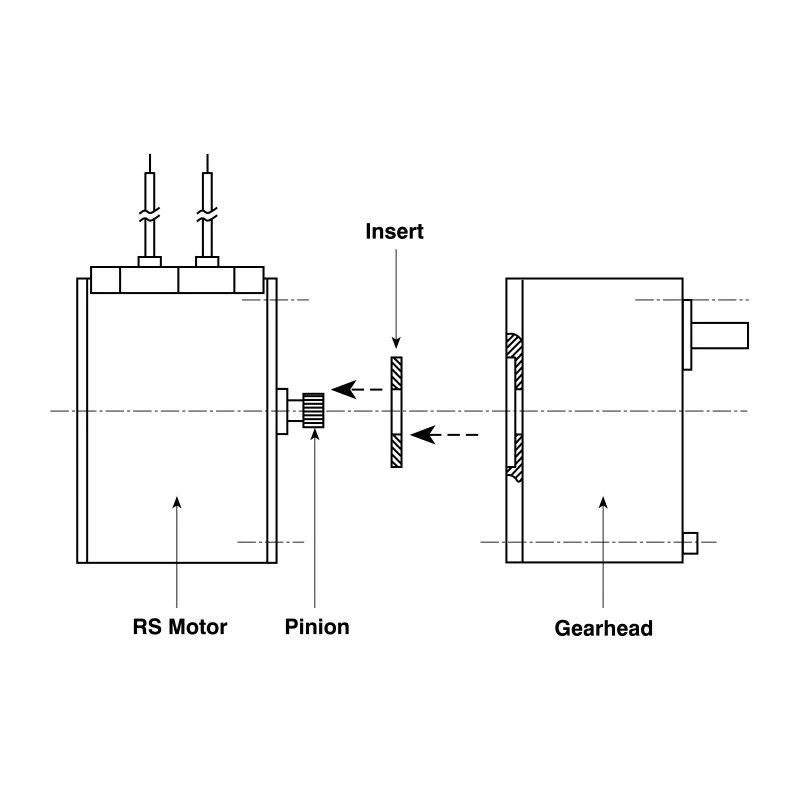

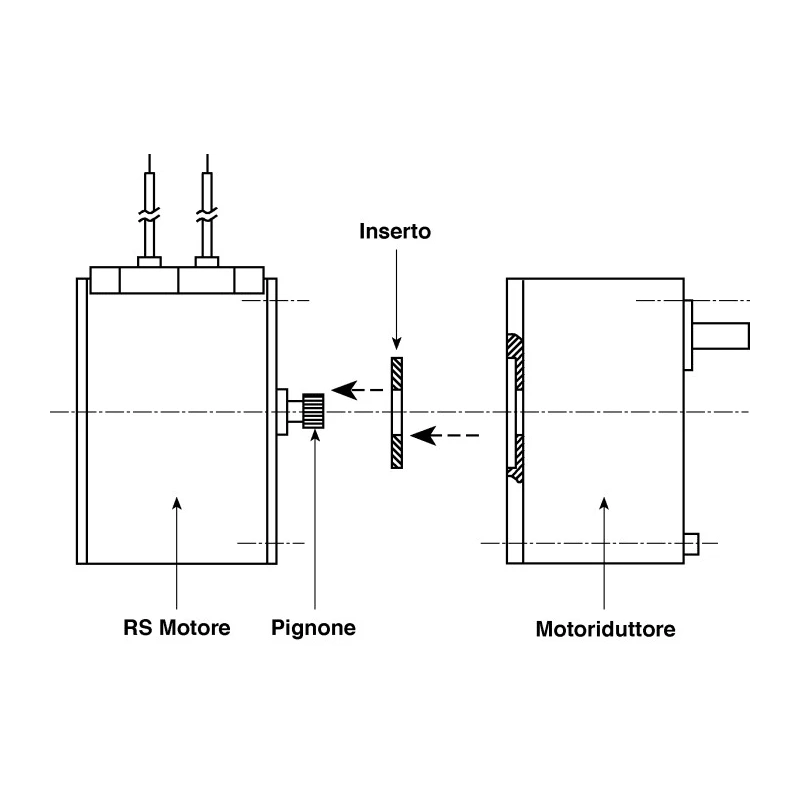

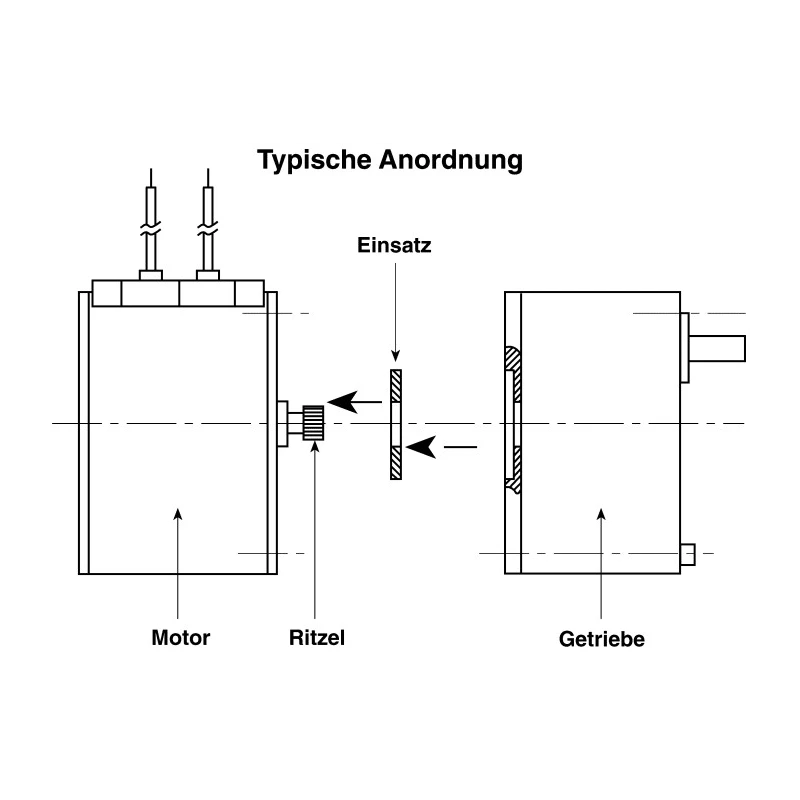

The output shaft is sealed to prevent grease escaping from the gearbox, minimizing maintenance and contamination risks. It is compatible with hybrid stepper motors featuring 0.9° and 1.8° step angles, promising high-resolution positioning and stable performance. These motors are directly suitable for stepper motor drive boards and can be driven in half-step mode, providing 0.9° steps per rotation.

Applications for this spur gearbox include robotics, paper feed mechanisms, teletype printers, small machine tools, computer peripherals, and X-Y plotters, making it an essential component in automation and control systems.

The gearbox features a robust spur gear design for efficient torque transmission. It has an 8mm diameter output shaft suitable for adapter applications. Compact size with overall dimensions of 56mm length, 56mm width, and 41mm depth.

Constructed entirely of metal for durability and effective heat dissipation. Equipped with sintered bronze bearings to enhance performance and lifespan. Maximum radial and axial load capacities on the output shaft are 25N and 20N respectively.

Maximum continuous output power is rated at 15 watts. Output shaft is sealed to prevent grease leakage, reducing maintenance needs. Compatible with 0.9° and 1.8° hybrid stepper motors, providing step angles suitable for precise positioning.

Commonly used in robotics, paper feed mechanisms, small machine tools, computer peripherals, and X-Y plotters.

McLennan Servo Supplies is a trusted brand in automation and control gear components. This MRIG06 (25:2) spur gearbox is engineered to meet demanding industrial requirements with high accuracy and durability. Shop within the Gearboxes category at EnvMart for similar precision gear components and automation solutions.
