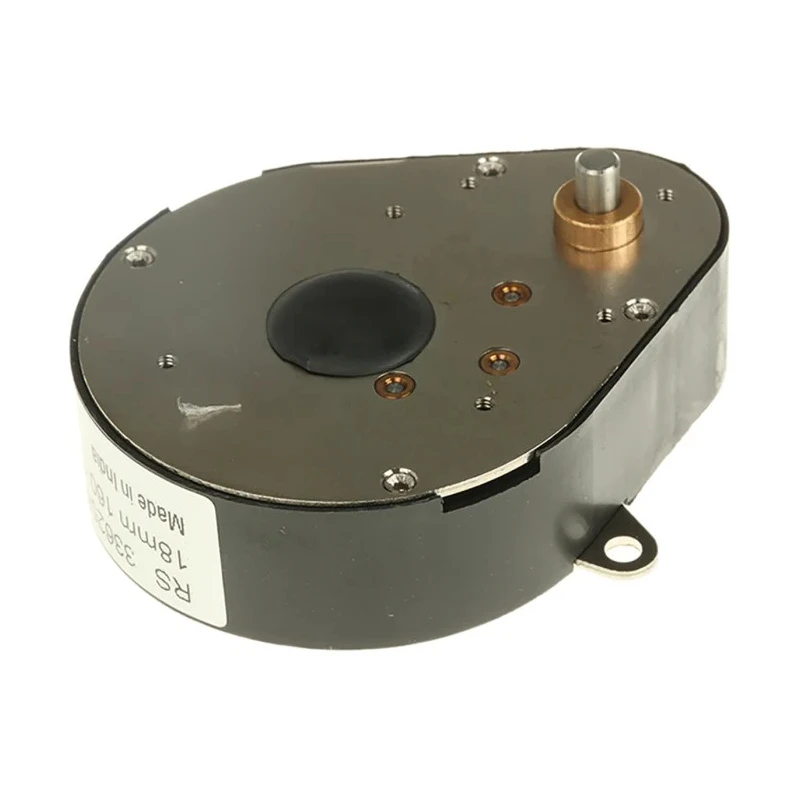

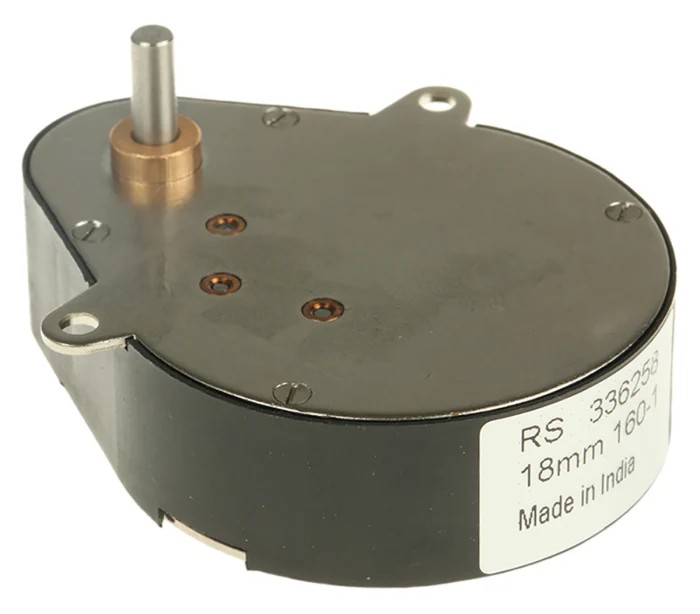

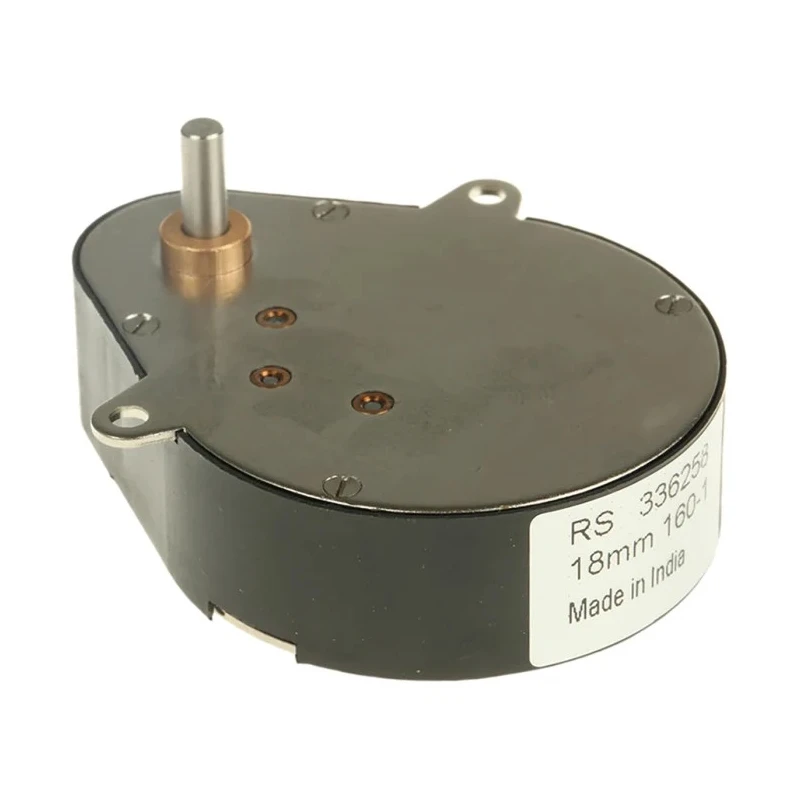

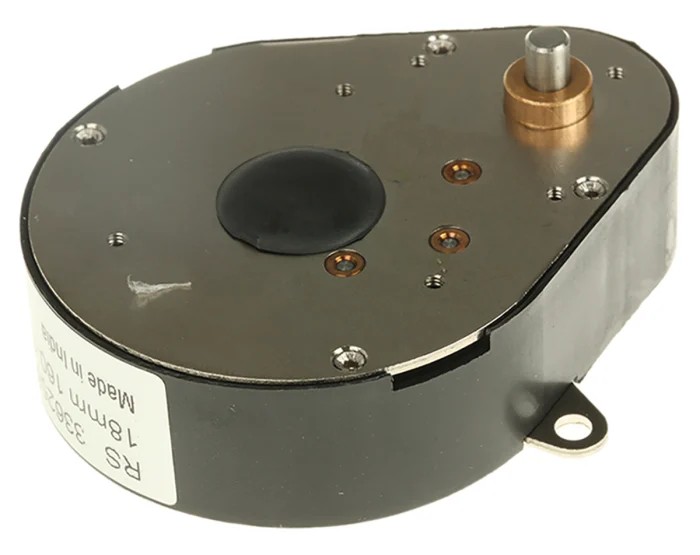

RS PRO Ovoid Gearbox, 160:1 Gear Ratio, 0.6 Nm Maximum Torque, 8800 rpm Maximum Speed 336-258

RS PRO 336-258 Ovoid Gearbox is a high-quality precision gearbox engineered for industrial automation and control systems requiring accurate positional feedback and speed regulation. Featuring a 160:1 gear ratio and a maximum output torque of 0.6 Nm, this gearbox operates efficiently at up to 8800 rpm, suitable for integration with precision DC motors.

The gearbox has a double-ended 4 mm output shaft designed to accommodate servo potentiometer mounting kits and conductive plastic potentiometers, making it ideal for servo applications demanding precise position feedback. Its compact form factor, measuring 49.5 mm in diameter, 62.8 mm in length, 50 mm in width, and 36.5 mm in depth, allows for easy installation into tight spaces.

Supplied with a motor adaptor plate, fixing screws, and a pinion, this gearbox enables straightforward fitting to DC precision motors. Its robust ovoid design ensures durability and smooth performance in low inertia speed control systems, improving the response of positioning and speed control setups.

This gearbox does not conform to any specific standards or approvals but is widely utilized in manufacturing, robotics, electrical motor assemblies, and automation equipment where reliable and precise gear reduction is essential.

High quality ovoid reduction gearbox construction for synchronous and servo applications. Double-ended output shaft for servo potentiometer and conductive plastic potentiometer mounting. Includes necessary mounting accessories for motor attachment.

Compact design suitable for low inertia speed control systems. Operates at maximum 8800 rpm with a 160:1 gear ratio and 0.6 Nm torque. Ideal for industrial automation, manufacturing, and robotic applications requiring precision gearboxes.
