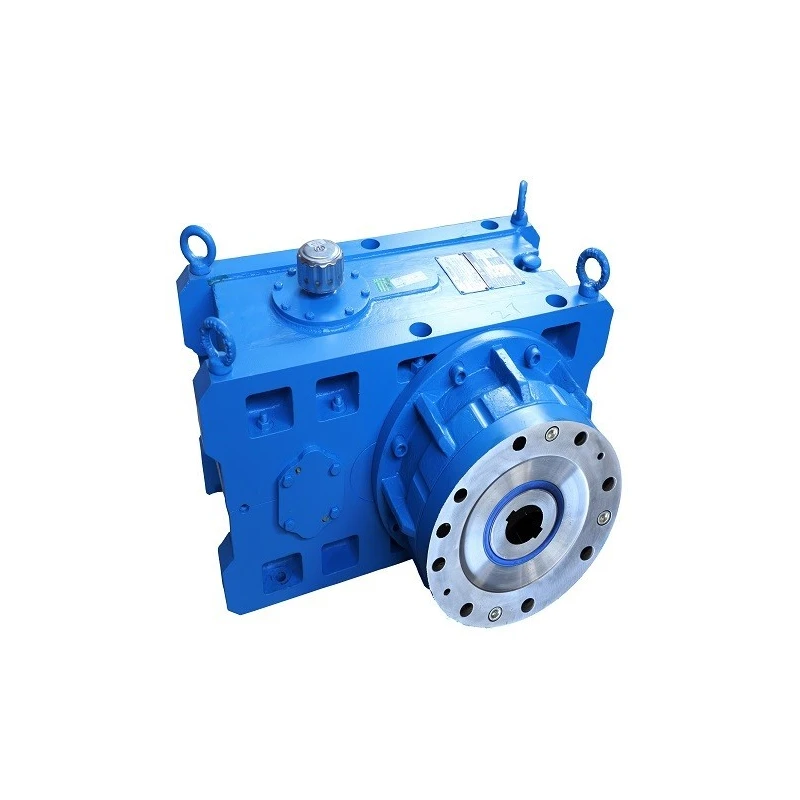

GHE-Series Extruder Gearbox
Specifications
| Country of Origin | India |
|---|---|
| Warranty | As per Manufacturer |
Key Features
- 8 sizes of units with ratio coverage ranging from 5.06/1 to 25.6/1
- GHE Series gearboxes are fully metric
- The units sizes upto 160 are in unicast housing and above 160 are in split housing
- Shaft extension keyway are to IS:2048
- Output bores are provided with single keyway provisions. Double keyway / Splined bores can be provided against customized requirements.
Product Description
GHE-Series Extruder Gearboxes in double reduction parallel shaft horizontal and vertical models are intended to satisfy characteristic requirements and conditions encountered in the single screw extrusion process. The gear units are quite capable to transmit the high torque required for pressurizing and plasticizing molding materials. They can also absorb the high axial thrust through built-in spherical roller thrust bearings. A separate critically designed axial bearing housing accommodates thrust bearings of different sizes according to applied loads. The hollow output shafts mounted with the different thrust bearings have different bores to accommodate the thrust screw. The units can be offered in Left hand or Right-hand configurations with horizontal and vertical mounting to meet specific mounting needs. The modular design of GHE Series gearboxes offers a great range of flexibility in the interchangeability of parts.
- Optional Cooling Coil provisions for additional cooling
- The units can be suited to accommodate different thrust bearings
- LH and RH handing can be provided
- Horizontal and Vertical mountings are possible
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can be mounted both horizontally and vertically, accommodating specific mounting needs.
The GHE-Series Extruder Gearboxes are manufactured in India.
The GHE-Series can accommodate different thrust bearings according to applied loads, with a separate housing designed for this purpose.
Yes, optional cooling coil provisions are available for additional cooling in the GHE-Series gearboxes.
The output shafts can be configured with different bores to accommodate thrust screws, and they can also be provided in left-hand or right-hand configurations.
Units sized up to 160 are made with unicast housing, while those above 160 utilize split housing.
This gearbox is intended for use in the single screw extrusion process, capable of transmitting high torque for pressurizing and plasticizing molding materials.
The warranty for the GHE-Series Extruder Gearboxes is as per the manufacturer's policy.
The built-in spherical roller thrust bearings allow the gearbox to absorb the high axial thrust encountered during operation.
Specific dimensions and weight details are not provided; please inquire for customized configurations.
