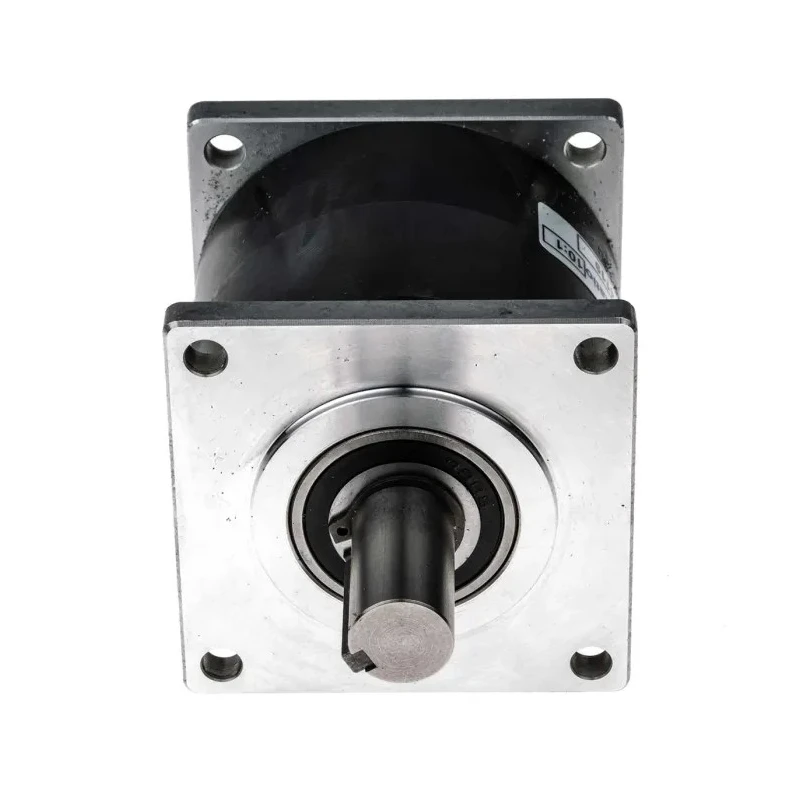

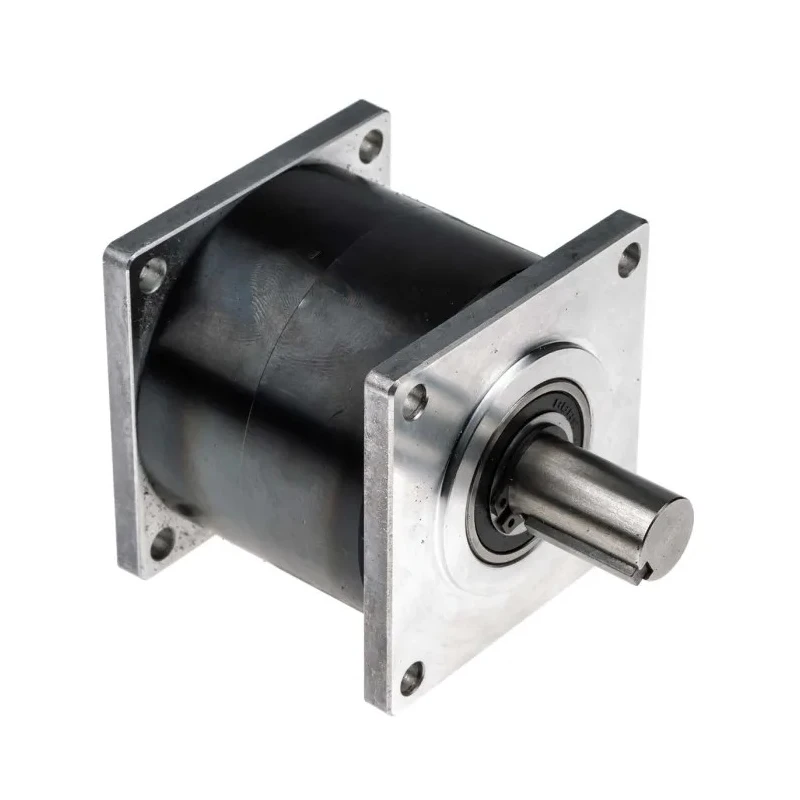

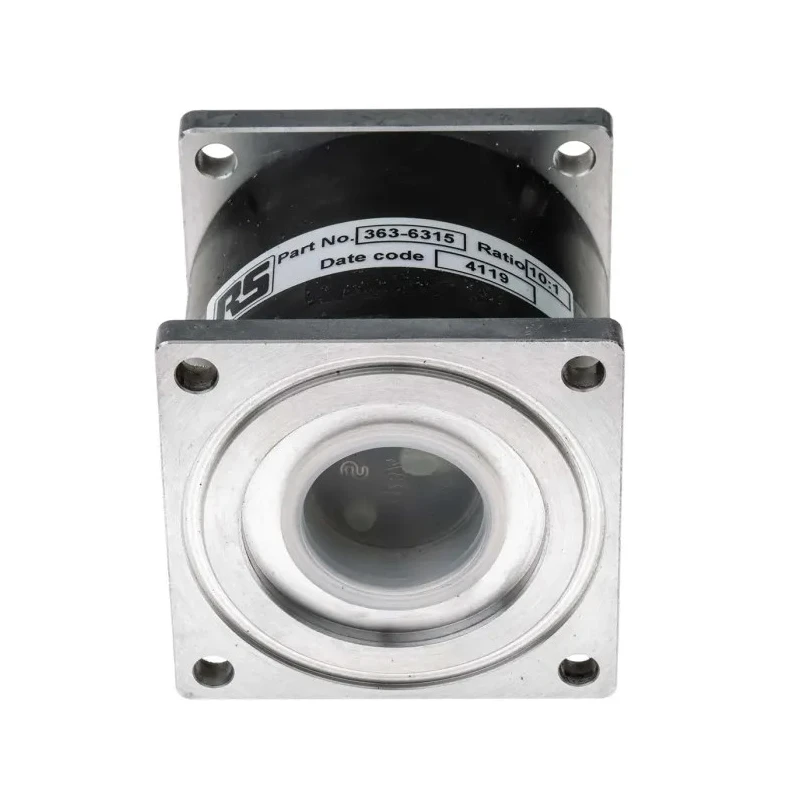

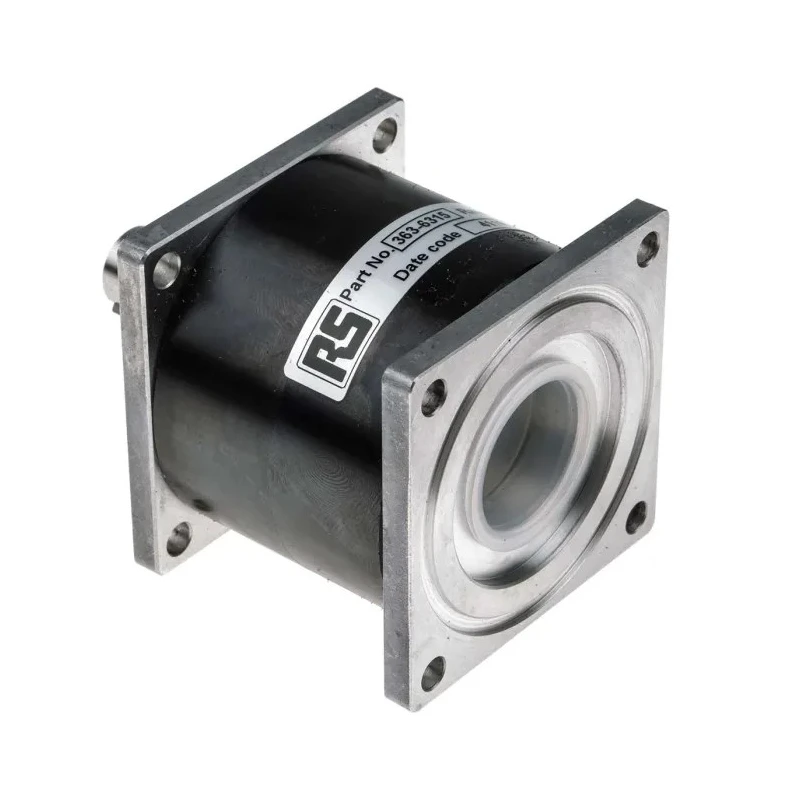

McLennan Servo Supplies Planetary Gearbox, 10:1 Gear Ratio, 12 Nm Maximum Torque IP57-M1-10
Specifications
| Country of Origin | Switzerland |
|---|---|
| Diameter | 57mm |
| Brand | McLennan Servo Supplies |
| Model | IP57-M1-10 |
| Overall Length | 67.75mm |
| Series | IP |
| Overall Width | 66.68mm |
| Shaft Diameter | 12.69mm |
| 10 | 1 |
| Gear ratio | 10:1 |
| Gearbox Type | Planetary |
| Overall Depth | 66.68mm |
| Maximum Output Torque | 12nm |
| De-rate ratio 10 | 1 (stock no. 363-6315) by 10% |
| Gear Ratio10 | 1 |
| SpecificationsBrandMcLennan Servo SuppliesProduct TypeGearboxGear Ratio10 | 1Gearbox TypePlanetaryMaximum Output Torque12nmShaft Diameter12.69mmDiameter57mmOverall Length67.75mmOverall Width66.68mmOverall Depth66.68mmStandards/ApprovalsNoSeriesIPCountry of OriginSwitzerland |
| McLennan Servo Supplies Planetary Gearbox, 10 | 1 Gear Ratio, 12 Nm Maximum Torque |
Key Features
- The planetary gear design ensures compact dimensions with high torque density.
- Suitable for fixing to a wide range of motors with NEMA size 23 frame compatibility.
- Reduced backlash provides accurate velocity and positional control.
- Includes two pinions; fixing kits are required for motor attachment.
- Ideal for robotics, process control, lab automation, and industrial machinery requiring high dynamics.
- Constructed with durable materials and manufactured in Switzerland for quality assurance.
- Shaft diameter measures 12.69 mm, ensuring compatibility with standard motor shafts.
- No specific standards or approvals listed, designed for reliable industrial use.
Product Description
McLennan Servo Supplies IP57-M1-10 Planetary Gearbox is an industrial grade gearbox with a 10:1 gear ratio and a maximum output torque of 12 Nm. Its planetary construction offers high torque capacity within compact dimensions, suitable for attaching to a variety of NEMA size 23 motors.
This gearbox features reduced backlash enabling accurate velocity and positional control, essential for applications demanding precision such as robotics, paper feed mechanisms, and small machine tools. Its sturdy design and manufacturing origin in Switzerland assure durability and reliability in demanding industrial environments.
The gearbox comes with two pinions, and fixing kits comprising fitting clamps, adaptors, and screws are required for mounting to motors. Its shaft diameter is 12.69 mm, with overall dimensions approximately 57 mm in diameter, 67.75 mm in length, and 66.68 mm in width and depth.
Ideal applications include industrial process control, scientific instrumentation, and dynamic machinery where high torque and compact footprint are critical. The planetary gearhead is part of the Series 57 range, designed for high dynamics and accurate velocity control.
The planetary gear design ensures compact dimensions with high torque density. Compatible with NEMA size 23 motors for versatile use. Reduced backlash enhances precision control. Includes two pinions; fixing kits sold separately.
Ideal for robotics, automation, and industrial process control. Manufactured in Switzerland with high-quality standards. Dimensions: 57 mm diameter, 67.75 mm length, 66.68 mm width and depth. Shaft diameter: 12.69 mm. Maximum torque: 12 Nm with 10:1 gear ratio.
De-rate by 10% recommended for continuous operation. Explore the range of McLennan Servo Supplies gearboxes and motor accessories for precise and reliable automation solutions here on EnvMart.
Explore more products in our Gear Boxes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output torque of this model is 12 Nm.
This gearbox has a gear ratio of 10:1.
The overall dimensions are approximately 57 mm in diameter, 67.75 mm in length, and 66.68 mm in width and depth.
The shaft diameter measures 12.69 mm, ensuring compatibility with standard motor shafts.
It is compatible with NEMA size 23 motors, allowing for versatile use in various applications.
This model is a planetary gearbox, designed for high torque density and compact dimensions.
It is ideal for robotics, process control, lab automation, and industrial machinery requiring high dynamics.
The gearbox includes two pinions, but fixing kits for motor attachment are sold separately.
For continuous operation, it is recommended to de-rate the gearbox by 10%.
The gearbox is manufactured in Switzerland, ensuring quality assurance in its construction.
Reduced backlash in its design provides accurate velocity and positional control, essential for precision applications.
This gearbox is part of the Series IP range, designed for high dynamics and accurate control.
