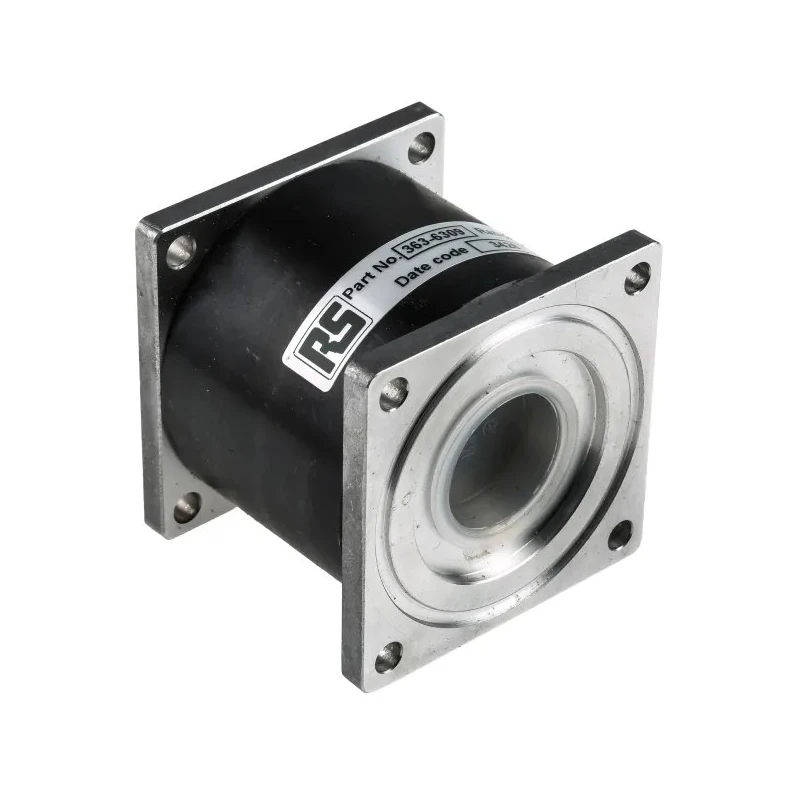

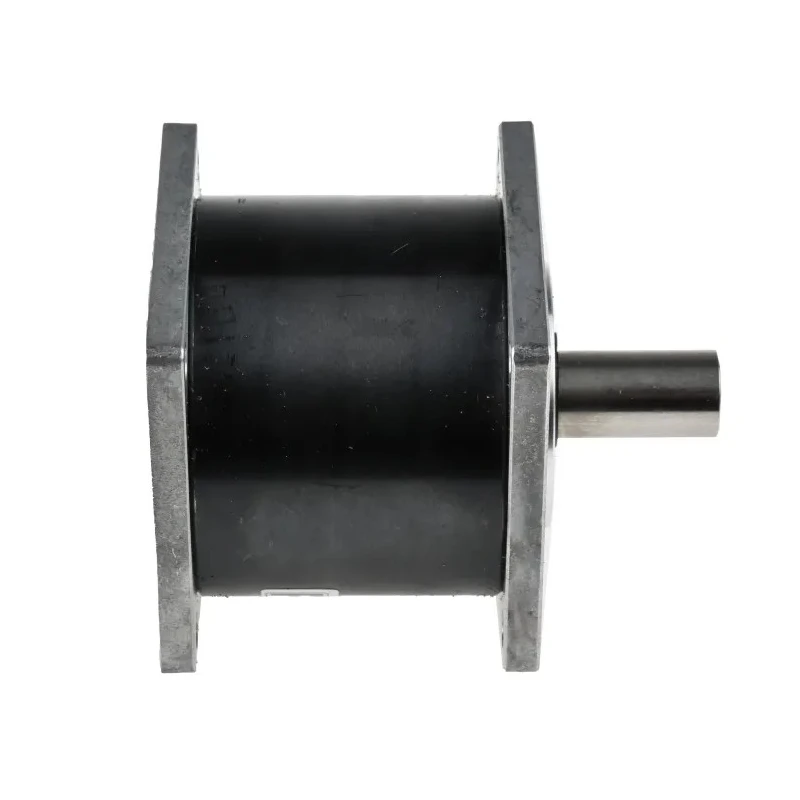

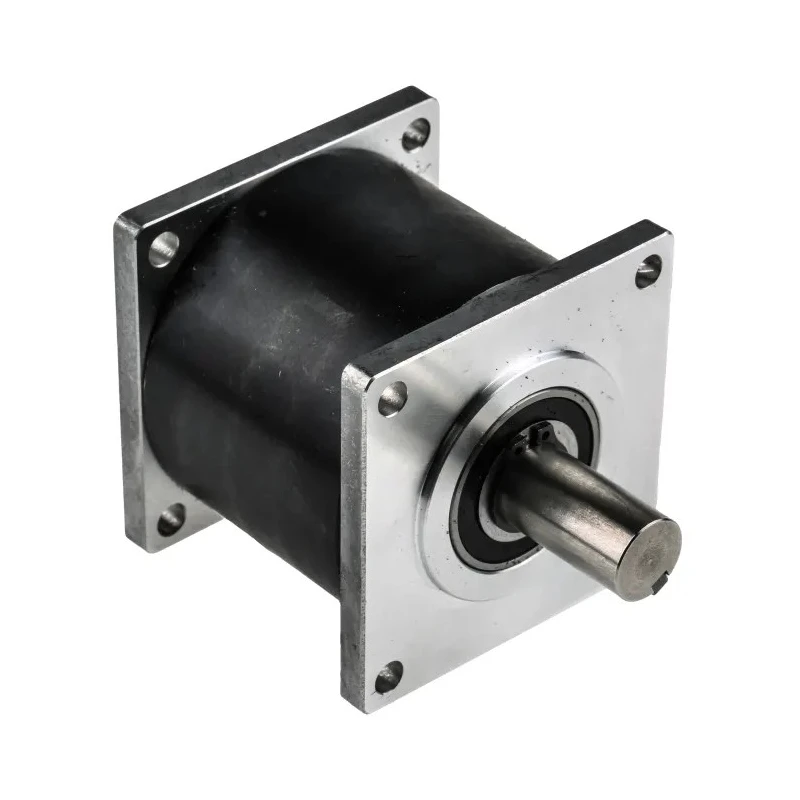

McLennan Servo Supplies Planetary Gearbox 5:1 Gear Ratio 12 Nm Maximum Torque IP57-M1-5
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 57mm |
| Brand | McLennan Servo Supplies |
| Model | IP57-M1-5 |
| Overall Length | 54mm |
| Series | IP |
| Overall Width | 66.68mm |
| Shaft Diameter | 12.69mm |
| Gear ratio | 5:1 |
| Gearbox Type | Planetary |
| Overall Depth | 66.68mm |
| Maximum Output Torque | 12nm |
| De-rate ratio 10 | 1 (stock no. 363-6315) by 10% |
| SpecificationsBrandMcLennan Servo SuppliesProduct TypeGearboxGear Ratio5 | 1Gearbox TypePlanetaryMaximum Output Torque12nmShaft Diameter12.69mmDiameter57mmOverall Length54mmOverall Width66.68mmOverall Depth66.68mmStandards/ApprovalsNoSeriesIP |
| Gear Ratio5 | 1 |
| McLennan Servo Supplies Planetary Gearbox, 5 | 1 Gear Ratio, 12 Nm Maximum Torque |
Key Features
- Designed with planetary construction for compact size and high torque output.
- NEMA size 23 frame compatible with various motors for flexible installation.
- Compact dimensions with 57 mm diameter and 54 mm length support space-efficient design.
- Supplied with two pinions and requires fixing kits for motor attachment.
- Ideal for accurate velocity and positional control in industrial, process, and scientific applications.
- Reduced backlash enhances precision in high dynamic requirements.
- Constructed for use with 0.9° and 1.8° hybrid stepper motors supporting high resolution control.
- Robust design suitable for robotics, small machine tools, computer peripherals, paper feed mechanisms, and X-Y plotting devices.
Product Description
McLennan Servo Supplies IP57-M1-5 planetary gearbox offers a 5:1 gear ratio and 12 Nm maximum torque, designed specifically for industrial automation and control applications. This planetary gearhead is engineered with compact planetary construction to provide high torque in minimal space, making it an excellent choice for NEMA size 23 motors.
The gearbox dimensions of 57 mm diameter, 66.68 mm width and depth, and 54 mm overall length enable easy integration into machinery requiring precise mechanical power transmission.
Supplied with two pinions, it is intended for use with fixing kits that include clamps, adaptors, and fitting screws for secure motor attachment.
The reduced backlash construction ensures accurate velocity and positional control, critical in applications like robotics, small machine tools, X-Y plotters, and printer feed mechanisms.
This gearbox is compatible with 0.9° and 1.8° hybrid stepper motors which offer high stepping resolution and stable performance, making it suitable for precise industrial positioning and speed regulation.
Planetary construction enables compact size and high torque capacity. NEMA 23 frame compatibility allows versatile motor mounting. Reduced backlash enhances control accuracy. Includes two pinions for flexible gearing options.
Ideal for robotics, machine tooling, and scientific instrumentation. Supports high-precision stepper motors with 0.9° and 1.8° step angles. Facilitates accurate velocity and positional control in diverse industrial settings.
This product is designed for demanding industrial, manufacturing, scientific, and process control environments where dynamic motor control and power transmission precision are required.
Explore more gearboxes and precision electronics components in the Electronics & Electricals category at EnvMart.
Explore more products in our Gear Boxes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gearbox features a gear ratio of 5:1, allowing for efficient power transmission in various applications.
It has a maximum output torque of 12 Nm, making it suitable for high-torque applications.
The gearbox has a diameter of 57 mm, an overall length of 54 mm, and an overall width and depth of 66.68 mm.
This model is compatible with NEMA size 23 motors and supports 0.9° and 1.8° hybrid stepper motors for high resolution control.
It is a planetary gearbox, designed for compact size and high torque output.
The gearbox is supplied with two pinions and requires fixing kits for secure motor attachment, which include clamps, adaptors, and fitting screws.
The reduced backlash enhances precision in velocity and positional control, which is critical for applications requiring high dynamic performance.
It is ideal for use in robotics, small machine tools, computer peripherals, paper feed mechanisms, and X-Y plotting devices.
The shaft diameter is 12.69 mm, allowing for compatibility with various motor shafts.
The gearbox is manufactured in India, ensuring a specific quality standard.
The overall width and depth of the gearbox are both 66.68 mm, contributing to its compact design.
This gearbox is part of the IP series, which is designed for industrial automation and control applications.
