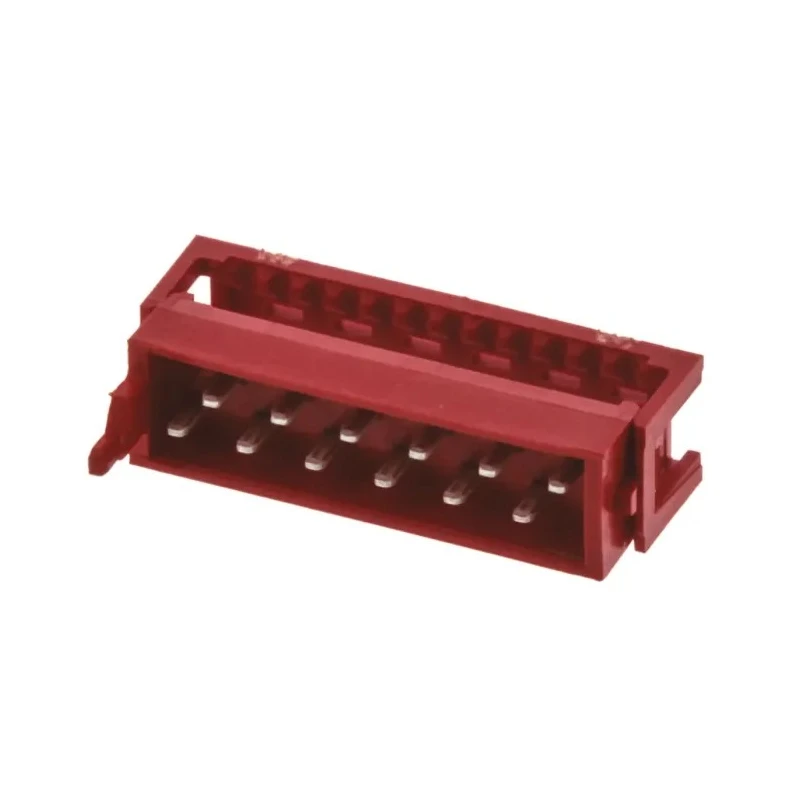

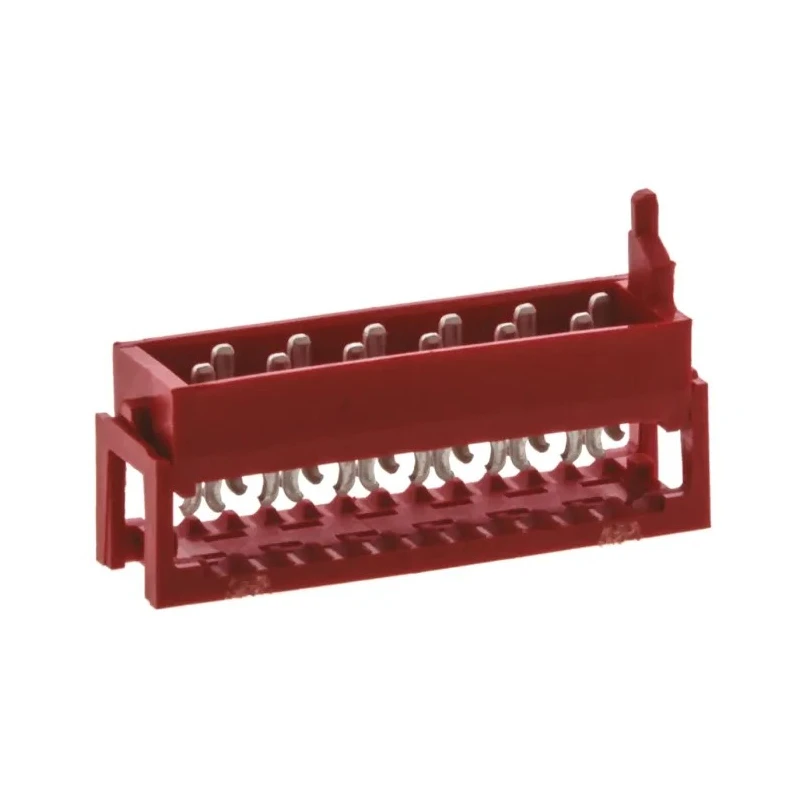

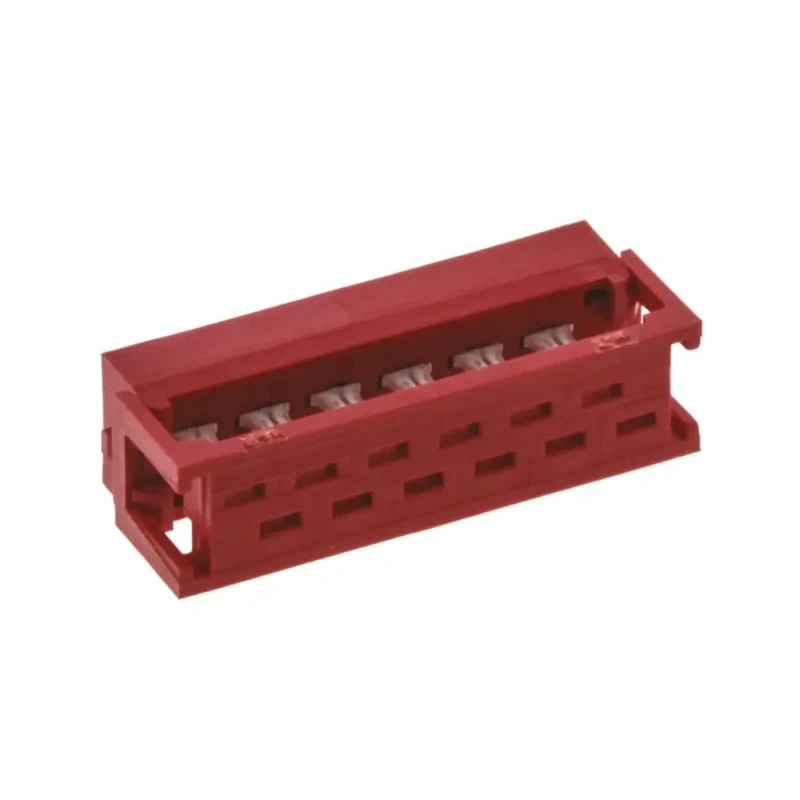

TE Connectivity 12-Way IDC Connector Male for Cable, 2 Row, 230V AC, 1.5A, Micro-MaTch 8-0215083-2
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 230V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.5A |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | Micro-MaTch |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1.27mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| TE Connectivity 12-Way IDC Connector Plug for Cable Mount, 2-RowBrand | TE Connectivity |
Key Features
- Designed for cable mounting with right angle orientation.
- Supports a current rating of 1.5 amperes at 230V AC voltage.
- Features tin over nickel contact plating for enhanced durability.
- Contact material is phosphor bronze, ensuring strength and conductivity.
- Housing is made from polyethylene terephthalate for chemical and heat resistance.
- Unshrouded male connector designed for insulation displacement termination (IDC).
- Operating temperature range from -40°C to 105°C for broad environmental use.
- Includes polarization features to prevent mismating and ensure secure connections.
Product Description
TE Connectivity 8-0215083-2 is a 12-Way IDC Connector Male designed for cable mounting with 2 rows and a pitch of 1.27mm, supporting up to 1.5A current at 230V AC. This Micro-MaTch series connector features a compact, space-saving design suitable for wire-to-board interconnections in electronics and industrial applications.
The IDC contacts incorporate a spring system that resists fretting corrosion and ensures a gas-tight, durable connection. The included pre-assembled cover provides precise positioning of the ribbon cable during the insulation displacement process, secured by plastic latches at the connector ends for reliable installation.
Constructed with phosphor bronze contacts plated with tin over nickel and a housing made from robust polyethylene terephthalate, this connector offers excellent electrical performance and mechanical stability. It operates reliably across temperatures from -40°C to 105°C, making it adaptable for various harsh environments.
Polarization features help prevent incorrect mating, enhancing reliability in complex electronic systems. Its right angle orientation and cable mount design accommodate tight spaces and specialized equipment layouts.
Common applications include production and material handling equipment, control units, robots, motors, heating units, audio and dashboard systems, navigation equipment, base stations, and set-top boxes.
Designed for cable mounting with right angle orientation. Supports a current rating of 1.5 amperes at 230V AC voltage. Features tin over nickel contact plating for enhanced durability. Contact material is phosphor bronze, ensuring strength and conductivity.
Housing is made from polyethylene terephthalate for chemical and heat resistance. Unshrouded male connector designed for insulation displacement termination (IDC). Operating temperature range from -40°C to 105°C for broad environmental use.
Includes polarization features to prevent mismating and ensure secure connections. Ideal for wire-to-board applications in industrial and electronic equipment.
Explore the TE Connectivity range in IDC Connectors to find matching connectors and accessories suitable for your industrial and electronic needs. EnvMart offers a comprehensive catalog for advanced electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 1.5 amperes.
The connector operates at a voltage of 230V AC.
The contact material is phosphor bronze, and the housing is made from polyethylene terephthalate.
It operates reliably within a temperature range of -40°C to 105°C.
This model features 12 contacts.
It is designed for insulation displacement termination (IDC).
The connector is designed for right angle orientation.
The pitch of the contacts is 1.27mm.
Yes, it includes polarization features to prevent mismating.
Common applications include production equipment, control units, robots, motors, and audio systems.
The country of origin for this connector is Germany.
This connector has male contacts.
