Crydom Solid State Relay, 1 Series, Panel Mount, 75A Load Current, 280 Vrms Load Voltage, 32V Control, SCR Output D2475

With a load current rating of 75A and a maximum load voltage of 280 Vrms, it is capable of managing high-power circuits effectively. This relay features zero cross switching, which minimizes electrical noise and prevents inrush current disturbances, ideal for sensitive motor control and HVAC applications.

The device is intended for panel mount installation and uses screw terminals to ensure secure and easy wire connections. Its flame-retardant housing provides extra protection against fire hazards, enhancing safety during operation. Anti-rotation barriers secure the relay against twisting, maintaining stability in demanding industrial environments.

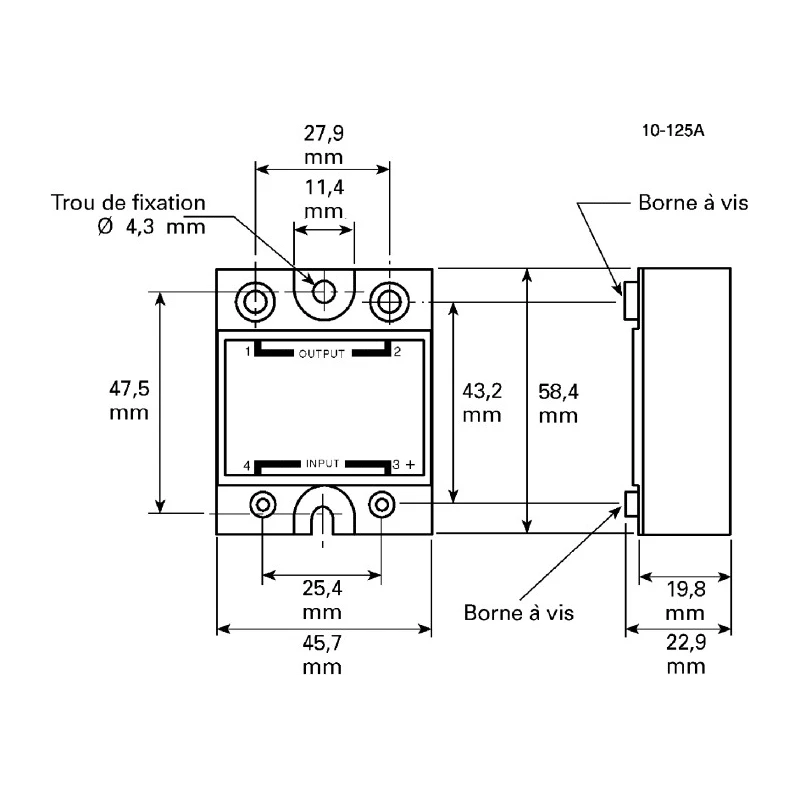

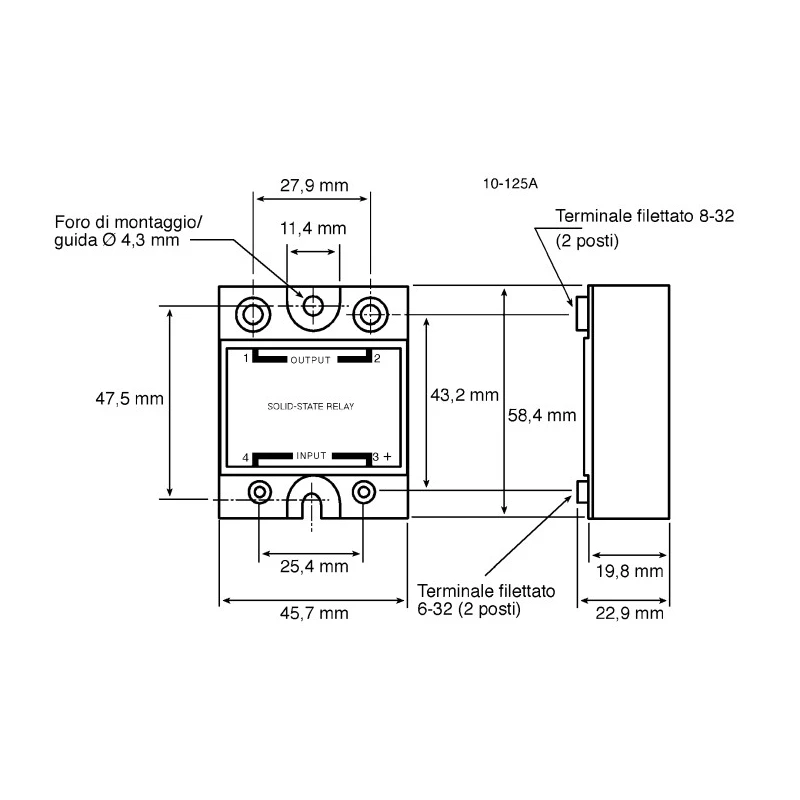

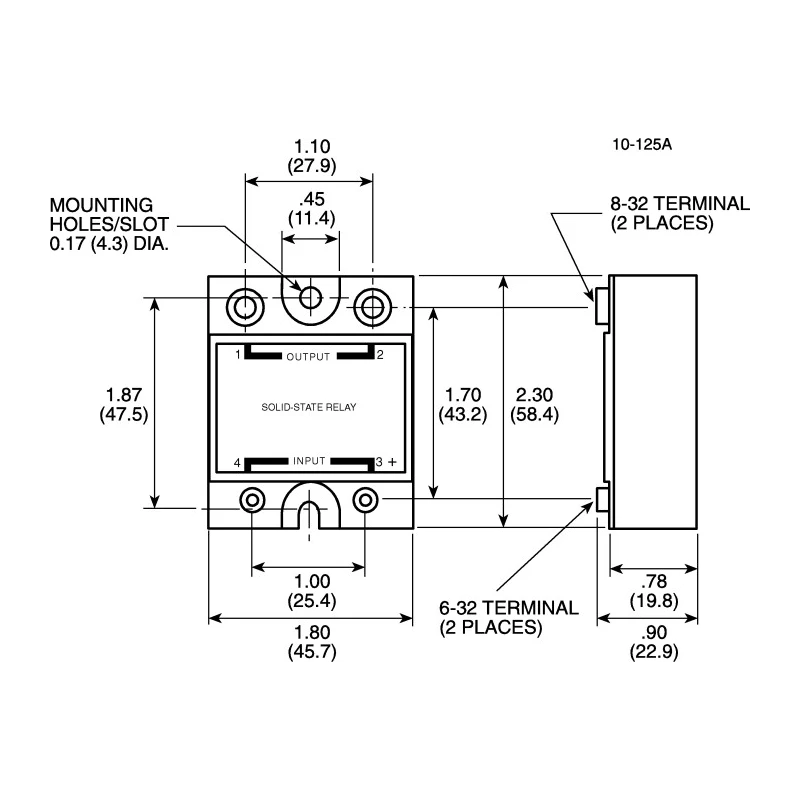

Operating reliably in a temperature range from -40°C to 80°C, this relay is suitable for various electrical automation and manufacturing systems. Its compact footprint with dimensions of 58.4mm length, 22.6mm width, and 23mm height makes it adaptable to space-constrained control panels. The relay's output is of SCR type, enabling efficient electrical switching with no mechanical parts that could wear out.

Applications include machine automation, motor controllers, HVAC systems, and other industrial equipment requiring robust, noise-free relay switching. This product complies with CSA, RoHS, and UR standards, assuring quality and safety.

Enables high-power circuit control with 75A maximum load current. Operates within a load voltage range of 24V to 280Vrms. Control voltage operates between 3V and 32V for reliable activation. Features zero cross switching to reduce electrical noise during operation.

Panel mount type with screw terminals for secure and simple wire connection. Constructed with flame-retardant housing for enhanced safety under fire conditions. Equipped with anti-rotation barriers to ensure stable mounting without twisting.

Compact size with dimensions of 58.4mm (L) x 22.6mm (W) x 23mm (H). Designed to operate reliably between -40°C to 80°C ambient temperature range. Output type is SCR, providing efficient and fast switching without mechanical wear.
