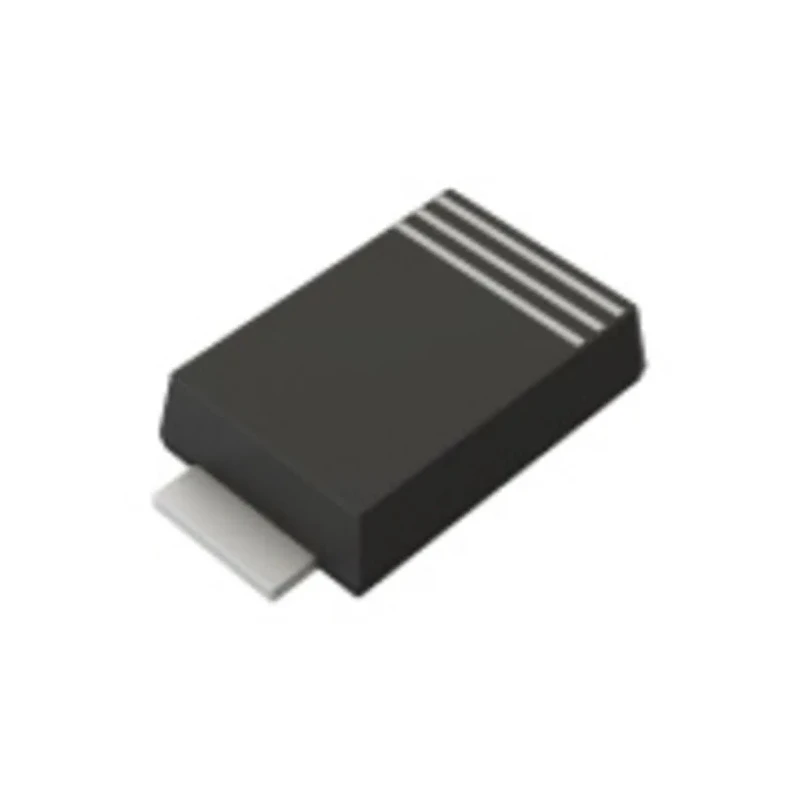

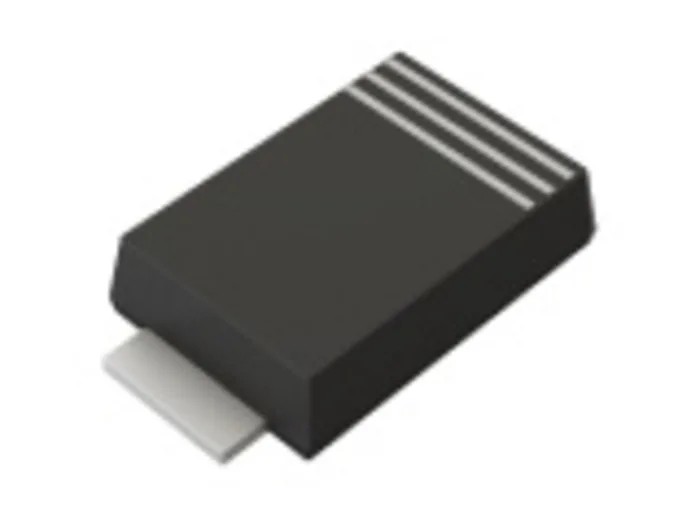

ROHM 60 V 3 A Schottky Diode Single Rectifier 2-Pin Surface Mount SOD-128 RB055LAM-60TR

ROHM RB055LAM-60TR is a high-reliability Schottky diode designed for use in electronic circuits requiring efficient rectification with low forward voltage drop. This surface mount diode is housed in a compact SOD-128 package measuring 3.9mm in length, 2.7mm in width, and 1.05mm in height, making it suitable for space-constrained applications.

Its maximum continuous forward current rating of 3A allows it to handle moderate current loads while the peak repetitive reverse voltage of 60V ensures effective blocking of reverse voltage in switching and power supply circuits. The diode is optimized for fast switching and minimal power dissipation with a maximum forward voltage of just 680mV.

The RB055LAM series offers excellent robustness with a peak non-repetitive surge current tolerance of 50A, ensuring reliability under transient surges commonly encountered in power electronics. The device operates effectively in harsh environments, with an operating temperature range from -55°C to 150°C.

This diode is configured as a single Schottky barrier rectifier with a 2-pin design, ideal for surface mounting technologies, making it well suited for automated PCB assembly lines in industrial, consumer electronics, automotive, and power management applications.

This diode is configured as a single Schottky barrier rectifier suitable for low forward voltage operation. It supports a peak non-repetitive forward surge current of 50A. The device operates reliably across a temperature range from -55°C to 150°C.

Compact SOD-128 package dimensions are 3.9mm length, 2.7mm width, and 1.05mm height. It has a low maximum forward voltage of 680mV to minimize power loss. The diode features a peak reverse current of 70 microamperes. Manufactured in Japan ensuring high quality and reliability.

ROHM’s RB055LAM-60TR Schottky diode is ideal for use in power supply rectification, voltage clamping, free-wheeling diode applications, and any circuits that require efficient, fast switching components. Its robust electrical characteristics and compact size make it a reliable choice for industrial and commercial electronic designs.
