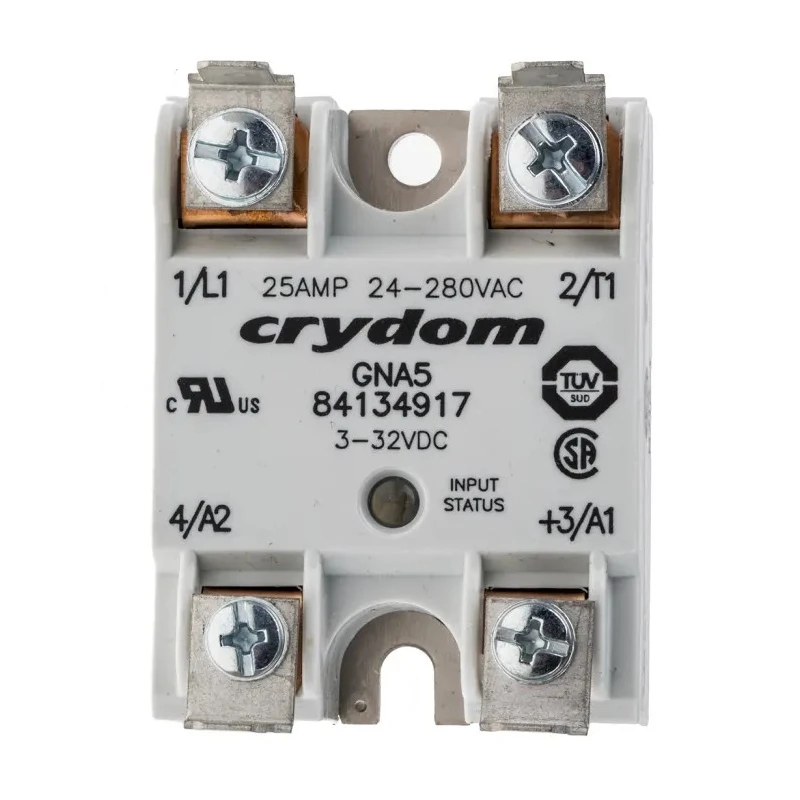

Crydom Solid State Relay, Panel Mount, 25 A Load Current, 280 V AC Load, 32 V DC Control GNA5
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 57.3mm |
| Length | 44.5mm |
| Model | GNA5 |
| Mount Type | Panel |
| Output type | Triac |
| Series | GNA5 |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Zero Voltage Turn-On Switching |
| Maximum Load Current | 25A |
| Standards/Approvals | CE, RoHS |
| Maximum Load Voltage | 280V ac |
| Minimum Load Voltage | 24V ac |
| Minimum Control Voltage | 3V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 0.1mArms |
| Crouzet Solid State Relay, 25 A Load, Panel Mount, 280 V Load, 32 V ControlBrand | Crouzet |
Key Features
- Rated maximum load current of 25 Amps ensures robust performance.
- Suitable for panel mounting with SEMS screw terminals for easy installation.
- Operates with zero voltage turn-on switching for reduced electrical noise.
- Wide control voltage range from 3 V DC minimum to 32 V DC maximum control input.
- Compact dimensions of 44.5 mm length and 57.3 mm height enable space-saving design.
- Operates reliably at temperatures from -40°C up to 80°C at maximum rating.
- Low off-state leakage current of 0.1 mArms minimizes power loss in off mode.
- Capacitance rated at 8 pF suitable for AC resistive loads with triac output type.
Product Description
Crydom GNA5 series solid state relay is a high-quality panel mount SSR designed to switch AC resistive loads with a rated current of 25 Amps and maximum load voltage of 280 V AC. The relay features a DC control voltage input range from 3 V to 32 V, enabling precise control in automated electrical systems.
Its zero voltage turn-on switching function significantly reduces electrical noise and interference, making it suitable for use in sensitive industrial and HVAC environments. The relay employs improved SEMS screw and washer terminals ensuring reliable connections and ease of installation.
The compact housing measures 44.5 mm in length and 57.3 mm in height, and the device is rated for operation at temperatures from -40°C to 80°C, suitable for harsh industrial conditions. Off-state leakage current is minimal at 0.1 mArms, and capacitance is rated at 8 pF, optimized for switching AC resistive loads via a triac output.
Manufactured in accordance with CE and RoHS directives, this Crydom relay guarantees conformity to international safety and environmental standards. It is ideal for applications in industrial automation, electrical control panels, process control systems, and HVAC equipment requiring reliable, silent switching.
Rated for 25 A maximum load current for heavy-duty switching. Panel mount with screw terminals for secure attachment. Zero voltage turn-on reduces electromagnetic noise during switching. Wide control voltage range (3 - 32 V DC) accommodating various control sources.
Compact dimensions fit constrained panel spaces. Reliable operation from -40°C to 80°C ambient conditions. Low leakage current minimizes power dissipation. Triac output type for efficient AC resistive load control. CE and RoHS certified ensuring compliance and quality assurance.
Suited for industrial, HVAC, and automation electrical systems. Explore a broad range of high-quality Solid State Relays and electrical components at EnvMart to meet your automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this solid state relay is 25 Amps.
The control voltage range for this model is from 3 V DC to 32 V DC.
It can handle a maximum load voltage of 280 V AC.
This relay uses a triac output type for switching AC resistive loads.
The dimensions of this relay are 44.5 mm in length and 57.3 mm in height.
The minimum operating temperature for this model is -40°C.
The off-state leakage current is 0.1 mArms, which minimizes power loss in off mode.
This model is designed for panel mounting with screw terminals for secure attachment.
The maximum operating temperature is 80°C.
Yes, it is manufactured in accordance with CE and RoHS directives, ensuring compliance with international standards.
The capacitance rating is 8 pF, suitable for AC resistive loads.
It utilizes zero voltage turn-on switching, which reduces electrical noise during operation.
