SMC 25 mm Pneumatic Piston Rod Cylinder Double Acting Clevis Mount Aluminium Alloy Body CD85

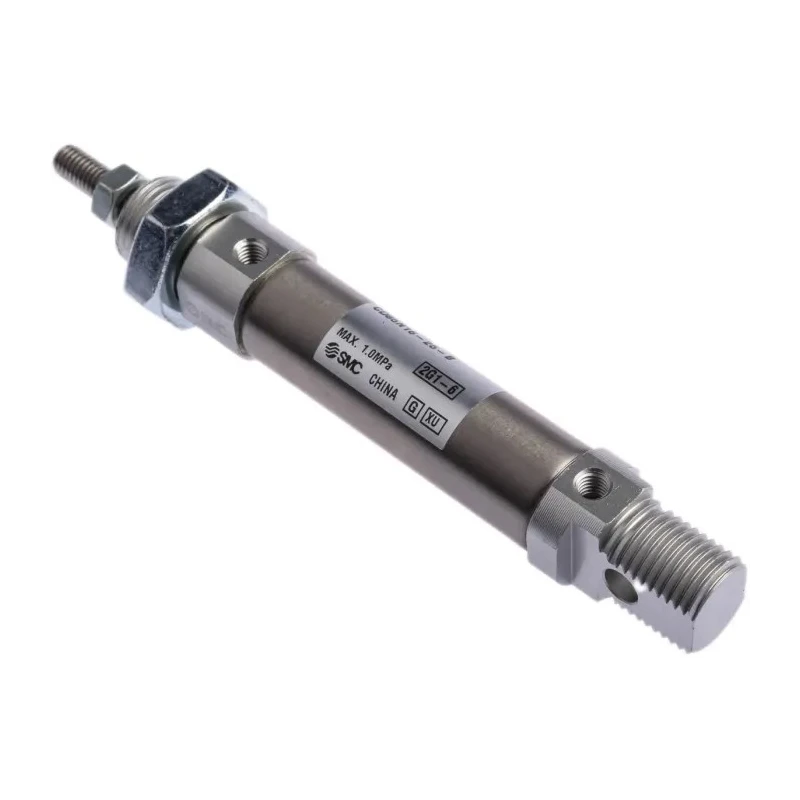

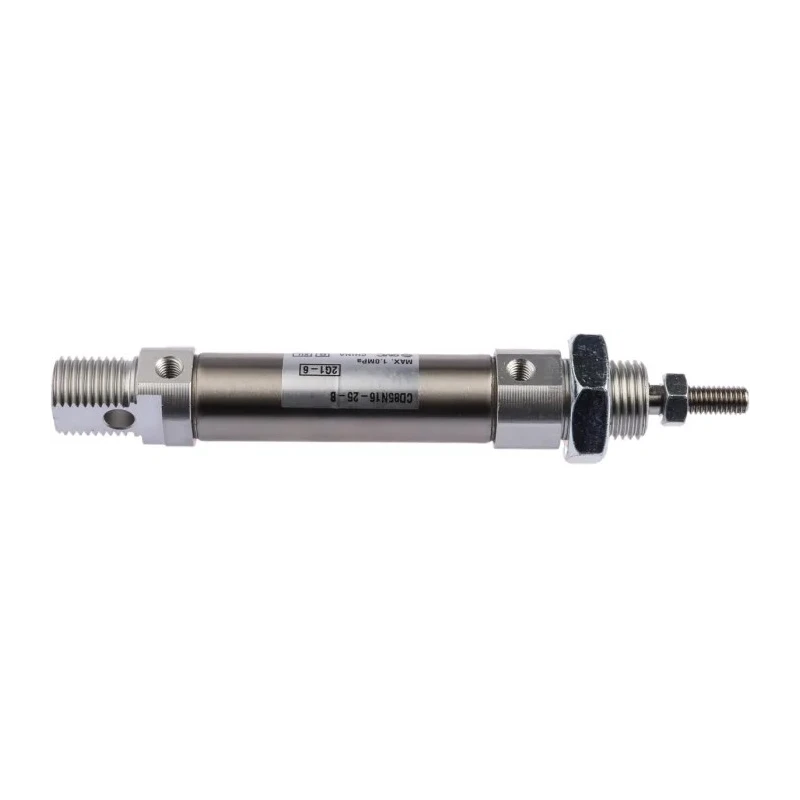

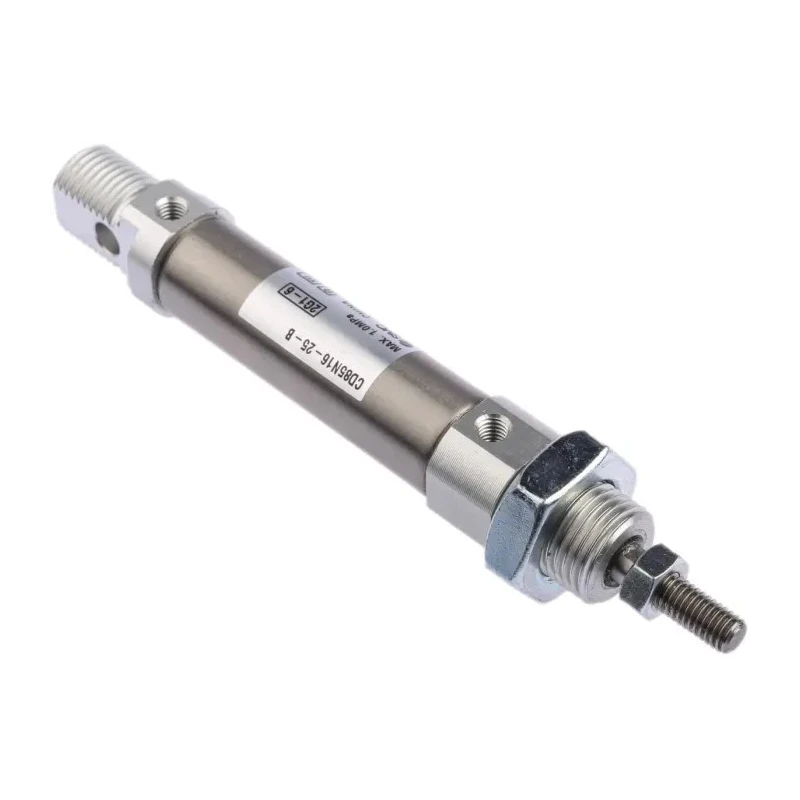

SMC CD85N16-25-B Pneumatic Piston Rod Cylinder is a compact, double acting pneumatic actuator designed for precise linear movement in industrial automation and control systems. Featuring a 25 mm stroke length and an aluminium alloy body, this cylinder is engineered for lightweight strength and compact integration.

The double acting design provides positive push and pull motions for accurate actuation. Rubber bumper cushioning reduces impact noise and vibration at the end of the piston travel, increasing longevity and operational smoothness. The piston rod is a single, male-threaded metric type (M6), allowing for versatile accessory installation and fittings.

A clevis mount enables pivoting attachment to accommodate angular movement and minor misalignment during operation. The cylinder supports a maximum piston speed of 1500 mm/s, making it suitable for rapid actuation cycles in small-format assembly lines, mechanical test rigs, or electronic inspection equipment.

Designed to withstand continuous operation up to 80°C, this pneumatic cylinder meets ISO 6432 dimensional standards for miniature cylinders, ensuring compatibility with industry-standard components.

Common applications include pick-and-place operations, valve actuation in control panels with limited space, use with precision end-effectors, and tactile probing in automated inspection systems. Its slim aluminium design suits installations where space and weight are critical factors.

Double acting cylinder with push-pull operation for reliable linear actuation. Aluminium alloy body reduces assembly mass and enables compact installations. Rubber bumper cushioning reduces noise and shock at end of stroke.

M6 male metric thread piston rod supports easy accessory attachment. Clevis mount facilitates pivoting and alignment in assemblies. Operates at maximum piston speed of 1500 mm/s for rapid cycles. Rated maximum operating temperature of 80°C for elevated temperature environments.

Complies with ISO 6432 standards for miniature pneumatic cylinders. Suitable for pick-and-place tasks and valve actuation in compact spaces. Ideal for end-effectors and tactile probing in inspection and test rigs. Explore our range of Pneumatic Cylinders and automation components at EnvMart for high-quality industrial solutions.
