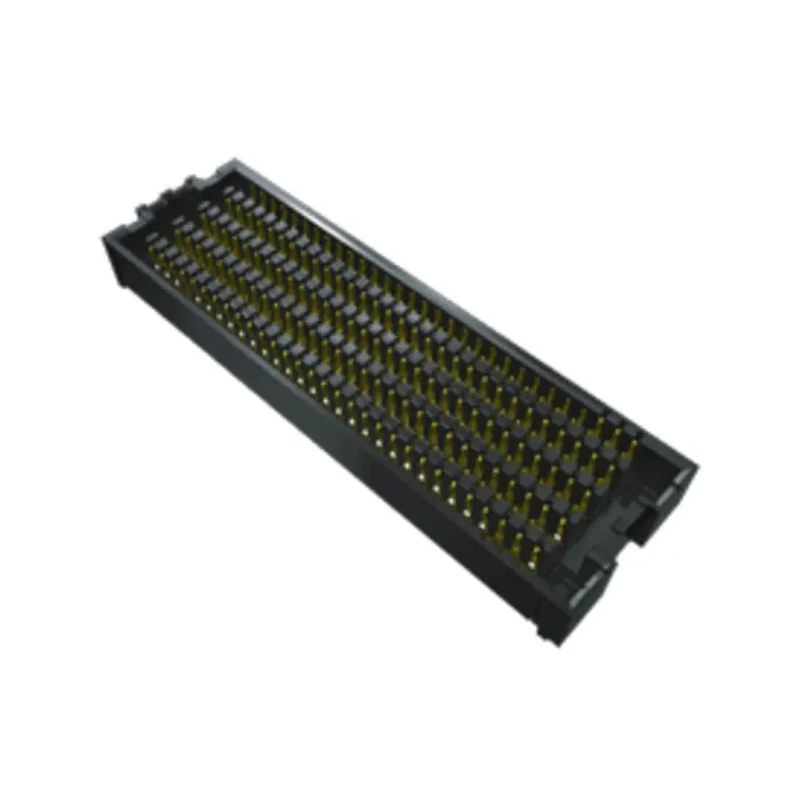

Samtec SEAF Series Straight Surface PCB Socket 500-Contact 10 Row 1.27 mm Pitch Solder SEAF-50-05.0-S-10-2-A-K-TR

Samtec SEAF-50-05.0-S-10-2-A-K-TR is a high-performance straight surface PCB socket designed for advanced electronic applications requiring reliable and high-density board-to-board connections. This socket features 500 contacts arranged in 10 rows, each with a precise 1.27 mm pitch solder termination. The robust Edge Rate® contact system enhances signal integrity, suitable for high-speed interconnects up to 28+ Gbps.

Constructed with liquid crystal polymer housing and copper contacts plated with gold, this PCB socket ensures excellent mechanical stability and corrosion resistance. It accommodates stack heights starting at 7 mm, making it adaptable for various PCB configurations. The straight orientation and surface mount type facilitate easy assembly with standard soldering techniques.

Operating voltage is rated at 240 V with a current capacity of 1.8 A, suitable for many industrial and commercial electronic applications. It maintains performance in harsh environments with operating temperatures ranging from -55°C to 125°C. The socket is dual sourced by Molex®, affirming its widespread acceptance and reliability.

Key technical highlights include the low insertion and withdrawal forces which minimize wear and reduce maintenance efforts. The solder charge termination further simplifies the manufacturing process for PCBs. This socket is ideal for use in industrial, laboratory, manufacturing, telecommunications, and embedded system applications.

This PCB Socket supports up to 500 total I/Os for complex circuit applications. The 1.27 mm x 1.27 mm pitch grid ensures precision and compact layout. Rugged Edge Rate® contact system optimizes signal integrity at high speeds.

Low insertion and withdrawal forces reduce wear and simplify handling. Solder charge termination improves processing and connection quality. Stack heights range from 7 mm to 17.5 mm to suit various board designs. Contact material is copper with gold plating for corrosion resistance and durability.

Operates reliably in temperatures from -55°C up to 125°C. Designed for board-to-board connector system with straight orientation. Supports operating voltage up to 240 V and current up to 1.8 A. Explore more industrial electronic components and PCB connectors at EnvMart for your manufacturing and assembly needs.
