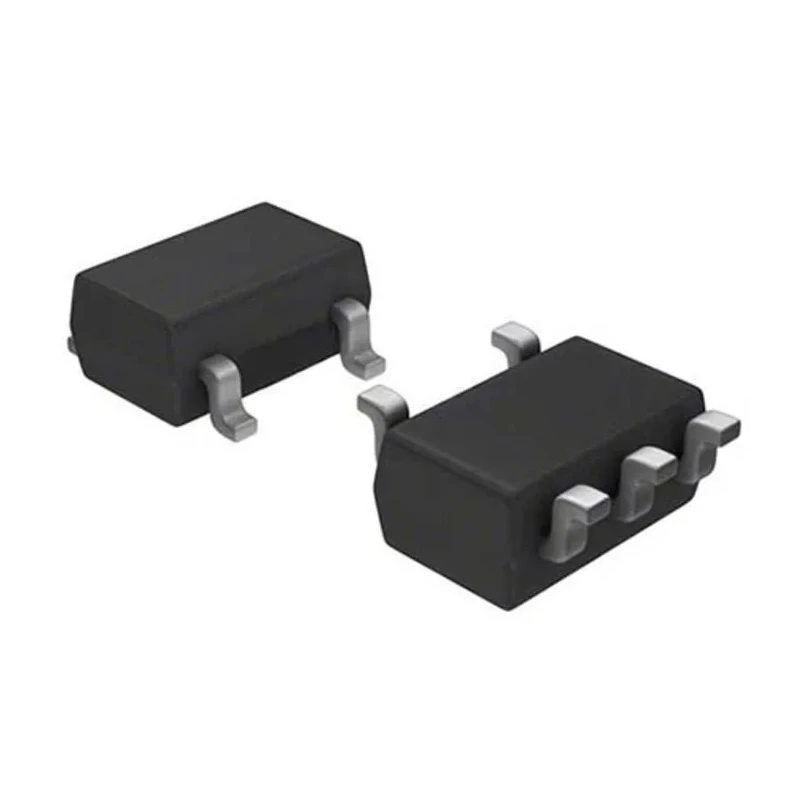

Allegro Microsystems 2 Axis Surface Hall Effect Sensor 4V to 24V Supply SOT-23W 5-Pin A1262LLHLT-T
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Allegro Microsystems |
| Response time | 32μs |
| Height | 0.95mm |
| Length | 2.98mm |
| Model | A1262LLHLT-T |
| Technology | BiCMOS, Planar and Vertical Hall Element |
| Sensor Type | Hall Effect Sensors |
| Width | 2.4mm |
| Mount Type | Surface |
| Series | A1262 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23W |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Device/Host/OTG |
| Number of axis | 2 |
| Standards/Approvals | Lead (Pb) Free, RoHS |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 4V |
| Supply Current | 4.5mA |
| Magnetic Type | Latch |
Key Features
- Provides dual independent Hall-effect switches for detecting magnetic fields on two axes.
- Operates with a supply voltage range of 4V to 24V ensuring flexible integration.
- Features a compact SOT-23W 5-pin surface mount package for space-efficient PCB design.
- Supports latch magnetic type with fast 32 microseconds response time.
- Functions reliably over a wide temperature range from -40°C to 150°C.
- Meets automotive standard AEC-Q100 and RoHS compliance, lead-free for reliability.
- Low supply current consumption of 4.5mA suitable for energy-efficient applications.
- Designed for industrial, automotive, and motion sensing applications requiring dual-axis sensing.
Product Description
Allegro Microsystems A1262LLHLT-T is a 2 Axis Surface Hall Effect Sensor designed for precise magnetic field detection with dual element Hall-effect switches integrated into a single IC.
This sensor operates over a wide supply voltage range of 4V to 24V and is housed in a compact SOT-23W 5-pin surface mount package, making it suitable for densely packed circuit boards.
The device utilizes BiCMOS technology with planar and vertical Hall elements to provide high sensitivity and accurate digital outputs. The magnetic latch type ensures stable signal output even with varying external fields.
Designed with automotive standards (AEC-Q100) compliance and RoHS lead-free manufacturing, this component is ideal for demanding industrial and automotive environments.
It exhibits a fast response time of 32 microseconds and operates efficiently with a low supply current of 4.5mA. Its operational temperature range from -40°C to 150°C accommodates harsh environments.
The compact dimensions of length 2.98mm, width 2.4mm, and height 0.95mm enable integration into space-constrained designs. Dual independent Hall-effect switches enable detection of magnetic field direction and speed measurement applications.
Wide supply voltage range from 4V to 24V enhances design flexibility. Surface mount SOT-23W package benefits high-density PCB assembly. Latch magnetic type provides stable digital output signals. Automotive grade with AEC-Q100 certification and RoHS compliance.
Fast 32μs response time supports dynamic sensing needs. Low 4.5mA supply current ensures power efficiency. Operates reliably between -40°C to 150°C temperature range. Compact small form factor dimensions suitable for varied applications.
This sensor is widely used in automotive electronics, industrial motion control, speed and direction sensing, and other precision magnetic sensing applications. Explore more related components and products in Allegro Microsystems sensor offerings and other semiconductor IC devices at EnvMart.
Explore more products in our Motion Sensor ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of 4V to 24V, providing flexibility for various applications.
The sensor has compact dimensions of 2.98mm in length, 2.4mm in width, and 0.95mm in height, making it suitable for space-constrained designs.
It features a fast response time of 32 microseconds, allowing for dynamic sensing applications.
This model is designed for surface mounting, housed in a SOT-23W package for efficient PCB assembly.
It operates reliably over a wide temperature range from -40°C to 150°C, accommodating harsh environments.
The A1262LLHLT-T uses a latch magnetic type, providing stable digital output signals even with varying external magnetic fields.
It has a low supply current consumption of 4.5mA, making it suitable for energy-efficient applications.
This sensor meets automotive standard AEC-Q100 and is RoHS compliant, ensuring it is lead-free and suitable for automotive applications.
It features dual independent Hall-effect switches for detecting magnetic fields on two axes, enabling direction and speed measurement.
This model utilizes BiCMOS technology with planar and vertical Hall elements for high sensitivity and accurate digital outputs.
It is designed for industrial, automotive, and motion sensing applications that require dual-axis sensing capabilities.
The sensor is equipped with 5 pins, facilitating its integration into various electronic circuits.
