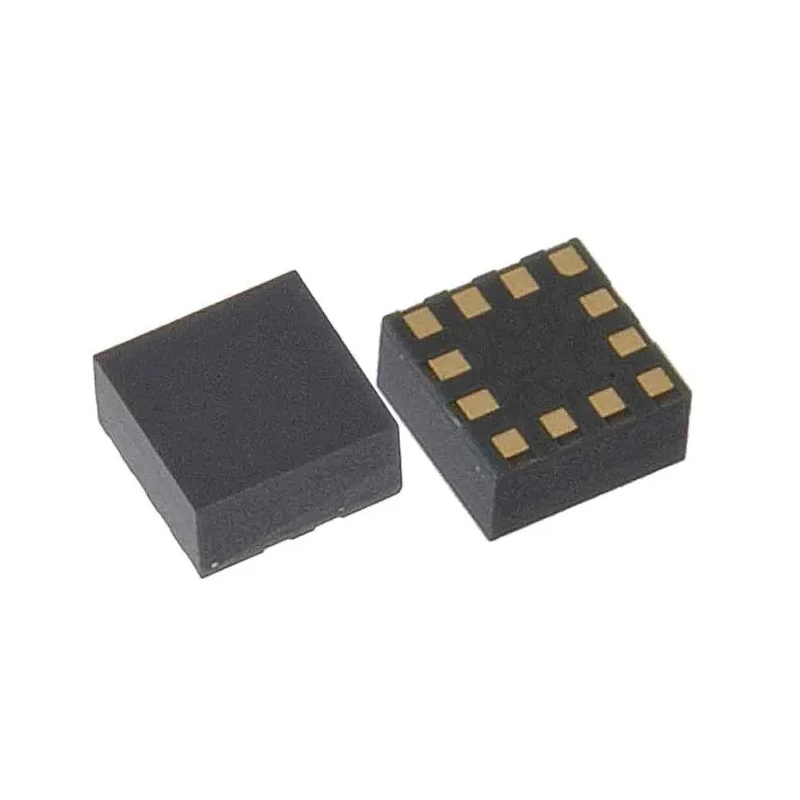

STMicroelectronics 3 Axis Surface Digital Accelerometer 1.62 V to 3.6 V, I2C/SPI Interface, LGA 12-Pin LIS2DTW12TR
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | STMicroelectronics |
| Height | 0.7mm |
| Length | 2mm |
| Model | LIS2DTW12TR |
| SENSITIVITY | 7.81mg/digit |
| Technology | Digital |
| Sensor Type | Temperature Sensor, Accelerometer |
| Width | 2mm |
| Mount Type | Surface |
| Series | LIS2DTW12 |
| Maximum Operating Temperature | 85°C |
| Package Type | LGA |
| Minimum Operating Temperature | -40°C |
| Number of axis | 3 |
| Interface Type | I2C/SPI |
| Pin Count | 12 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 1.62V |
| Supply Current | 90μA |
| Maximum Frequency Response | 1600Hz |
| Minimum Frequency Response | 1.6Hz |
| Very low noise | down to 1.3 mg RMS in low-power mode |
Key Features
- Offers ultra-low power consumption with 50 nA in power-down mode.
- Features very low noise down to 1.3 mg RMS in low-power mode for precise detection.
- Includes an embedded temperature sensor with typical accuracy of 0.8 °C.
- Supports multiple operating modes and bandwidths to optimize performance.
- Provides ±2g to ±16g full scale acceleration range selections.
- High-speed I²C and SPI digital output interface for versatile connectivity.
- Capable of single data conversion on demand and 16-bit accelerometer data output.
- Contains 32-level FIFO and 10000 g high shock survivability for robustness.
Product Description
STMicroelectronics LIS2DTW12TR is a 3-axis digital accelerometer designed for surface mounting in compact applications, providing precise motion and temperature sensing. Operating with a supply voltage range from 1.62 V to 3.6 V, it supports both I2C and SPI interfaces in a 12-pin LGA package measuring 2 mm by 2 mm by 0.7 mm.
This sensor features ultra-low power consumption with only 50 nA in power-down mode and below 1 μA in active low-power mode, making it highly efficient for battery-operated devices.
The device includes a low-noise accelerometer with noise levels down to 1.3 mg RMS in low-power mode, achieving high sensitivity with 7.81 mg/digit resolution and selectable full-scale ranges of ±2g, ±4g, ±8g, or ±16g.
An embedded temperature sensor with typical accuracy of 0.8 °C provides additional environmental monitoring capability integrated within the device. Multiple operating modes allow adaptation to different bandwidth requirements and power-saving settings, including Android stationary and motion detection features.
The accelerometer outputs 16-bit acceleration and 12-bit temperature data with single data conversion on demand and incorporates a 32-level FIFO buffer to assist in efficient data reading.
The LIS2DTW12TR is designed for high robustness, featuring 10000 g high shock survivability and a wide operating temperature range from -40 °C to 85 °C, suitable for demanding industrial, consumer electronics, and automotive applications.
Ultra-low current consumption enhances battery life in portable devices. Digital output interfaces ensure compatibility with modern microcontrollers and processors. Compact footprint is ideal for space-constrained designs.
High shock survivability supports reliability in rugged environments. Wide operating temperature range broadens application scenarios. Integrated temperature sensing adds environmental detection capability. Multiple full-scale settings optimize sensitivity versus range trade-offs.
Low noise performance supports accurate motion detection and control. This product is made in the Philippines and provides new condition assurance. Explore more semiconductor components and Motion Sensor ICs at EnvMart for diverse electronics and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LIS2DTW12TR operates with a supply voltage range from 1.62 V to 3.6 V.
This accelerometer provides selectable full-scale acceleration ranges of ±2g, ±4g, ±8g, or ±16g.
It supports both I2C and SPI digital output interfaces for versatile connectivity.
The accelerometer features very low noise levels down to 1.3 mg RMS in low-power mode.
The maximum frequency response of the LIS2DTW12TR is 1600 Hz.
This model has a height of 0.7 mm and a footprint of 2 mm by 2 mm.
The embedded temperature sensor has a typical accuracy of 0.8 °C.
The LIS2DTW12TR operates within a temperature range of -40 °C to 85 °C.
In power-down mode, it consumes only 50 nA, making it highly efficient.
The sensitivity of the accelerometer is 7.81 mg/digit.
This model has a pin count of 12 and is packaged in an LGA type.
It features 10000 g high shock survivability, enhancing its robustness for demanding applications.
