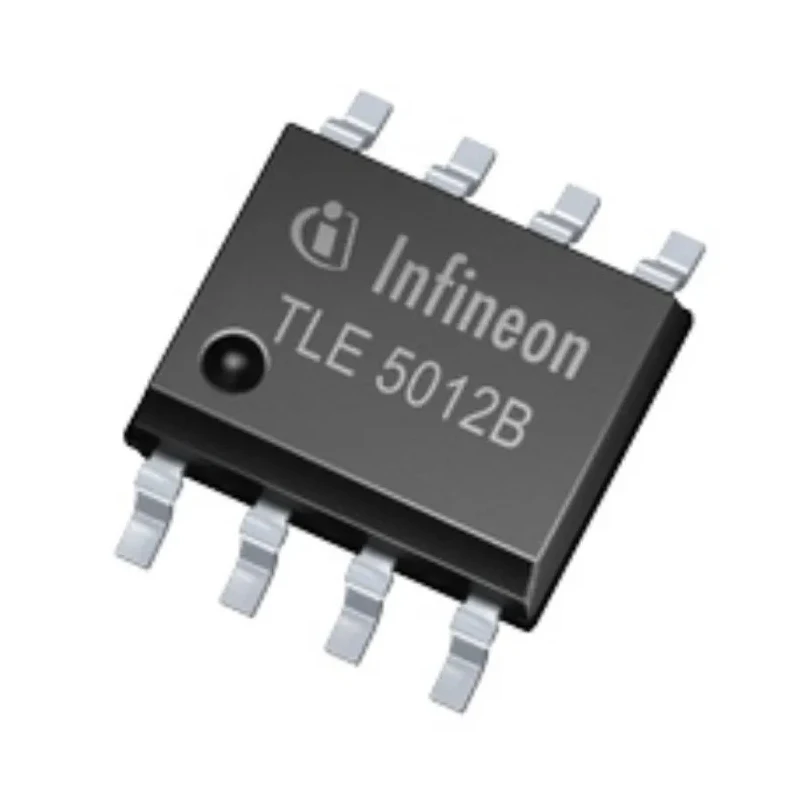

Infineon 2 Axis Surface Digital Inclinometer Sensor 3 V to 5.5 V IIF Interface DSO 8-Pin TLE5012BE1000XUMA1

Infineon TLE5012BE1000XUMA1 is a high-precision 2 Axis Surface Digital Inclinometer Sensor designed for accurate detection of magnetic field orientation. The device uses integrated Giant Magneto Resistance (iGMR) elements to measure sine and cosine components, enabling 360° angle detection with high resolution and accuracy.

The sensor operates within a supply voltage range of 3 V to 5.5 V and communicates through an IIF (Integrated Interface for Inclinometer Function) that is SPI-compatible. It provides both a synchronous serial communication (SSC) and Pulse-Width Modulation (PWM) output to transmit absolute angle values and additional parameters.

Encapsulated in a compact 8-pin DSO surface mount package, the device supports industrial and automotive applications requiring a broad operating temperature range of -40°C to 150°C. The sensor has a supply current of 16mA and complies with the automotive standard AEC-Q100, ensuring reliable performance under demanding conditions.

Key specifications include a maximum frequency response of 4.3 MHz, a minimum frequency response of 3.8 MHz, and high-resolution angle output with 15-bit absolute angle and 16-bit sine/cosine values. Its integrated autocalibration algorithm ensures sustained precision over a long lifetime.

Applications range from motion sensing in electronic components, automotive systems, industrial machinery, manufacturing automation to positioning and control systems requiring accurate tilt and angle measurements.

The sensor measures magnetic field orientation using integrated iGMR technology. Provides absolute 0-360° angle measurement with high-resolution bit representation. Bi-directional SSC and PWM-compatible data interface support enhance versatility.

Meets automotive standard AEC-Q100 for robustness and reliability in harsh environments. Compact DSO 8-pin surface mount package facilitates easy PCB integration. Wide operating temperature range from -40°C to 150°C suits industrial applications.

Low supply current of 16mA conserves power in embedded systems. Ideal for use in automotive, industrial positioning, and motion detection systems. Includes internal autocalibration algorithm for accuracy over device lifetime.

This sensor aligns with industry requirements for digital inclinometer accuracy and reliability. Explore the Electronics & Electricals category and Motion Sensor ICs subcategory at EnvMart to find additional sensor IC solutions for diverse industrial and automotive applications.
