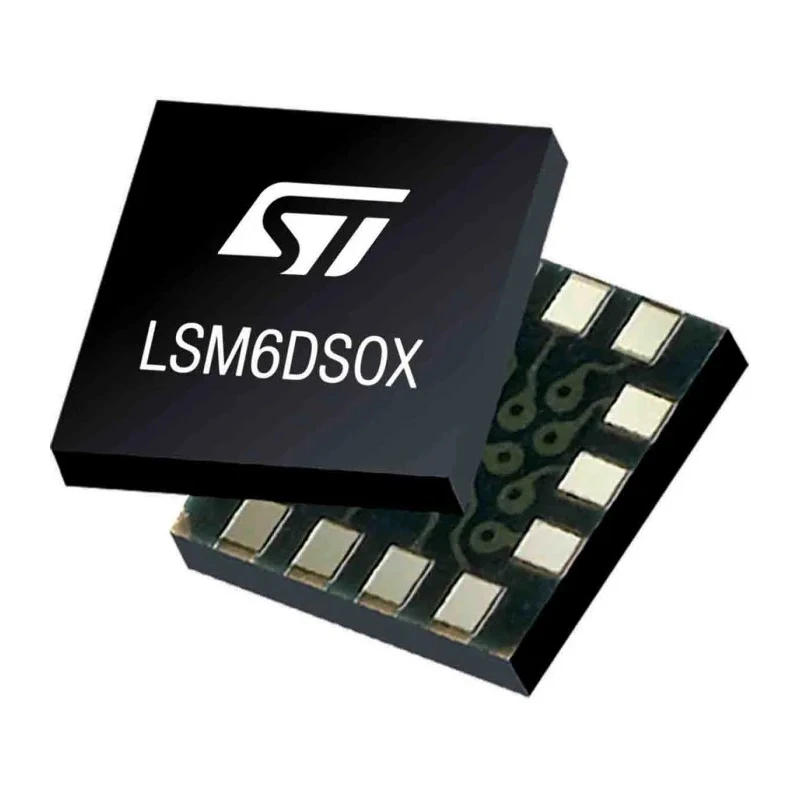

STMicroelectronics 3 Axis Digital Surface Accelerometer I2C SPI LGA 14-Pin 1.71 V to 3.6 V LSM6DSOXTR

STMicroelectronics LSM6DSOXTR is a high-performance 3-axis digital surface accelerometer integrated with a 3D digital gyroscope featuring digital interfaces I2C and SPI, housed in a 14-pin Land Grid Array (LGA) package operating at supply voltages from 1.71 V to 3.6 V. It provides precise motion sensing with a full-scale acceleration range selectable among ±2, ±4, ±8, and ±16 g, and angular rate ranges from ±125 to ±2000 degrees per second (dps), suitable for applications in consumer electronics, industrial, and automotive markets.

The device consumes a low supply current of 550μA in high-performance mode, enabling energy-efficient always-on motion sensing, which is ideal for wearable and portable electronic devices. It supports a wide frequency response from 1.6 Hz to 6664 Hz and operates reliably over a broad temperature range of -40°C to +85°C, assuring performance stability in harsh environmental conditions.

LSM6DSOXTR includes embedded features for Electronic Image Stabilization (EIS) and Optical Image Stabilization (OIS), offering configurable signal processing paths for improved motion data accuracy. Additionally, its auxiliary SPI interface supports both accelerometer and gyroscope configuration, enhancing flexibility in complex systems.

Manufactured using specialized micromachining processes combined with CMOS IC interface technology, the sensor module guarantees robustness and stability with high mechanical shock tolerance, making it a preferred choice for system designers requiring durable and reliable motion sensors.

The compact plastic LGA package measures 2.5 mm by 3 mm with a height of 0.83 mm, facilitating easy integration onto printed circuit boards in a variety of electronic applications including IoT devices, smartphones, gaming controllers, and industrial automation.

Provides integrated 3D accelerometer and gyroscope for comprehensive motion sensing. Supports multiple full-scale ranges to adapt to different sensing requirements. Low power consumption suitable for battery-powered devices.

Wide operating temperature range ensures stability in demanding environments. Includes advanced features such as EIS and OIS for enhanced motion accuracy. Robust mechanical design for high shock tolerance and long-term reliability.

Compact 14-pin LGA package for space-constrained applications. Compatible with major operating systems and supports dynamic data batching. This sensor IC is extensively used in industrial applications, consumer electronics, automotive systems, and IoT devices requiring precise motion detection and control.
