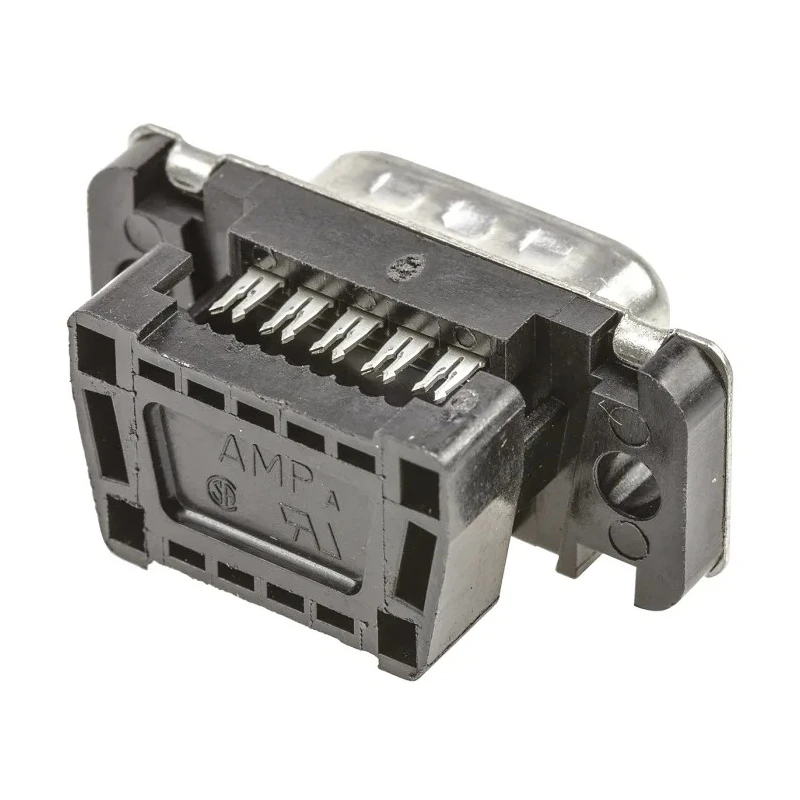

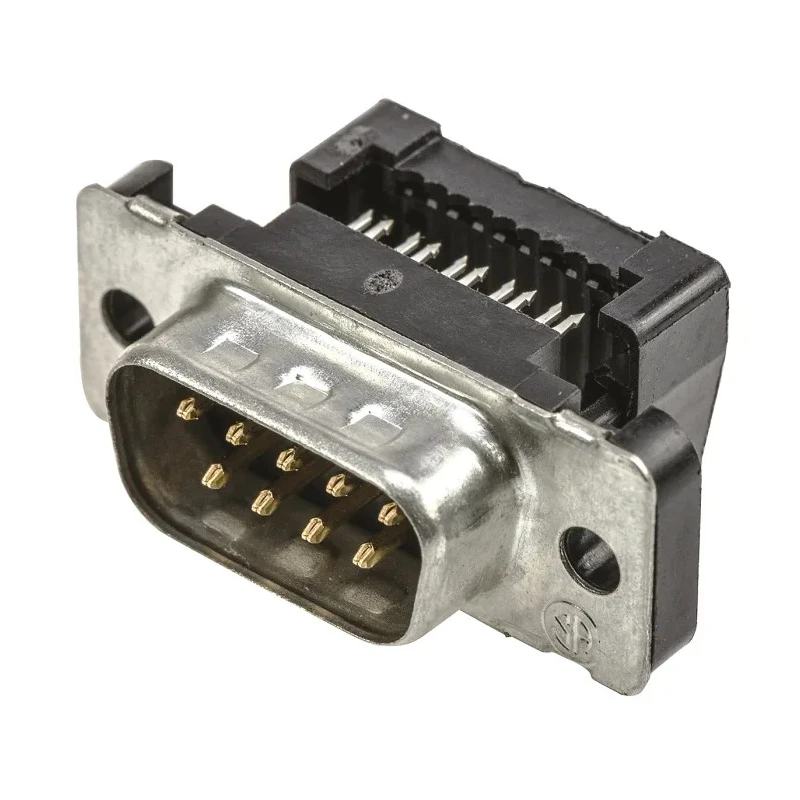

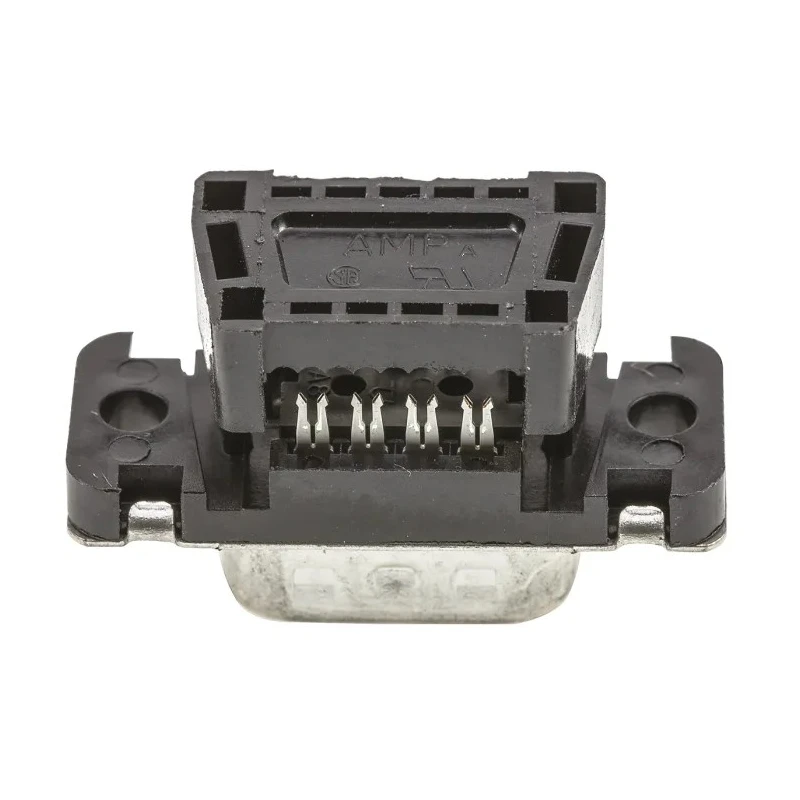

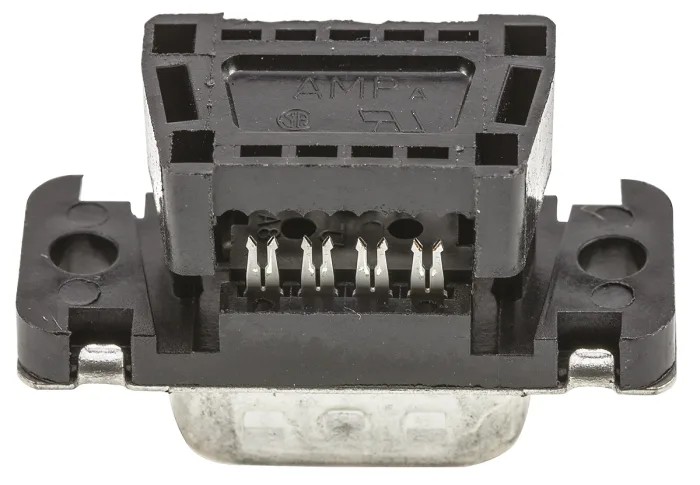

TE Connectivity Amplimite HDF-20 9 Way Right Angle 2.76 mm Pitch Cable D-Sub Connector Male 1658613-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 30V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1.25A |
| Mount Type | Cable |
| Housing Material | Steel |
| Contact Material | Phosphor Bronze |
| Series | Amplimite HDF-20 |
| Termination Type | IDC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.76mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
Key Features
- Supports 1.25A current for efficient signal transmission.
- Designed with a right-angle orientation suitable for cable mount applications.
- Features a steel housing material ensuring durability.
- Phosphor bronze contacts plated with gold over nickel resist corrosion.
- Suitable for operating temperatures from -55°C to 105°C.
- Terminated using IDC method for ease of assembly.
- Compatible with 28 AWG and 26 AWG flat ribbon cables with 1.27 mm centres.
- Part of the Amplimite HDF-20 low profile series ensuring compact design.
Product Description
TE Connectivity 1658613-4 Amplimite HDF-20 9 Way Right Angle Cable D-Sub Connector Male is a high-quality electronic component designed for secure and reliable connections in various industrial and electronic applications. This connector features a 2.76 mm pitch and is engineered for cable mount use with a right-angle orientation, facilitating efficient routing and mounting in constrained spaces.
The housing is constructed of sturdy steel, providing excellent mechanical protection, while the contacts are made of phosphor bronze with gold over nickel plating to ensure excellent conductivity and resistance to corrosion. The connector supports a current rating of 1.25A and a voltage rating of 30V, making it suitable for signal and low power applications.
Designed within the Amplimite HDF-20 low profile series, this connector supports flat ribbon cables with 28 AWG and 26 AWG solid and stranded conductors spaced on 1.27 mm centres. The insulation displacement contact (IDC) termination type enables quick and secure cable termination without soldering.
The operating temperature range of -55°C to 105°C ensures dependable performance in harsh environments commonly encountered in industrial, manufacturing, and electronic equipment applications.
Additional attributes include compatibility with optional strain relief and locking hardware for enhanced durability and security. This connector mates with related HD-20 Board Mount, HDP, and HDE D-Sub Connectors, supporting various configurations in industrial and laboratory settings.
Supports 1.25A current for efficient signal transmission. Designed with a right-angle orientation suitable for cable mount applications. Features a steel housing material ensuring durability. Phosphor bronze contacts plated with gold over nickel resist corrosion.
Suitable for operating temperatures from -55°C to 105°C. Terminated using IDC method for ease of assembly. Compatible with 28 AWG and 26 AWG flat ribbon cables on 1.27 mm centres. Part of the Amplimite HDF-20 low profile series ensuring compact design.
Offers a voltage rating of 30V for safe operation.
This TE Connectivity Amplimite HDF-20 connector is ideal for use in industrial electronics, control systems, manufacturing equipment, and other applications requiring reliable, high-density cable interconnections. Browse EnvMart's extensive catalog for more TE Connectivity electronic components and connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a current rating of 1.25A for efficient signal transmission.
The voltage rating for this model is 30V, making it suitable for low power applications.
It is suitable for operating temperatures ranging from -55°C to 105°C, allowing for use in harsh environments.
This model uses an insulation displacement contact (IDC) termination type for ease of assembly without soldering.
The contacts are made of phosphor bronze and are plated with gold over nickel, while the housing is constructed from steel.
The pitch for this connector is 2.76 mm, which is designed for compact connections.
It is compatible with 28 AWG and 26 AWG flat ribbon cables with 1.27 mm centres.
This connector features a right-angle orientation, making it suitable for cable mount applications in tight spaces.
This model has 9 contacts, designed for reliable connections in various applications.
Yes, optional strain relief and locking hardware are available to enhance durability and security.
It is part of the Amplimite HDF-20 low profile series, ensuring a compact design for various applications.
The country of origin for this connector is India.
