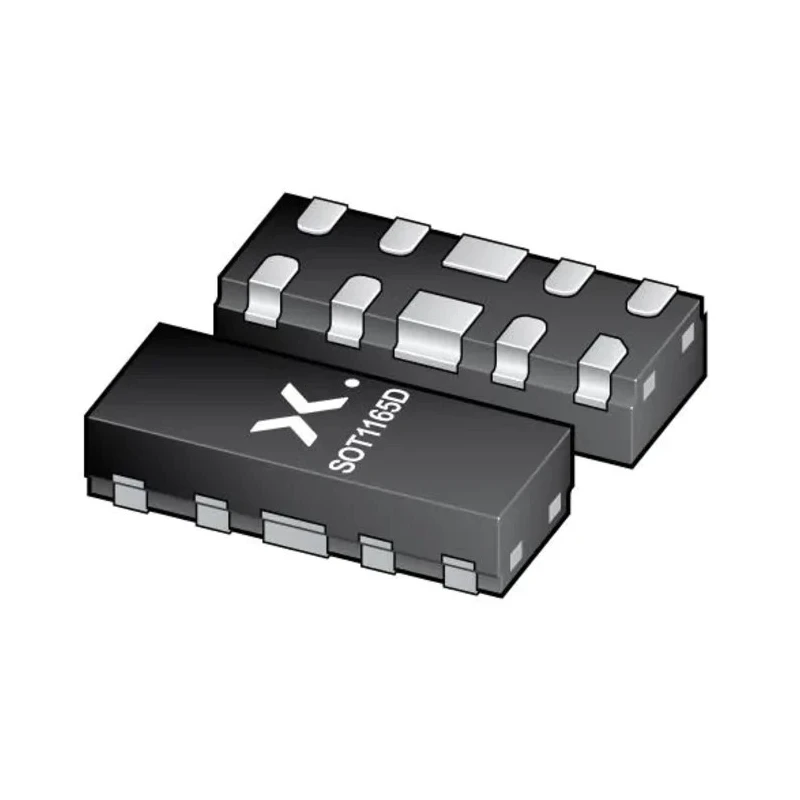

Nexperia Bi-Directional ESD Protection Diode 10-Pin DFN2510D PESD4USB5B-TTSX

Nexperia PESD4USB5B-TTSX Bi-Directional ESD Protection Diode, 10-Pin DFN2510D is engineered to safeguard sensitive electronic circuits from electrostatic discharge, particularly for high-speed interfaces such as Super Speed USB 3.2, HDMI, DisplayPort, eSATA, LVDS, and GMSL Serializer/Deserializer. Its bi-directional design provides reliable protection in both directions, ensuring consistent operation in demanding environments.

The diode features a minimum breakdown voltage of 6V and a maximum reverse stand-off voltage of 5V, allowing robust transient voltage suppression. The compact DFN2510D package has a 10-pin layout, facilitating integration into densely packed PCBs and supporting automated optical inspection via side-wettable flanks.

Provides bi-directional ESD protection for USB 2.0, USB 3.2, HDMI, DisplayPort, and other high-speed communication interfaces. Operates with a minimum breakdown voltage of 6V and maximum reverse stand-off voltage of 5V. Compact DFN2510D package with 10 pins optimized for AOI and side-wettable flanks.

Clamping voltage of 5.5V and maximum peak pulse current of 7A ensure effective transient suppression. Features low line capacitance (0.5 pF/channel) for minimal signal distortion. Suitable for automotive applications, meeting AEC-Q101 standard.

Wide operating temperature range from -55°C to 150°C allows versatile deployment. Outstanding system protection with deep snap-back and dynamic resistance of 0.4 Ω.

With ESD protection levels up to ±15 kV according to IEC61000-4-2 Level 4 and ISO10605 standards, this diode is ideal for infotainment systems, automotive monitors, cameras, display modules, and industrial applications. The device also provides matched signal routing with 0.5 mm trace spacing and design-friendly pass-through signal routing, making it easy to implement in advanced PCB designs.

Nexperia PESD4USB5B-TTSX is part of the PESD4USB5B-TTS series and is compliant with automotive quality requirements. Its outstanding protection and low capacitance make it suitable for protocols requiring minimal noise and distortion.

Applications include USB signal lines, HDMI ports, automotive AV monitors, display interfaces, SerDes links, and other sensitive electronic circuitry requiring stringent ESD protection.
