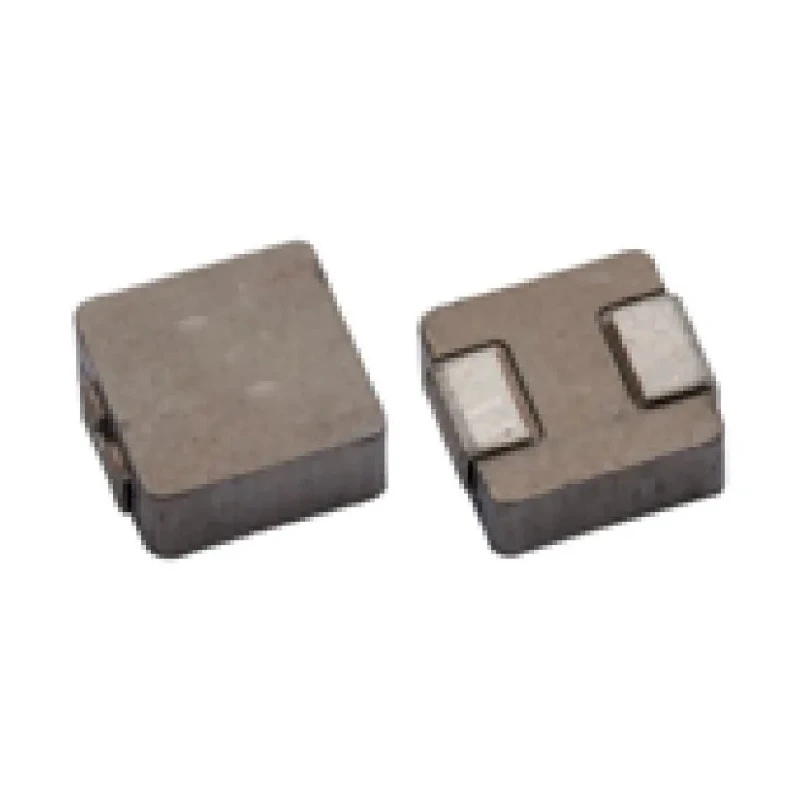

Abracon Shielded Surface Mount Inductor 2.2μH 8A Iron Core ±20% Flat Wire Winding ASPI-0630LR-2R2M-T15
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3mm |
| Length | 7.2mm |
| Model | ASPI-0630LR-2R2M-T15 |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | ASPI-0630LR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 8A |
| Pin Count | 2 |
| Maximum DC Resistance | 18.5mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Shielded SMD inductor for DC/DC converters and power supplies.
- Nominal inductance is 2.2 microhenries with ±20% tolerance.
- Rated for high current applications up to 8A IDC.
- Robust flat wire winding design ensures high reliability.
- Iron core construction for improved magnetic performance.
- Low DC resistance of only 18.5 milliohm minimizes power loss.
- RoHS compliant and operates from -55°C to 125°C.
- Tape & reel packaging for automated SMT processes.
Product Description
The Abracon ASPI-0630LR-2R2M-T15 is a high-performance shielded surface mount inductor specifically engineered for demanding electronics applications, including DC/DC converters and high current power supplies. Featuring a nominal inductance of 2.2μH with a ±20% tolerance, this inductor utilizes a flat wire winding and a robust iron core for low loss characteristics and reliable performance under continuous high current loads up to 8A.
The shielded and moulded package enhances EMI suppression, making it an excellent choice for noise-sensitive designs in notebook computers, desktop systems, servers, and industrial power supplies. Its low maximum DC resistance of just 18.5mΩ reduces heat generation while maximizing efficiency, supporting frequency applications up to 3 MHz.
This device is constructed with two pins in a compact SMD format, ensuring compatibility with reflow soldering and modern assembly processes. The physical dimensions of 7.2mm (L) x 3mm (H) x 3mm (D) allow for space-saving layouts, ideal for next-generation power solutions and automated tape & reel assembly. The product meets RoHS directives for environmental compliance and operates across an extended temperature range from -55°C to 125°C, providing stable performance in harsh conditions.
Shielded, flat wire and iron core for high reliability and reduced electromagnetic interference. High current capability supporting up to 8A continuous DC application. Low DCR helps minimize energy losses and heating. Compact SMD construction enhances board space efficiency.
RoHS-compliant and suitable for automated assembly on tape & reel. Wide operating temperature (-55°C to 125°C) expands design flexibility for industrial and commercial electronics. Precision wound for consistent performance and tight tolerance applications.
Widely used in DC/DC converters, computing, telecom, and industrial automation systems.
Typical applications include power module filtering, voltage regulation, and signal smoothing in high-density PCBs used across electronics manufacturing, laboratory instruments, renewable energy inverters, and automotive electronics.
Explore more Abracon Surface Mount Inductors and innovative passive components in EnvMart's Electronics & Electricals category for advanced power and signal solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this surface mount inductor is 2.2 microhenries (μH) with a tolerance of ±20%.
This model is rated for a maximum DC current of 8A.
The dimensions of this inductor are 7.2mm in length, 3mm in height, and 3mm in depth.
The maximum DC resistance of this inductor is 18.5 milliohms (mΩ).
This inductor operates within a temperature range of -55°C to 125°C.
The core material used in this inductor is iron, which improves its magnetic performance.
It is packaged in tape and reel format, suitable for automated surface mount technology (SMT) processes.
This inductor features a flat wire winding design, which contributes to its reliability.
Yes, this inductor is RoHS compliant, meeting environmental standards for hazardous substances.
This surface mount inductor has a pin count of 2.
This inductor belongs to the ASPI-0630LR series.
