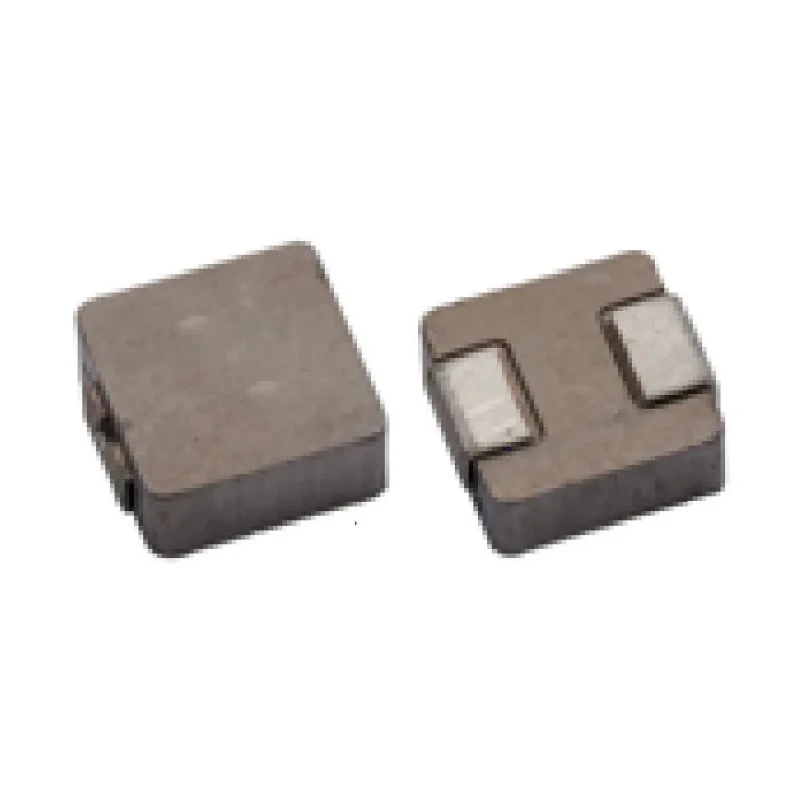

Abracon Shielded Surface Mount Inductor, 4.7μH, 5.5A Flat Wire Winding, Iron Core ASPI-0630LR-4R7M-T15
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 3mm |
| Length | 7.2mm |
| Model | ASPI-0630LR-4R7M-T15 |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | ASPI-0630LR |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Iron |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 5.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 35mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Flat Wire Winding |
Key Features
- Inductance of 4.7μH provides stable filtering for high-frequency circuits.
- Maximum DC current rating of 5.5A supports robust power delivery.
- Flat wire winding with iron core enhances efficiency and magnetic performance.
- Compact 7.2mm length, 3mm height, 3mm depth design for minimal board footprint.
- ±20% inductance tolerance offers reliable performance in varied conditions.
- Surface mount package suitable for automated assembly and reflow soldering.
- Shielded construction reduces electromagnetic interference in sensitive applications.
Product Description
Abracon ASPI-0630LR-4R7M-T15 Shielded Surface Mount Inductor is engineered for demanding applications including DC/DC converters, notebook power supplies, netbooks, desktops, servers, and other high current, low profile requirements. The shielded, flat wire winding technology and iron core deliver efficient performance by minimizing losses and supporting frequency applications up to 3MHz, making it ideal for power distribution networks in modern electronics.
This inductor features a 4.7μH inductance with a ±20% tolerance, ensuring stable filtering and energy storage within circuits. Its maximum DC current handling of 5.5A enables robust output for heavy-load applications. The iron core construction optimizes magnetic performance, while the compact form factor - measuring 7.2mm in length, 3mm in height, and 3mm in depth - ensures minimal PCB space consumption.
The surface mount packaging and tape & reel format facilitate automated manufacturing processes such as reflow soldering. The inductor is shielded to reduce electromagnetic interference, an essential characteristic for maintaining signal integrity in high-density electronics.
Operating temperature ranges from -55°C to 125°C allow reliable operation across diverse environments. Additional features include low DC resistance of 35mΩ, reliable SMD house compatibility, RoHS compliance, and flat wire winding for improved saturation and current handling.
Inductance of 4.7μH provides stable filtering for high-frequency circuits. Maximum DC current rating of 5.5A supports robust power delivery. Flat wire winding with iron core enhances efficiency and magnetic performance. Compact 7.2mm length, 3mm height, 3mm depth design for minimal board footprint.
±20% inductance tolerance offers reliable performance in varied conditions. Surface mount package suitable for automated assembly and reflow soldering. Shielded construction reduces electromagnetic interference in sensitive applications.
Ideal for industrial, computing, power electronics, and commercial projects requiring efficient inductive components. Explore related products and technologies in the Surface Mount Inductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 4.7μH with a tolerance of ±20%.
It has a maximum DC current rating of 5.5A, suitable for robust power delivery in various applications.
This model measures 7.2mm in length, 3mm in height, and 3mm in depth, making it compact for minimal PCB space consumption.
The inductor features an iron core, which enhances its efficiency and magnetic performance.
It operates within a temperature range of -55°C to 125°C, allowing reliable performance across diverse environments.
The inductor is packaged in a tape & reel format, which facilitates automated assembly and reflow soldering processes.
It features a flat wire winding construction, which improves saturation and current handling capabilities.
Yes, this model is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
The maximum DC resistance is 35mΩ, contributing to its efficiency in electrical circuits.
It is suitable for demanding applications including DC/DC converters, notebook power supplies, and high current power distribution networks.
This model has a pin count of 2, which is typical for surface mount inductors.
The shielded construction reduces electromagnetic interference, which is essential for maintaining signal integrity in sensitive applications.
