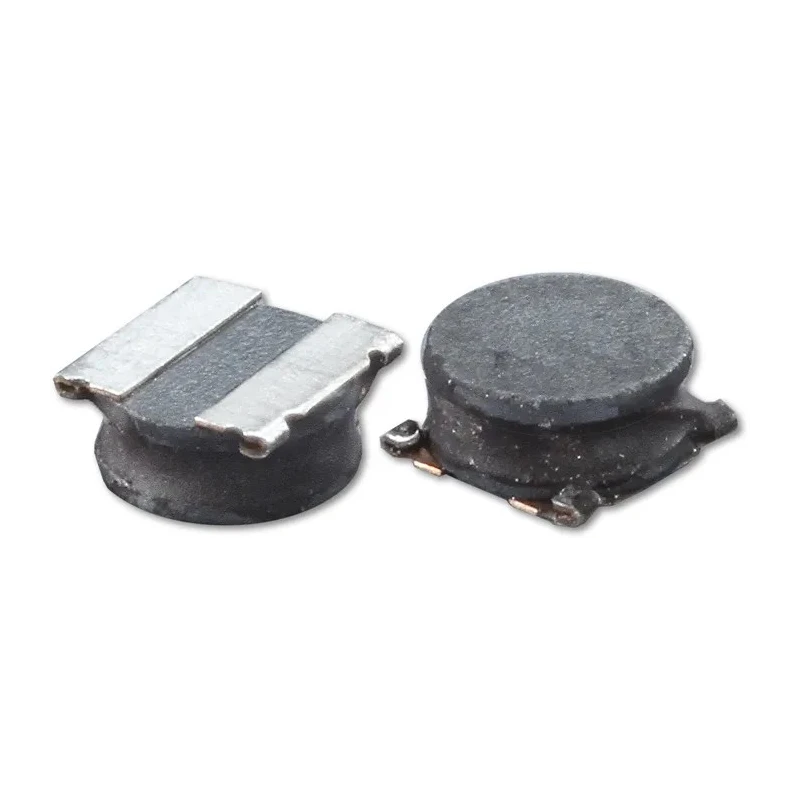

Abracon ASPI-0315FS-2R2M-T2 Shielded Surface Mount Inductor, Ferrite Core, 2.2μH Inductance, ±20%, 1.6A, Flat Wire, 3mm
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.5mm |
| Brand | Abracon |
| Height | 1.5mm |
| Length | 3mm |
| Model | ASPI-0315FS-2R2M-T2 |
| Depth | 1.5mm |
| Packaging | Tape & Reel |
| Series | ASPI-0315FS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 1.6A |
| Pin Count | 4 |
| Maximum DC Resistance | 78mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 86MHz |
| Inductor Construction | Flat Wire Winding |
| Small size and low profile | 1.5mm |
Key Features
- Designed with a ferrite core for optimal shielding and reliability.
- Delivers 2.2μH inductance with ±20% tolerance for precision electrical filtering.
- Rated for a maximum DC current of 1.6A, suitable for power applications.
- Flat wire winding construction improves efficiency and reduces resistance.
- Compact surface mount package, measuring just 3mm length and 1.5mm in height.
- Moulded and magnetically shielded for enhanced protection against mechanical stress.
- Meets RoHS standards, ensuring environmental compliance.
- Reliable performance across a wide operating temperature range, from -40°C to 125°C.
Product Description
Abracon ASPI-0315FS-2R2M-T2 Shielded Surface Mount Inductor is engineered to provide robust performance in demanding electronic applications. Featuring a ferrite core for efficient magnetic shielding, this inductor supports a wide range of power and signal conditioning tasks in modern circuit designs.
The unit offers a precise 2.2μH inductance with ±20% tolerance, flat wire winding to minimize DC resistance, and an impressive maximum DC current rating of 1.6A. Its small footprint - 3mm in length, 2.5mm diameter, and 1.5mm height - makes it ideal for compact, high-density PCBs. The surface mount design enables automated placement and reliable soldering, while its magnetic powder molding enhances protection and mechanical stability.
Designed for mobile phones, digital cameras, MP3 & 4 players, and other portable communication devices. Suits industrial and commercial electronics, including power supply circuits, signal filtering, and energy storage modules.
Offers low profile, high reliability under mechanical stress, and stable performance under RoHS reflow profiles. Flat wire winding ensures reduced DC resistance and improved rated current, boosting efficiency in critical designs.
Moulded body provides magnetic shielding and secure robustness in challenging environments.
The ASPI-0315FS-2R2M-T2 series is compatible with tape and reel packaging, facilitating high-volume automated production. The four-pin configuration, low DC resistance (78mΩ max), and high self-resonant frequency (86MHz) make it a versatile solution in both industrial and commercial sectors.
Standard operating temperature spans -40°C to 125°C, allowing this inductor to function reliably in harsh conditions. The product complies with RoHS directives, making it an environmentally sustainable option for manufacturers.
Explore more inductors and Abracon components in the Surface Mount Inductor category on EnvMart. Choose certified passive components for efficient circuitry and lasting durability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model offers an inductance of 2.2μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 1.6A.
It has a length of 3mm, a diameter of 2.5mm, and a height of 1.5mm.
The core material of this inductor is ferrite, which provides efficient magnetic shielding.
The maximum self-resonant frequency is 86MHz.
This inductor operates reliably within a temperature range of -40°C to 125°C.
It is packaged in tape and reel format, suitable for automated production processes.
The termination style is surface mount, allowing for easy integration into PCBs.
The maximum DC resistance is 78mΩ, which helps improve efficiency.
It is suitable for use in mobile phones, digital cameras, MP3 & 4 players, and power supply circuits.
Yes, it meets RoHS standards, ensuring compliance with environmental regulations.
The flat wire winding construction minimizes DC resistance and enhances efficiency in critical designs.
