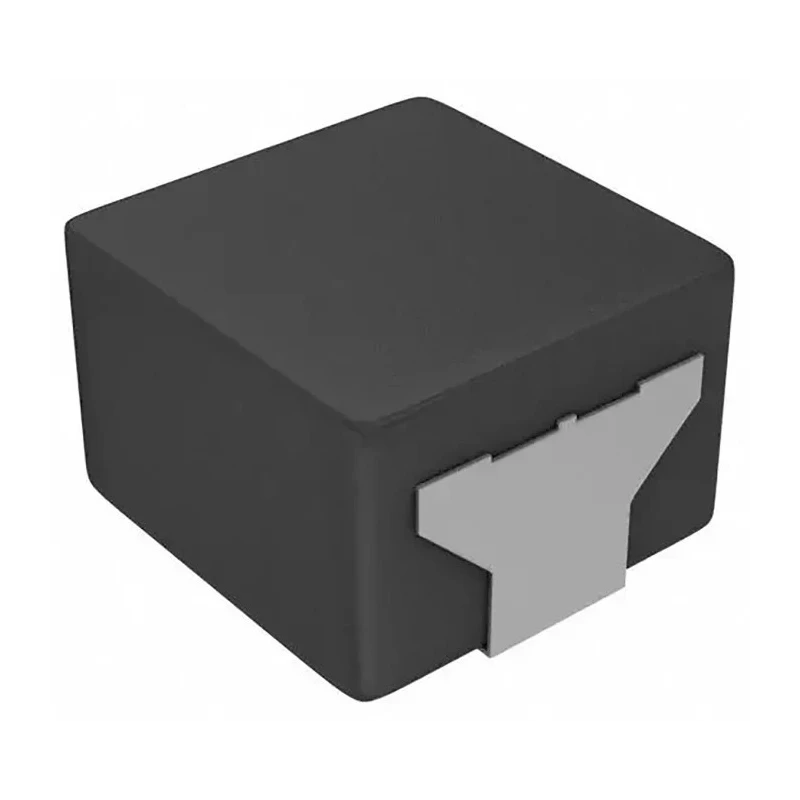

Panasonic Shielded Surface Mount Inductor, Metal Composite Core, 680 nH, 10.1 A, 0530, Automotive AEC-Q200 ETQP3M
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 3mm |
| Length | 5.5mm |
| Model | ETQP3M |
| Depth | 5mm |
| Series | ETQP3M |
| Maximum Operating Temperature | 155°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Metal Composite |
| Inductance | 680nH |
| Standards/Approvals | RoHS, AEC-Q200 |
| Package/Case | 0530 |
| Maximum DC Current | 10.1A |
| Maximum DC Resistance | 7.1mΩ |
| Termination Style | Surface Mount |
| Automotive Standard | AEC-Q200 |
Key Features
- Shielded surface mount inductor suitable for high current circuits.
- Inductance of 680 nH delivers stable performance.
- Metal composite core ensures high efficiency and low losses.
- 0530 package provides compact, low profile design.
- Automotive AEC-Q200 compliant for demanding environments.
- Maximum DC current rating of 10.1 A.
- Operates in temperatures from -55°C to 155°C.
- RoHS compliant for environmentally safe manufacturing.
Product Description
Panasonic ETQP3MR68KVP surface mount inductor combines shielded design and a metal composite core, achieving 680 nH inductance and supporting up to 10.1 A maximum DC current. With compact 0530 package, this inductor is ideal for high-performance power circuits in automotive, industrial, and electronic applications.
The ETQP3M series by Panasonic is renowned for its reliability in harsh environments, with low profile form factor and AEC-Q200 automotive standard qualification. The metal composite core offers high bias current handling while maintaining low DC resistance (7.1 mΩ), resulting in high operational efficiency.
Shielded construction ensures reduced electromagnetic interference and noise. Inductance stability across material and temperature fluctuations. Suitable for DC/DC converters, drive circuitry, and power choke coils. Robust moulded body and surface mount termination allow automated PCB mounting.
Operating temperature range of -55°C to +155°C supports extended lifecycle. RoHS and AEC-Q200 approval confirm suitability for automotive and industrial use.
Applications include noise suppression, filtering, and energy storage in automotive modules, motor drives, consumer electronics, and industrial controls. The inductor is recommended as a noise filter and is compatible with DC/DC buck and boost converters where peak current and high temperature stability are essential.
Compact and reliable, the ETQP3MR68KVP is manufactured in Japan, featuring a height of 3 mm, depth of 5 mm, and length of 5.5 mm. Shielded for high vibration resistance, it is ideal for challenging applications.
Browse more Panasonic passive components and Surface Mount Inductors on EnvMart for technical solutions across automotive, industrial, and electronics sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 680 nH.
It has a maximum DC current rating of 10.1 A.
The dimensions are a height of 3 mm, a length of 5.5 mm, and a depth of 5 mm.
This unit operates within a temperature range of -55°C to 155°C.
It features a metal composite core, which ensures high efficiency and low losses.
Yes, it is RoHS compliant and meets the AEC-Q200 automotive standard.
The inductor comes in a compact 0530 package.
The maximum DC resistance is 7.1 mΩ.
It is suitable for applications such as noise suppression, filtering, and energy storage in automotive modules and power choke coils.
This model uses surface mount termination style, allowing for automated PCB mounting.
It is manufactured in Japan.
This inductor meets the AEC-Q200 automotive standard, making it suitable for demanding environments.
