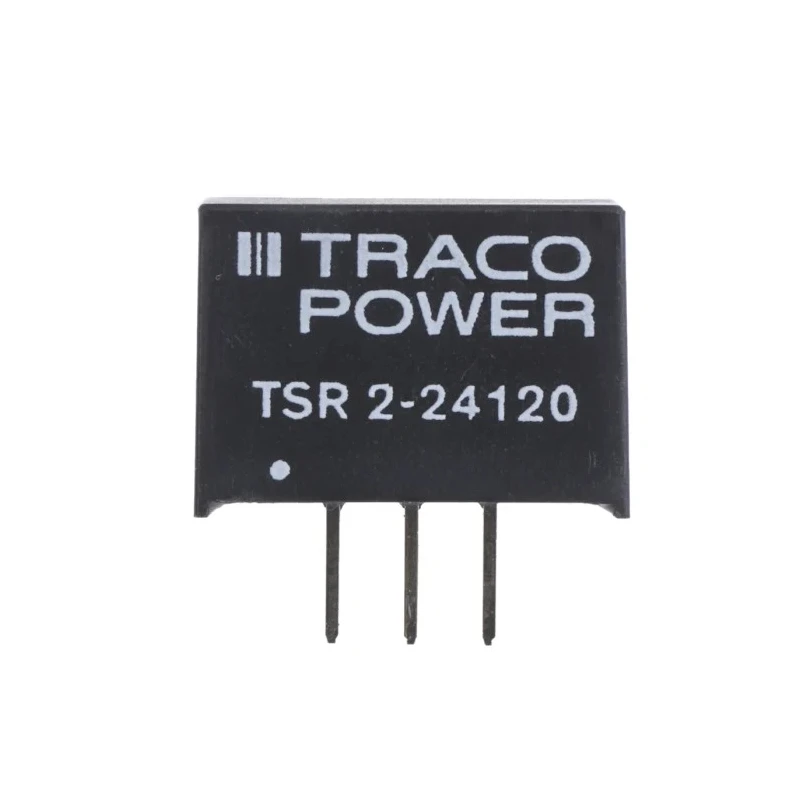

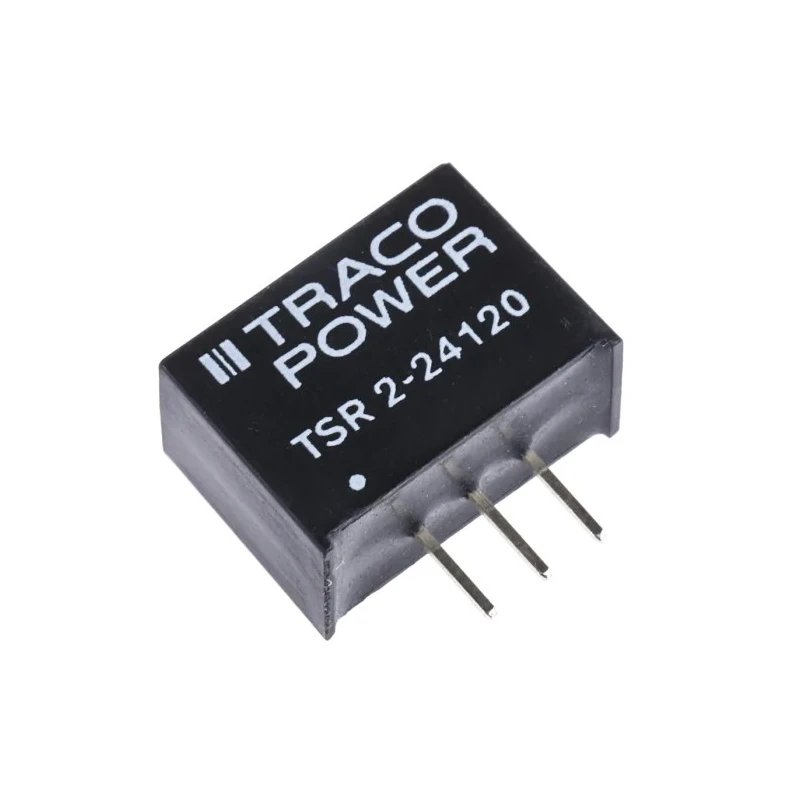

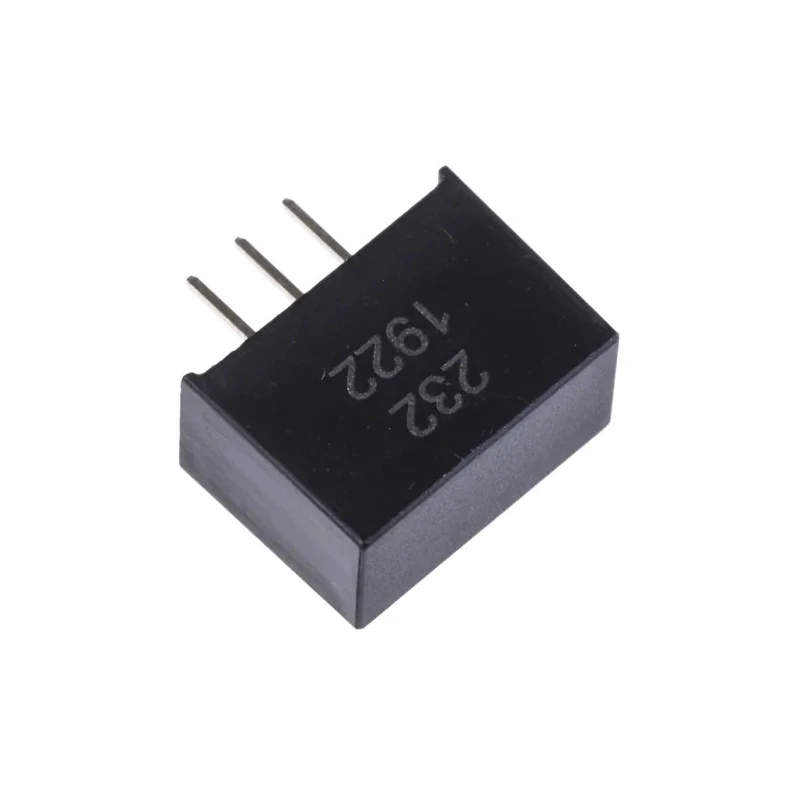

TRACOPOWER Switching Regulator Through Hole 12V DC 2A Output Current TSR 2-24120
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 95% |
| Length | 14mm |
| Model | TSR 2-24120 |
| Depth | 10.1mm |
| Gross Weight | 2.6g |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | TSR 2 |
| Output Current | 2A |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-3 |
| Load Regulation | 1 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 13520000h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Input Voltage | 36V dc |
| Line Regulation | 0.5 % |
| Standards/Approvals | UL 94 V-0, UL 60950-1, IEC/EN 60950-1, MIL-STD-810F |
| Minimum Input Voltage | 15V |
| Output Voltage 1 | 12V dc |
Key Features
- Compact SIP-3 package with through-hole mount for easy PCB integration.
- Operates efficiently with 95% efficiency to minimize power loss.
- Wide input voltage range from 15V to 36V DC suitable for various applications.
- Continuous short-circuit protection with automatic recovery enhances safety and reliability.
- Supports operating temperatures from -40°C to +85°C for demanding environments.
- Low ripple and noise of 75mV peak-to-peak ensures clean output power.
- Pin compatible with LMxx linear regulators allowing straightforward upgrades.
- Robust design compliant with UL 94 V-0 and other international standards.
Product Description
TRACOPOWER TSR 2-24120 is a high-performance switching regulator designed for through-hole mounting on PCBs, providing a stable 12V DC output at 2A current. It ensures reliable power delivery with 95% efficiency and low ripple, making it ideal for sensitive electronic components and battery chargers.
This regulator operates over a broad input voltage range of 15V to 36V DC and can function in extreme temperature environments from -40°C to +85°C. Its package type SIP-3 and through-hole mounting allow easy integration into industrial electronics and medical equipment circuits.
Featuring continuous short-circuit protection with automatic recovery, the TSR 2-24120 minimizes downtime and maintains productivity. It is pin-compatible with LMxx linear regulators for quick upgrades. The device meets stringent standards including UL 94 V-0, UL 60950-1, IEC/EN 60950-1, and MIL-STD-810F, assuring safety and reliability in aerospace and industrial applications.
The regulator's low 75mV peak-to-peak ripple and noise provide clean power output necessary for high-precision assemblies. With a mean time between failures of 13.52 million hours, this product assures long operational life and robustness.
Compact SIP-3 through-hole package designed for PCB mounting. High efficiency of 95%, reducing power waste and heat output. Wide input voltage range (15V to 36V DC) supports versatile usage. Automatic short-circuit protection enhances device and system safety.
Operates reliably within -40°C to +85°C temperature range. Pin compatible with LMxx linear regulators for ease of upgrade. Compliance with UL, IEC/EN, and MIL-STD standards ensures quality and safety. Low ripple and noise output suitable for sensitive electronics.
Extremely high MTBF for dependable long-term service.
This TRACOPOWER Switching Regulator is suitable for various industrial electronics, medical instrumentation, aerospace applications, and other demanding environments. It is an excellent choice for engineers requiring a reliable DC voltage regulation solution with efficient power conversion and built-in protections.
Explore more electronic components and power converters in our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSR 2-24120 provides a stable output voltage of 12V DC with a maximum output current of 2A.
This model operates with an efficiency of 95%, which helps minimize power loss during operation.
The input voltage range for the TSR 2-24120 is from 15V to 36V DC, making it suitable for various applications.
The dimensions of this unit are 14mm in length, 7.5mm in width, and 10.1mm in depth.
It operates reliably within a temperature range of -40°C to +85°C, suitable for demanding environments.
Yes, it features continuous short-circuit protection with automatic recovery, enhancing safety and reliability.
The TSR 2-24120 has a low ripple and noise specification of 75mV peak-to-peak, ensuring clean output power.
Yes, it complies with several standards including UL 94 V-0, UL 60950-1, IEC/EN 60950-1, and MIL-STD-810F.
This model comes in a compact SIP-3 package designed for through-hole mounting on PCBs.
This switching regulator has one output, delivering the specified 12V DC.
The mean time between failures (MTBF) for the TSR 2-24120 is 13.52 million hours, indicating a long operational life.
Yes, it is pin compatible with LMxx linear regulators, allowing for straightforward upgrades.
