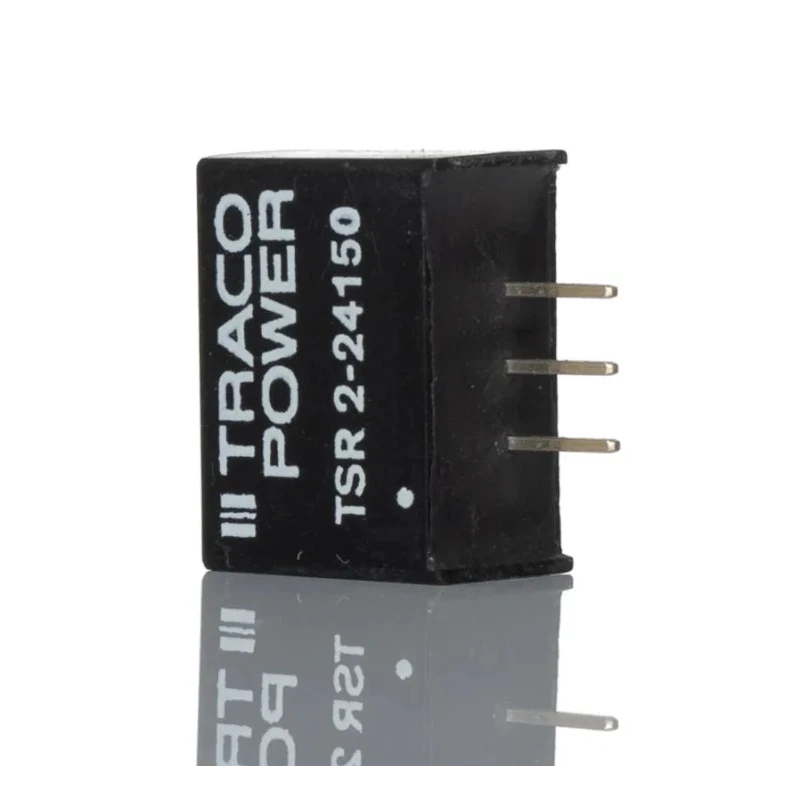

TRACOPOWER Switching Regulator Through Hole Mount SIP-3 Format 15V DC 2A Output TSR 2-24150
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 96% |
| Length | 14mm |
| Model | TSR 2-24150 |
| Depth | 10.1mm |
| Gross Weight | 2.6g |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | TSR 2 |
| Output Current | 2A |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP |
| Load Regulation | 1 % |
| Minimum Operating Temperature | -40°C |
| MTBF | 13520000h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Input Voltage | 36V dc |
| Line Regulation | 0.5 % |
| Standards/Approvals | UL 60950-1, UL 94 V-0, MIL-STD-810F, IEC/EN 60950-1 |
| Minimum Input Voltage | 18V |
| Output Voltage 1 | 15V dc |
Key Features
- Through-hole mount type suitable for secure PCB installation.
- Compact SIP-3 package format conserving board space.
- High efficiency rating of 96% ensures minimal power loss.
- Stable performance with 1% load regulation and 0.5% line regulation.
- Wide input voltage range from 18V to 36V DC for flexible system applications.
- Operates reliably across -40°C to 85°C temperature range.
- Low ripple and noise of 75mV peak-to-peak supports sensitive electronics.
- Robust compliance with UL 60950-1, UL 94 V-0, MIL-STD-810F, and IEC/EN 60950-1 standards.
Product Description
TRACOPOWER TSR 2-24150 Switching Regulator is a highly efficient power supply solution designed to deliver 15V DC output voltage at a continuous output current of 2A. This SIP-3 format device utilizes through-hole mounting technology, ensuring easy and secure integration into printed circuit boards for electronic and industrial applications.
The regulator offers an impressive efficiency of 96%, reducing heat dissipation and eliminating the need for additional heatsinking in typical environments. Its compact size, with dimensions of 14mm length, 7.5mm width, and 10.1mm depth, allows it to fit comfortably in space-constrained assemblies.
Designed for operation within a harsh temperature range from -40°C to 85°C, the TSR 2-24150 maintains stable voltage output with load regulation of 1% and line regulation of 0.5%. The device features low ripple and noise (75mV peak-to-peak) minimizing interference in sensitive circuits. It supports a wide input voltage range from 18V to 36V DC, accommodating various power source conditions.
Certified to recognized safety and reliability standards including UL 60950-1, UL 94 V-0, MIL-STD-810F, and IEC/EN 60950-1, this Switching Regulator is suited to demanding industrial, electronic engineering, robotics systems, and manufacturing plant environments.
Through-hole mount for reliable PCB integration. High efficiency minimizes waste heat output. Wide input voltage range enhances compatibility. Stable output with tight regulation specs. Compact SIP-3 package optimizes PCB layout.
Low noise and ripple protect downstream components. Compliance with multiple international safety standards. Extended operating temperature supports harsh conditions. Prolonged MTBF ensures dependable service life.
Engineers and system integrators will find the TSR 2-24150 regulator ideal for upgrading power supply quality without adding complexity. It ensures consistent voltage to critical components in industrial electronics, automation, and control systems. Explore the broad TRACOPOWER range for matched components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable output voltage of 15V DC with a continuous output current of 2A.
It has an impressive efficiency rating of 96%, which minimizes power loss during operation.
The input voltage range for this unit is from 18V to 36V DC, allowing for flexible system applications.
The SIP-3 package has dimensions of 14mm in length, 7.5mm in width, and 10.1mm in depth.
The load regulation is 1%, and the line regulation is 0.5%, ensuring stable voltage output under varying conditions.
It operates reliably across a temperature range from -40°C to 85°C, making it suitable for harsh environments.
The TSR 2-24150 features low ripple and noise of 75mV peak-to-peak, which helps protect sensitive electronics.
This switching regulator utilizes through-hole mounting technology for secure PCB installation.
It complies with several safety standards, including UL 60950-1, UL 94 V-0, MIL-STD-810F, and IEC/EN 60950-1.
The gross weight of this unit is 2.6 grams, making it lightweight for various applications.
This model has one output, which delivers the specified voltage and current.
The mean time between failures (MTBF) is rated at 13,520,000 hours, indicating a long service life.
