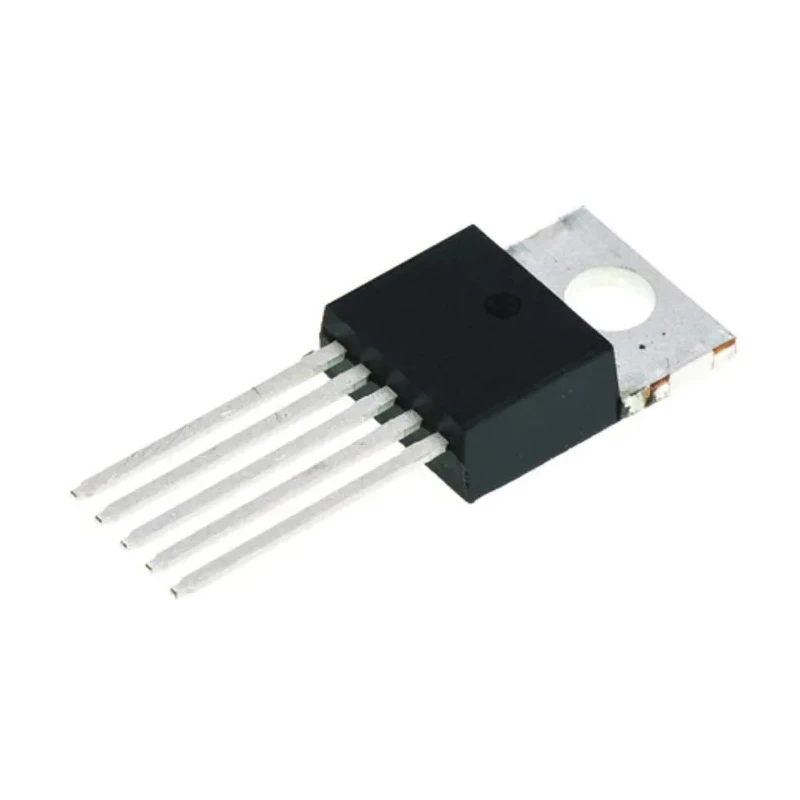

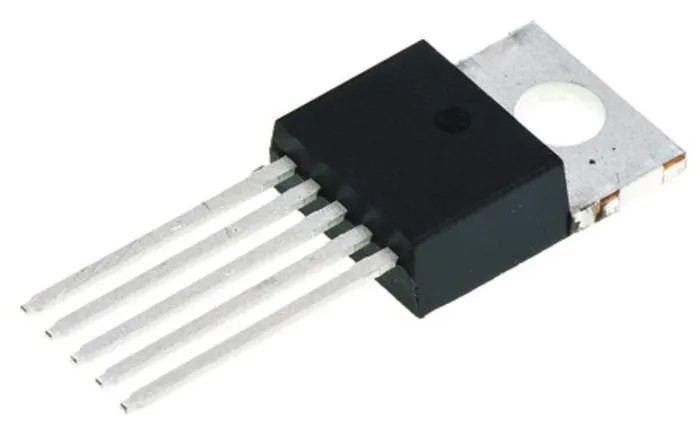

Microchip 5-Channel Boost and Buck Switching Regulator 1 A 5.25 V 63 kHz TO-220 5-Pin LM2575-5.0WT

Free Delivery in India | Lowest Global Shipping Charges

Microchip 5-Channel Boost and Buck Switching Regulator 1 A 5.25 V 63 kHz TO-220 5-Pin LM2575-5.0WT

Name: Microchip 5-Channel Boost and Buck Switching Regulator 1 A 5.25 V 63 kHz TO-220 5-Pin LM2575-5.0WT
Brand: Microchip
SKU: 387874
Price: 2.54 USD
Availability: InStock



Category Switching Regulator Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	15.11mm
Length	10.67mm
Model	LM2575-5.0WT
Width	4.83mm
Mount Type	Through Hole
Output type	Fixed
Series	LM2575
Output Current	1A
Maximum Operating Temperature	125°C
Package Type	TO-220
Minimum Operating Temperature	-40°C
Regulator Type	Boost, Buck
Switching Frequency	63kHz
Number of outputs	5
Maximum Input Voltage	40V
Output Voltage	5.25V
Quiescent Current	50μA
Standards/Approvals	RoHS
Minimum Input Voltage	4V
Pin Count	5
Micrel, LM2575-5.0WT Switching Regulator, 1-Channel 1A 5-Pin, TO-220Brand	Micrel

Key Features

Integrated step-down DC/DC regulator with internal switch technology.
Supports both boost and buck voltage regulation modes for versatile applications.
Compact TO-220 5-pin package for through-hole mounting.
Low quiescent current of 50 microamps ensures energy efficiency.
Wide operating voltage range from 4 V to 40 V input.
Operating temperature range from -40°C to 125°C suitable for diverse environments.
RoHS compliant for environmental safety standards.
Pin count of 5 simplifies circuit integration and design.

Product Description

Microchip LM2575-5.0WT is a 5-channel boost and buck switching regulator designed to provide a fixed output voltage of 5.25 V with an output current capacity of 1 A. Packaged in a reliable TO-220 5-pin through-hole form factor, it is ideal for applications requiring efficient DC/DC conversion within a wide input voltage range of 4 V to 40 V.

This regulator integrates internal switches that enable step-down conversion with high efficiency, suitable for industrial, electronic component manufacturing, and power management systems. Its low quiescent current of 50 microamps helps reduce power loss during standby operation, making it energy-conservative for continuous use.

The device supports operation within a broad temperature range of -40°C to 125°C, ensuring reliability in demanding environments such as electronics assembly lines and industrial automation equipment. The fixed output voltage and a precise switching frequency of 63 kHz facilitate stable voltage regulation and minimized noise, critical for sensitive electronics.

Compliant with RoHS standards, Microchip LM2575-5.0WT meets environmental and safety regulations, suitable for green manufacturing processes. Its compact TO-220 package simplifies mounting and integration into printed circuit boards (PCB) requiring through-hole components.

Integrated step-down DC/DC converter with internal switch technology. Boost and buck regulator functionality for voltage control. Fixed 5.25 V output for stable power supply. 1 A maximum output current supporting moderate load requirements.

Operating frequency at 63 kHz to reduce EMI. Low quiescent current minimizes standby power consumption. Wide input voltage range from 4 V to 40 V. Operating temperature from -40°C to 125°C for rugged use. Through-hole TO-220 5-pin package for ease of assembly.

RoHS compliant for environmental safety. This regulator is extensively used in electronic components manufacturing, semiconductor power management ICs, and industrial electronic systems for reliable voltage regulation.

EnvMart provides skilled access to high-quality Switching Regulators like the Microchip LM2575-5.0WT for industrial, laboratory, and manufacturing applications. Explore our selection of power management components to suit your electronic design and production needs.
