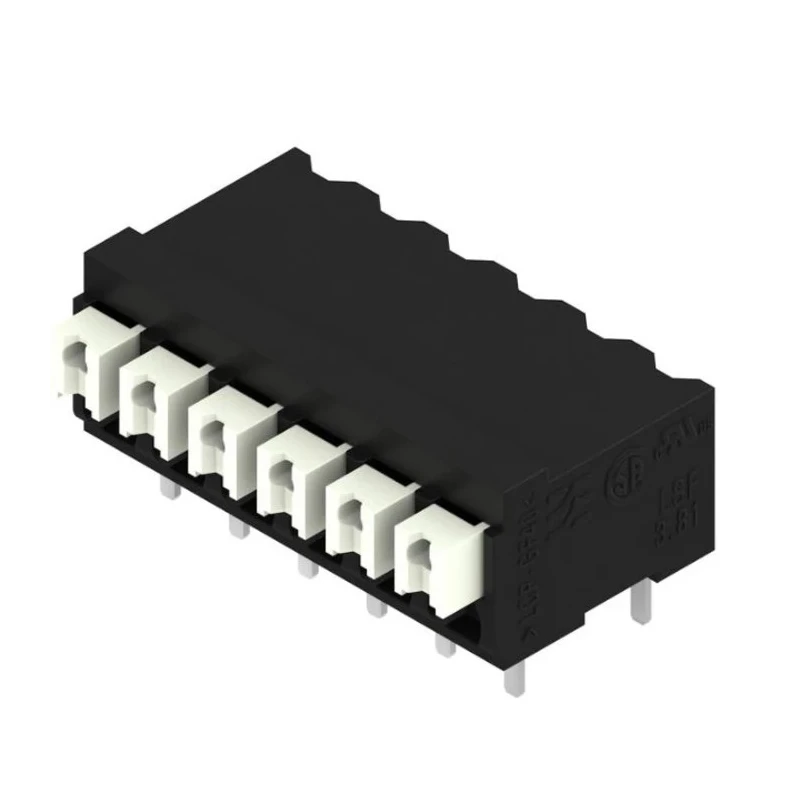

Weidmüller LSF Series PCB Terminal Block, 6 Contacts, 3.81 mm Pitch, 1 Row, Push-in, 320V, 17.5A, Black 1824660000
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 320V |
| Brand | Weidmüller |
| Colour | Black |
| Orientation | 90° |
| Current | 17.5A |
| Depth | 14.75mm |
| Width | 23.25mm |
| Housing Material | Fibreglass Liquid Crystal Polymer |
| Series | LSF |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Standards/Approvals | IEC 61984, IEC 60664-1 |
| Number of Contacts | 6 |
| Minimum Wire Size mm² | 2mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Push-in |
Key Features
- Compact LSF Series design ensures efficient PCB assembly.
- Accommodates 6 contacts with a 3.81 mm pitch, ideal for streamlined layouts.
- Supports up to 320V and 17.5A for high-performance electrical applications.
- Push-in wire connection minimizes assembly time and ensures secure fitting.
- Constructed from fibreglass liquid crystal polymer for high durability and long life.
- Accepts wire sizes from 14 to 28 AWG, fitting a range of conductors.
- Black housing provides clear marking and professional appearance.
- Meets IEC 61984 and IEC 60664-1 standards for quality and safety compliance.
Product Description
Weidmüller 1824660000 PCB Terminal Block from the renowned LSF Series offers a compact, robust solution for efficient PCB wiring. With 6 contacts, 3.81 mm pitch, and a single row layout, this terminal block is tailored for automated surface-mount technology (SMT) assembly and demanding industrial electronics applications.
Compact and multi-layered for optimal space usage on PCBs. Push-in wire connection system enables quick, tool-free installation, minimizing assembly complexity. Current capacity up to 17.5A and rated for voltages up to 320V.
Supports solid wires and wires with ferrules, ensuring versatility in connection options. Wire size compatibility: accepts conductors from 14 AWG to 28 AWG, and from 1.5 mm² to 2 mm². Housing made from fibreglass liquid crystal polymer for excellent temperature and mechanical resistance.
Orientation of 90° allows flexible PCB positioning. Features clear marking via colored push buttons for easy identification of potentials and clamping points. Compliant with IEC 61984 and IEC 60664-1 safety and quality standards.
Primarily used in electronics manufacturing, industrial automation control panels, and PCB design where reliable, high-density connections are essential. Its application-oriented connection technology covers a wide cross-sectional area range, making it suitable for diverse commercial and industrial projects.
Ideal for reflow soldering SMT processes, the block comes packed in a tube for convenient automated insertion, and is compatible with various automated manufacturing environments.
Typical industries include electronics manufacturing, industrial automation, HVAC, and panel building, among others. The black color, robust housing, and precise pitch make the LSF Series terminal block a professional choice for high-quality PCB assembly.
Explore more Weidmüller PCB Terminal Blocks and connection solutions within the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a maximum voltage of 320V and a current capacity of 17.5A.
It has a pitch of 3.81 mm and accommodates 6 contacts in a single row layout.
This model accepts wire sizes from 14 AWG to 28 AWG, or from 1.5 mm² to 2 mm².
The housing is made from fibreglass liquid crystal polymer, which provides excellent temperature and mechanical resistance.
The dimensions are 23.25 mm in width and 14.75 mm in depth.
It utilizes a push-in wire connection system, allowing for quick, tool-free installation and secure fitting.
It meets IEC 61984 and IEC 60664-1 standards for safety and quality compliance.
The orientation is 90°, allowing for flexible PCB positioning.
It is commonly used in electronics manufacturing, industrial automation, HVAC, and panel building applications.
The terminal block comes packed in a tube for convenient automated insertion, suitable for SMT processes.
The black housing provides clear marking and a professional appearance, enhancing visual identification of potentials and clamping points.
Yes, it is designed for compatibility with various automated manufacturing environments, particularly for reflow soldering SMT processes.
