| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | LQM18PN2R2MFRL |
| Depth | 0.8mm |
| Packaging | Embossed Tape |
| Series | LQM |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 2.2μH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 750mA |
| Pin Count | 2 |
| Maximum DC Resistance | 300mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 70MHz |
| Inductor Construction | Multilayer |

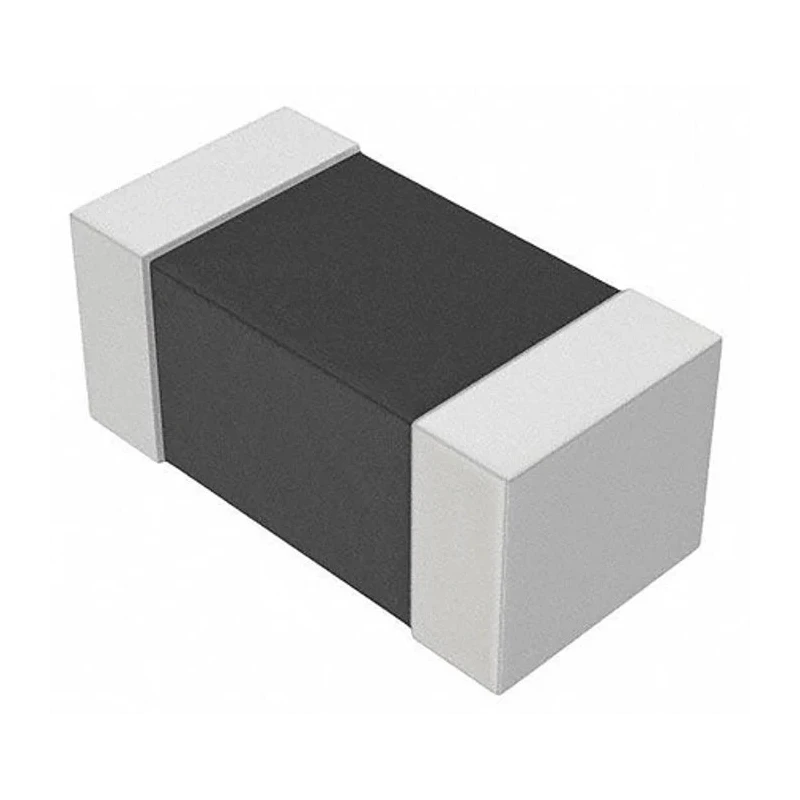

The Murata LQM18PN2R2MFRL is a high-performance 0603 shielded multilayer surface mount inductor designed for modern electronic devices. With an inductance value of 2.2μH and a ±20% tolerance, this inductor is engineered for precise energy storage and filtering in a compact package.
Constructed with a ferrite core, the LQM18PN2R2MFRL provides efficient magnetic shielding while maintaining low DC resistance (300mΩ maximum). Its maximum DC current rating of 750mA enables it to handle moderate currents without significant losses, making it ideal for switching regulators, resonant circuits, voltage converters, and noise suppression applications.
The inductor features a moulded structure for robust mechanical integrity and is built to operate across a wide temperature range of -40°C to 85°C. The SMD 0603 package (1.6mm length, 0.8mm width, 0.8mm height) supports automated pick-and-place assembly in high-volume manufacturing environments.
Compact 0603 surface mount package minimizes board space requirements. Inductance of 2.2μH ±20% for versatile filtering and tuning applications. Maximum current rating of 750mA and maximum DC resistance of 300mΩ ensure efficiency.
Ferrite core shielded construction provides excellent EMI suppression. Moulded design for enhanced durability and reliability in industrial and consumer electronics. Compliant with RoHS environmental requirements.
Typical applications include mobile phones, digital cameras, TV sets, portable game machines, HDDs, and other high-density electronics. The inductor’s robust performance and miniature size make it particularly suitable for modern circuitry where board real estate and electromagnetic interference (EMI) are critical considerations.
Industrial users will find the LQM18PN2R2MFRL valuable in industries such as consumer electronics, communications equipment, embedded systems, IoT devices, and power management circuitry. The device is supplied on embossed tape for SMT manufacturing lines, enhancing production efficiency.
Explore more Murata inductors and passive components in the Surface Mount Inductor category on EnvMart for your next high-density electronic design.
