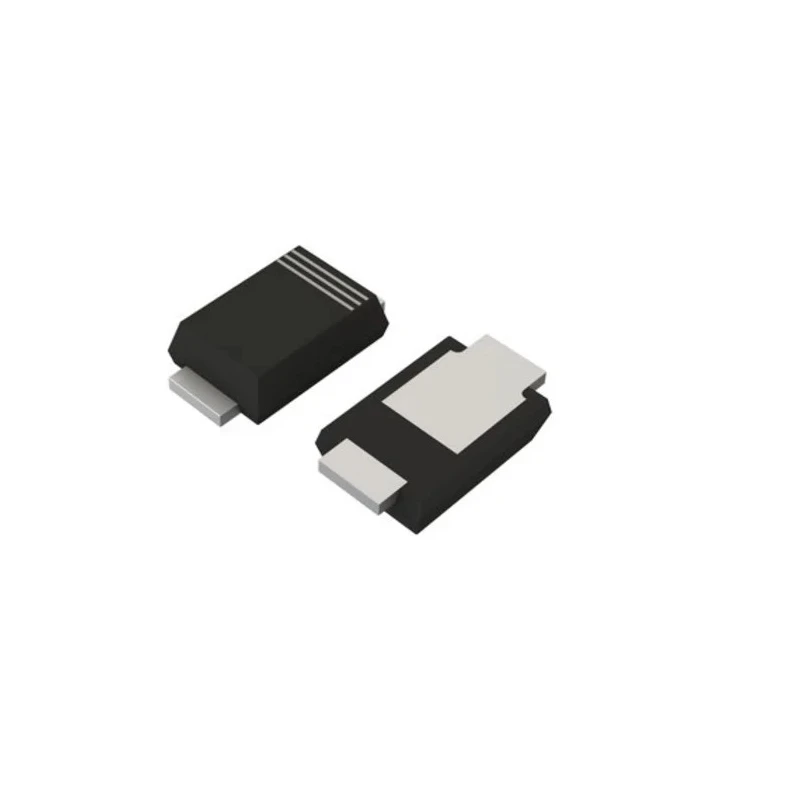

ROHM Schottky Barrier Diode RB168VYM100FHTR, 100V 1A, Single 2-Pin SOD-323HE
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.8mm |
| Length | 2.1mm |
| Model | RB168VYM100FHTR |
| Width | 1.5mm |
| Mount Type | Surface |
| Series | RB168VYM100FH |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323HE |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Maximum Forward Voltage Vf | 0.84V |
Key Features
- Schottky barrier diode suitable for general rectification requirements.
- Maximum reverse repetitive voltage of 100V and continuous forward current of 1A.
- Surface mount, compact SOD-323HE package with 2-pin configuration.
- Maximum forward voltage of 0.84V ensures low power loss.
- High reliability with AEC-Q101 automotive standard compliance.
- Operating temperature up to 150°C for demanding environments.
- Small size, length 2.1 mm, width 1.5 mm, height 0.8 mm.
Product Description
ROHM RB168VYM100FHTR Schottky Barrier Diode is a high-performance component designed for rectification and protection purposes in electronic circuits. Featuring a silicon epitaxial planar structure, it delivers efficient Schottky barrier characteristics, making it ideal for applications requiring fast switching and low forward voltage drop. With a maximum reverse repetitive voltage of 100V and a continuous forward current rating of 1A, it reliably supports circuit designs in automotive, industrial, and consumer electronics.
The diode configuration is single with two pins, housed in an ultra-compact SOD-323HE surface mount package. Its maximum forward voltage drop is only 0.84V, minimizing energy loss and heat generation during operation. Engineered for robust performance, it is qualified to meet the AEC-Q101 automotive standard, ensuring reliability in harsh conditions and extending suitability to automotive applications.
Schottky barrier technology for low IR losses and quick switching. Compact footprint and surface mount compatibility enhances PCB layout flexibility. High temperature tolerance up to 150°C supports demanding environments.
Designed for use in general rectification, power management, and reverse polarity protection circuits. Single-diode configuration simplifies integration and pin mapping. Package dimensions: 2.1 mm (length), 1.5 mm (width), 0.8 mm (height).
Automotive standard compliance broadens application scope.
Industry sectors benefiting from this component include industrial equipment, automotive electronics, consumer devices, and PCB manufacturing. Suitable for surface-mount electronic assemblies, it provides reliable rectification and switching for current up to 1A at voltages up to 100V.
Explore more Schottky Diodes and rectifiers in the EnvMart electronics & electricals range. For selecting optimum rectification devices, browse the complete ROHM product lineup on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum reverse repetitive voltage of the ROHM RB168VYM100FHTR is 100V.
This Schottky diode has a continuous forward current rating of 1A.
The SOD-323HE package has dimensions of 2.1 mm in length, 1.5 mm in width, and 0.8 mm in height.
The maximum forward voltage drop for this model is 0.84V.
This diode can operate at temperatures up to 150°C.
The RB168VYM100FHTR features a single diode configuration with a 2-pin setup.
Yes, it is compliant with the AEC-Q101 automotive standard, ensuring reliability in automotive applications.
This model supports surface mounting, enhancing PCB layout flexibility.
It is suitable for general rectification, power management, and reverse polarity protection circuits.
The Schottky barrier technology provides low IR losses and quick switching capabilities.
Industries such as automotive electronics, industrial equipment, and consumer devices can benefit from this component.
The country of origin for this diode is India.
