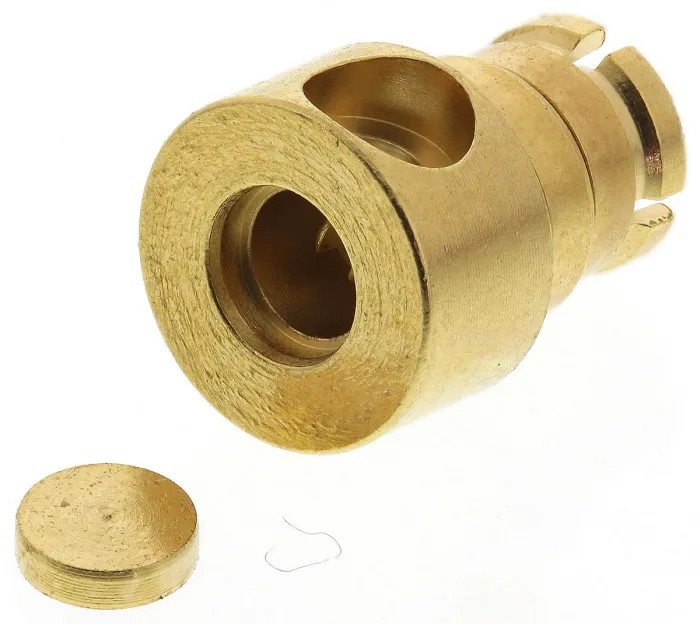

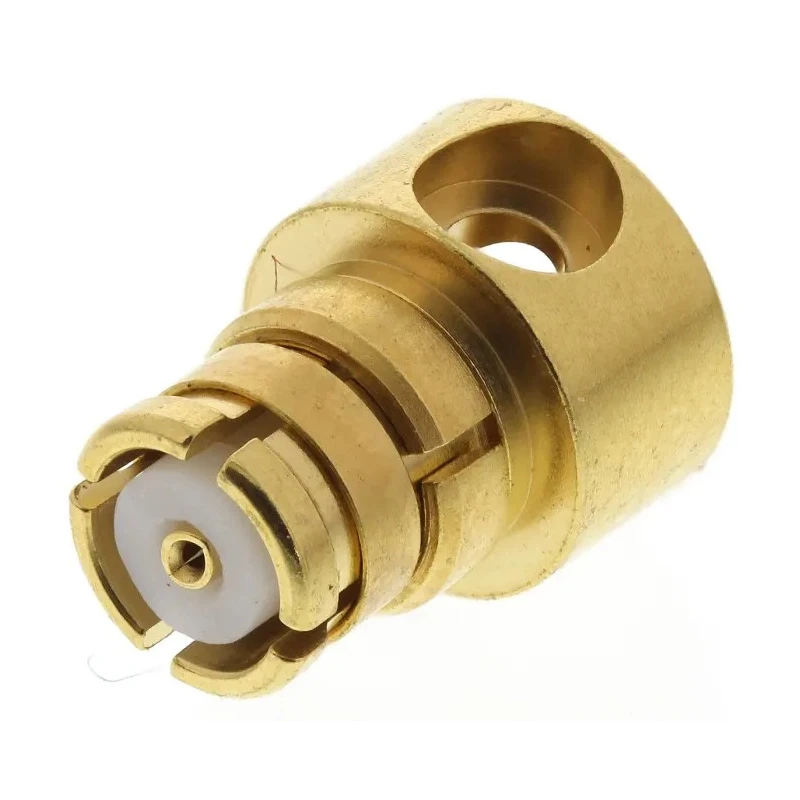

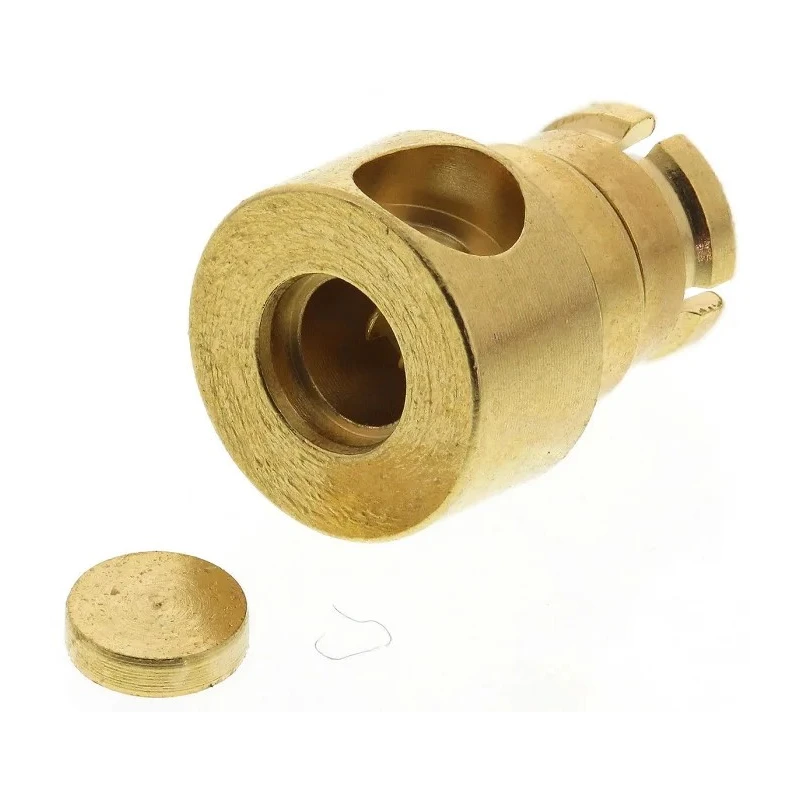

Radiall RP-SMP Series Coaxial Connector Cable Male, SMP, 50Ω, Right Angle Body, Solder, R222152000W
Specifications
| Country of Origin | India |
|---|---|
| Size | Standard |
| Brand | Radiall |
| Orientation | Right Angle |
| Model | R222152000W |
| Mount Type | Cable |
| Operating Frequency | 0, 26.5GHz |
| Contact Material | Beryllium Copper Alloy |
| Series | RP-SMP |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG405, KS 1 |
| Minimum Operating Temperature | -65°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Contact Plating | Gold over Nickel |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | SMP |
| Body Plating | Gold over Nickel |
Key Features
- SMP type coaxial connector for cable mounting.
- Impedance rated at 50Ω for standard RF transmission.
- Male gender with right angle body for space-constrained installations.
- Solder termination provides secure electrical connection.
- Gold over nickel plating for improved conductivity and corrosion resistance.
- Supports operating frequency up to 26.5 GHz for high-frequency systems.
- Ultra-miniature size enables dense packaging and blind mate applications.
- Excellent vibration and shock performance for industrial and communication environments.
Product Description
Radiall R222152000W is a high-quality RP-SMP Series coaxial connector designed for cable mounting in advanced electronic and RF systems. Featuring SMP type, 50Ω impedance, and male gender, this connector offers consistent performance in high-density packaging environments. Its right angle body ensures efficient installation where space is limited, and solder termination guarantees a robust, reliable electrical connection.
Constructed with gold over nickel plating, the connector delivers superior conductivity, corrosion resistance, and durability for demanding industrial and communications applications. The design supports operating frequencies up to 26.5 GHz, making it suitable for phased array antenna systems, satellite, radar, and airborne/ground communication equipment.
Ultra-miniature form factor and blind mate capability allow users to efficiently deploy connectors in applications requiring compactness and flexible alignment. The SMP series connector withstands vibration and shock, helping ensure signal reliability even in harsh industrial conditions.
Axial and radial misalignment support further enhances installation tolerance, making the product ideal for high-density boards and device assemblies. The beryllium copper alloy contact material guarantees long-term durability and optimal signal transmission, while the reverse polarity male center contact maximizes retention and locking for secure engagement.
Engineers and integrators trust this connector for its compliance with MIL STD 348 and DESC specifications 94007 & 94008. Its versatility covers phased array antennas, satellite communication, ground radar, and airborne RF systems.
This product is commonly used in industrial, laboratory, telecom, aerospace, and military-grade communication environments where reliable high-frequency performance and robust mechanical engagement are required.
Browse more Radiall coaxial connectors and SMP series solutions in the Coaxial Connector category on EnvMart for tailored RF and signal-interconnect solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this model is 26.5 GHz, making it suitable for high-frequency applications.
This connector features a solder termination type, ensuring a secure electrical connection.
It has an impedance rating of 50Ω, which is standard for RF transmission.
The contact is made from beryllium copper alloy and is plated with gold over nickel, which enhances conductivity and corrosion resistance.
The connector operates within a temperature range of -65°C to 165°C.
This model features a right angle orientation, which is beneficial for space-constrained installations.
It is compatible with RG405 and KS 1 cable types.
This connector has a male gender, which is suitable for various applications.
The reverse polarity design maximizes retention and locking, ensuring secure engagement during use.
It is commonly used in industrial, laboratory, telecom, aerospace, and military-grade communication environments.
This connector is classified as standard size and features an ultra-miniature form factor for dense packaging.
This model complies with MIL STD 348 and DESC specifications 94007 & 94008, ensuring reliability in demanding applications.
