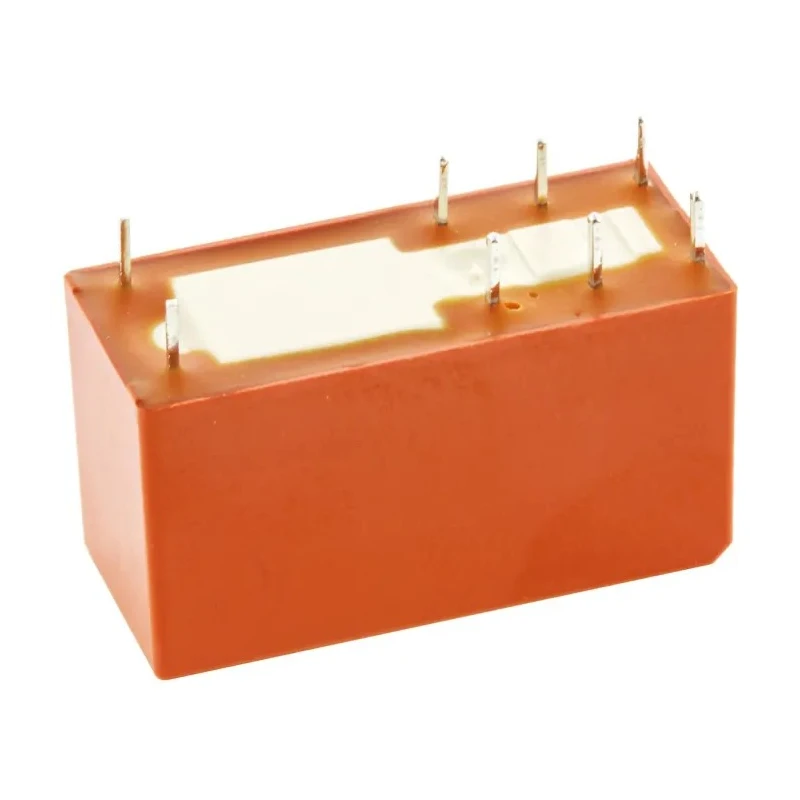

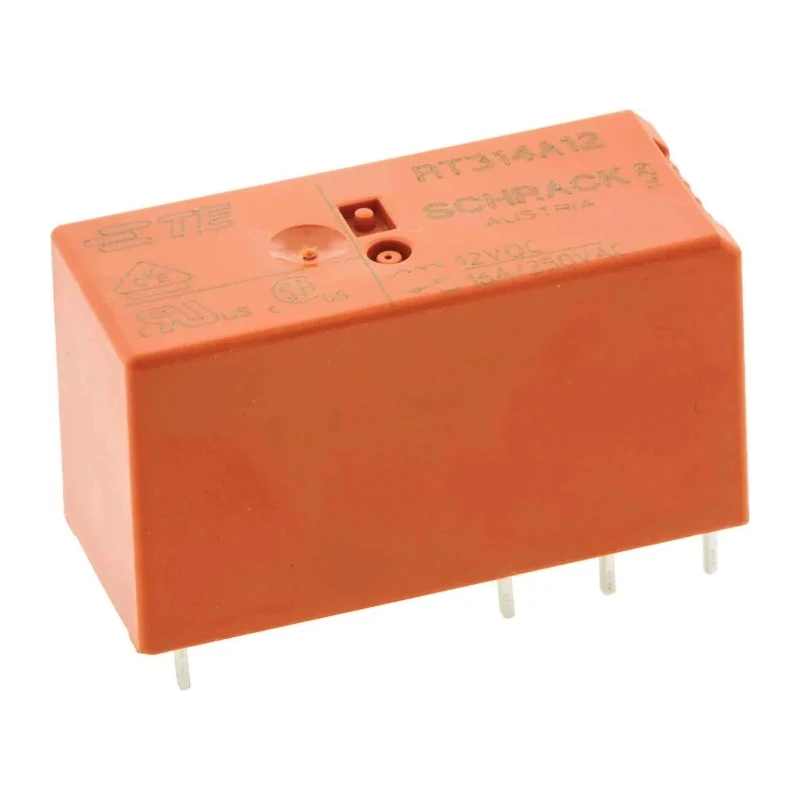

TE Connectivity PCB Power Relay 12V DC Coil 16A SPDT RT314A12
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314A12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -10°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
Key Features
- PCB mount power relay with compact design and robust construction.
- Features a single-pole double-throw (SPDT) contact configuration.
- Operates with a 12V DC coil voltage for reliable switching control.
- Handles a maximum switching current of 16A for demanding applications.
- Provides reinforced insulation and high shock resistance for operational safety.
- Contact material is silver alloy for excellent conductivity and durability.
- Suitable for operation at temperatures from -10°C to 85°C.
- Meets RoHS standards for environmental compliance.
Product Description
The TE Connectivity RT314A12 PCB Power Relay is engineered for high-performance switching applications in industrial, automation, and electronics systems. This relay utilizes a 12V DC coil, ensuring precise actuation and control in circuit board designs where reliability and compactness are essential. With a robust single-pole double-throw (SPDT) contact arrangement, it delivers flexibility for switching between alternate connections in power circuits.
Supporting a maximum switching current of 16A and an AC voltage rating of up to 400V, the RT314A12 provides secure operation in power distribution and signal conditioning tasks. Its silver alloy contacts are designed for long service life and efficient conductivity, enhancing operational dependability even in challenging environments.
Built with reinforced insulation and capable of withstanding destructive shock conditions up to 100g, the relay is suitable for demanding industrial installations and equipment where physical resilience is a must. The relay's operating temperature range from -10°C to 85°C ensures stable performance across a wide range of ambient conditions, making it ideal for both high and low-temperature environments.

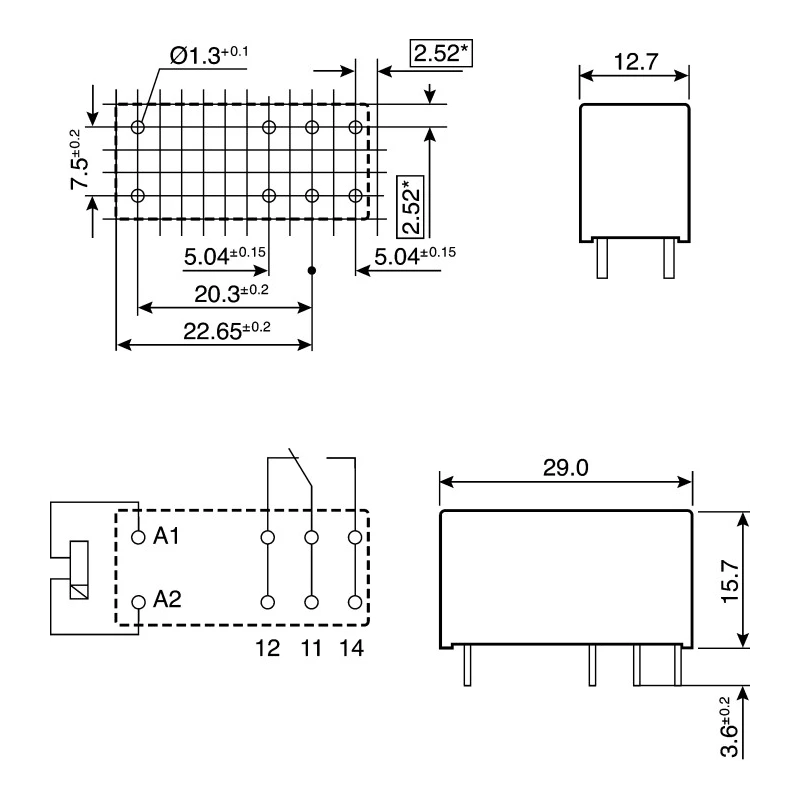

Its compact dimensions of 29mm length, 12.7mm width, and 15.7mm height support easy integration into PCBs. Solder-type terminals facilitate efficient mounting during production runs, reducing installation time in automated assembly lines or manual builds. The relay belongs to the SCHRACK series, known for advanced power relay solutions, and complies with RoHS environmental standards.
Typical uses include battery-powered equipment, memory function circuits, and mains failure backup systems, benefiting from the relay's latching capability and shock resistance. Applications span industrial automation controllers, HVAC systems, home and building electronics, commercial machinery, and advanced signal conditioning modules.
The relay is ideally suited for engineers, product designers, and integration specialists seeking a high-quality, versatile power relay solution for PCB-based installations.
Explore more Power Relay solutions from TE Connectivity and browse EnvMart for a comprehensive selection of industrial relays, signal conditioning devices, and PCB components tailored to your automation and electrical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for the TE Connectivity RT314A12 relay is 16A.
This model operates with a coil voltage of 12V DC.
The dimensions of the RT314A12 relay are 29mm in length, 12.7mm in width, and 15.7mm in height.
The contact configuration of this relay is single-pole double-throw (SPDT).
The operating temperature range for the RT314A12 relay is from -10°C to 85°C.
This relay uses solder-type terminals for mounting.
The contact material of the RT314A12 is silver alloy, which provides excellent conductivity.
The maximum AC voltage rating for the RT314A12 relay is up to 400V.
This relay complies with RoHS environmental standards.
The RT314A12 belongs to the SCHRACK series of relays.
The RT314A12 relay is manufactured in Austria.
