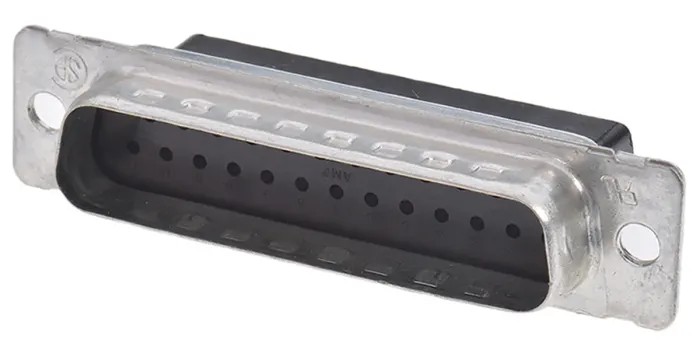

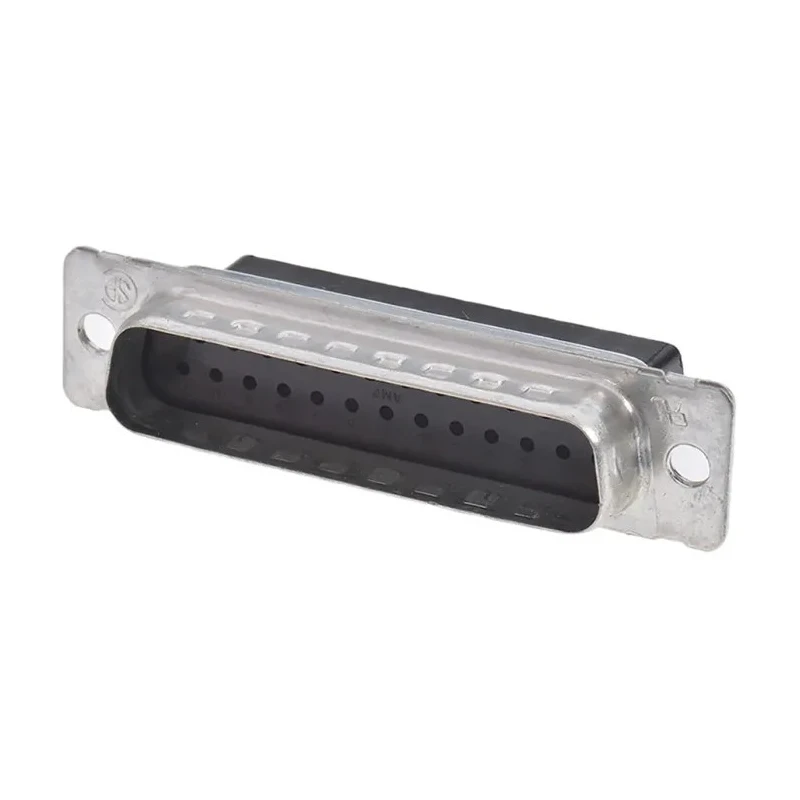

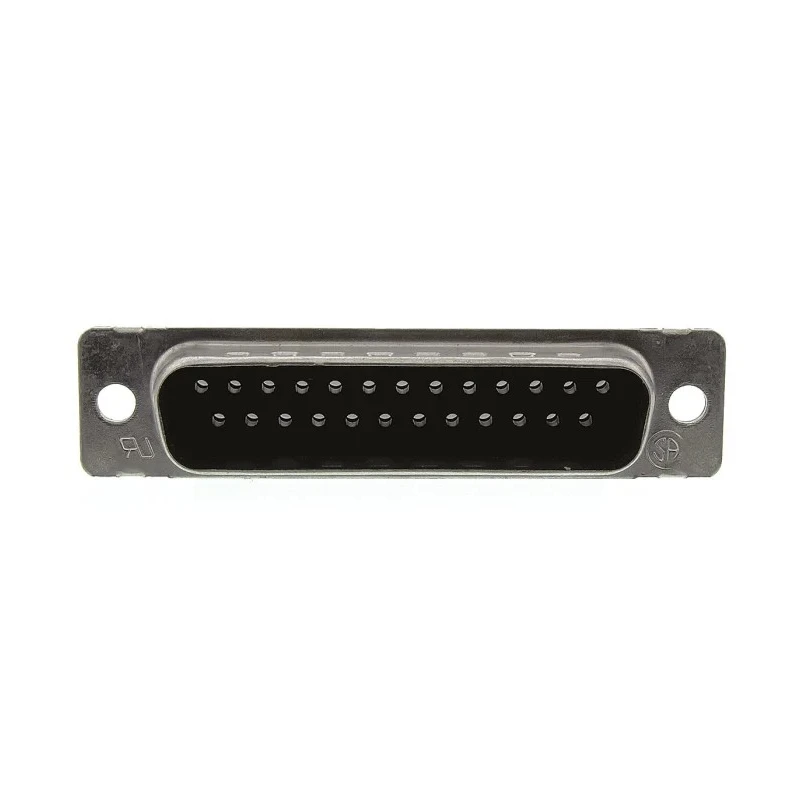

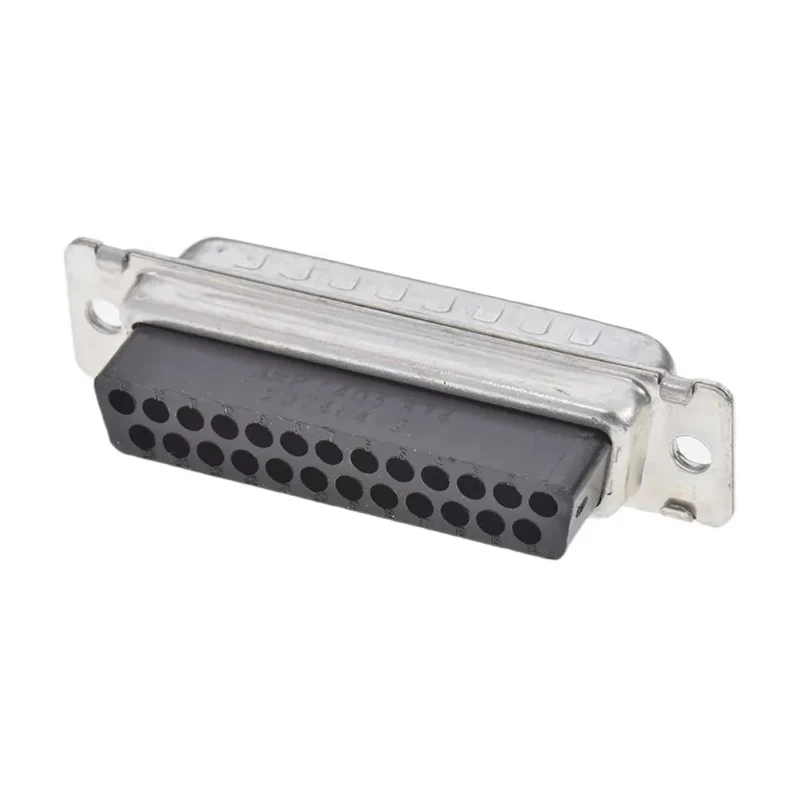

TE Connectivity AMPLIMITE HDP-20 25 Way Straight Cable D-Sub Connector Male 3.7A 250V Steel Shell Crimp 207464-2

TE Connectivity AMPLIMITE HDP-20 207464-2 is a high-density 25 way straight cable D-sub connector designed specifically for robust and reliable interconnections in electronic systems. This connector features a male orientation, making it well-suited for use in applications requiring cable termination to standardized D-sub sockets on equipment panels or PCBs.

The AMPLIMITE HDP-20 series connectors are engineered for secure and durable connections in demanding environments. With a 3.7A current rating per contact and a maximum operating voltage of 250V, this connector is ideal for signal, low-voltage power, and data communication applications. The crimp snap-in contacts streamline assembly and servicing, while the standard mounting hardware and cable mounting type ensure easy integration into custom harnesses or larger assemblies.

Constructed with a steel shell featuring tin plating, and a 94V0-rated black thermoplastic insert, the connector offers superior strength, flame resistance, and long service life. Gold-plated copper contacts guarantee low contact resistance and protect against corrosion, leading to long-term reliable signal transmission. The operating temperature range of -55°C to 105°C enables its deployment in challenging conditions across industrial, laboratory, and electronic environments.

With a space-saving form factor that offers approximately 65% higher density than standard HD-20 connectors, the 207464-2 enables compact, high-performance wiring in communication devices, measurement instruments, process equipment, data interfaces, and other commercial electronic assemblies. Multiple shell sizes and optional accessories - including crimp contacts, screw retainers, female screw-locks, locking post assemblies, and latching blocks - expand its versatility to fit varied project requirements.

Common use cases for this connector include factory automation, laboratory test equipment, computing interfaces, electronic instrumentation, and other high-reliability signal and low-power interconnections. Its combination of rugged metallurgy, compact design, and high-current handling makes it valuable for OEMs, maintenance teams, R&D engineers, and system integrators in the electronics and industrial sectors.
