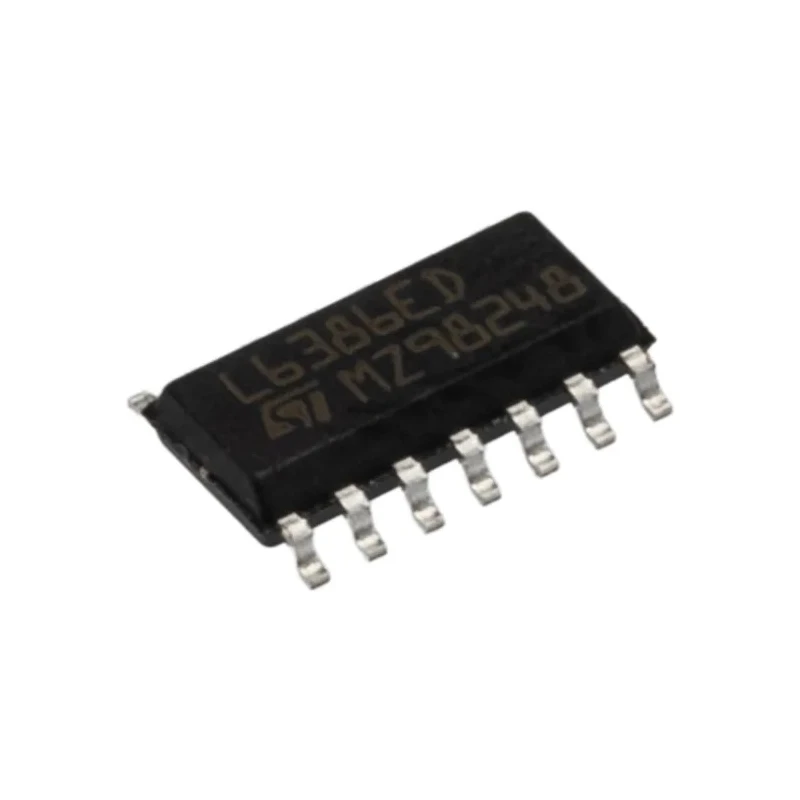

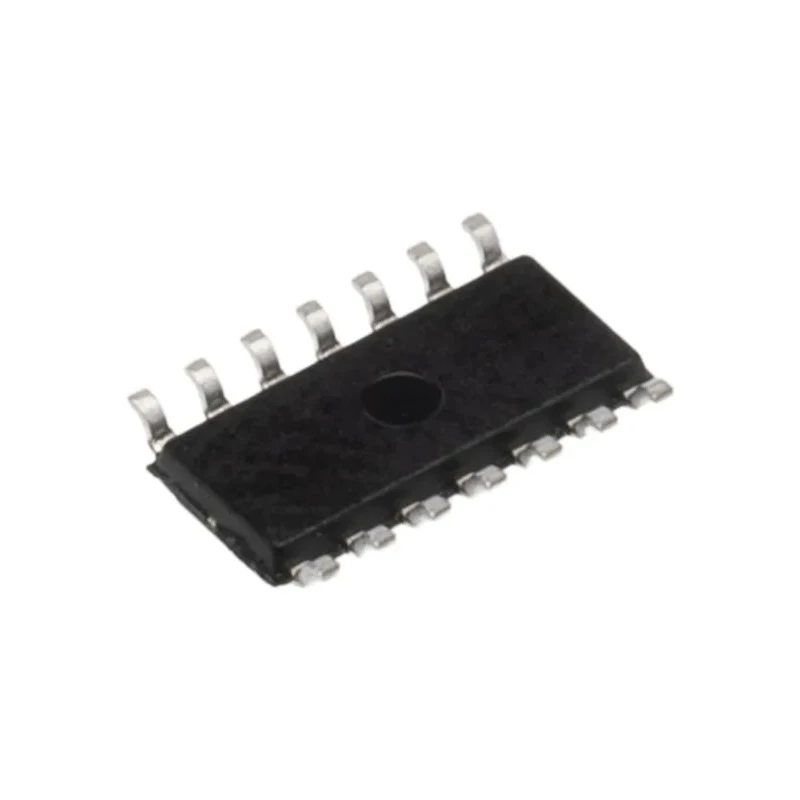

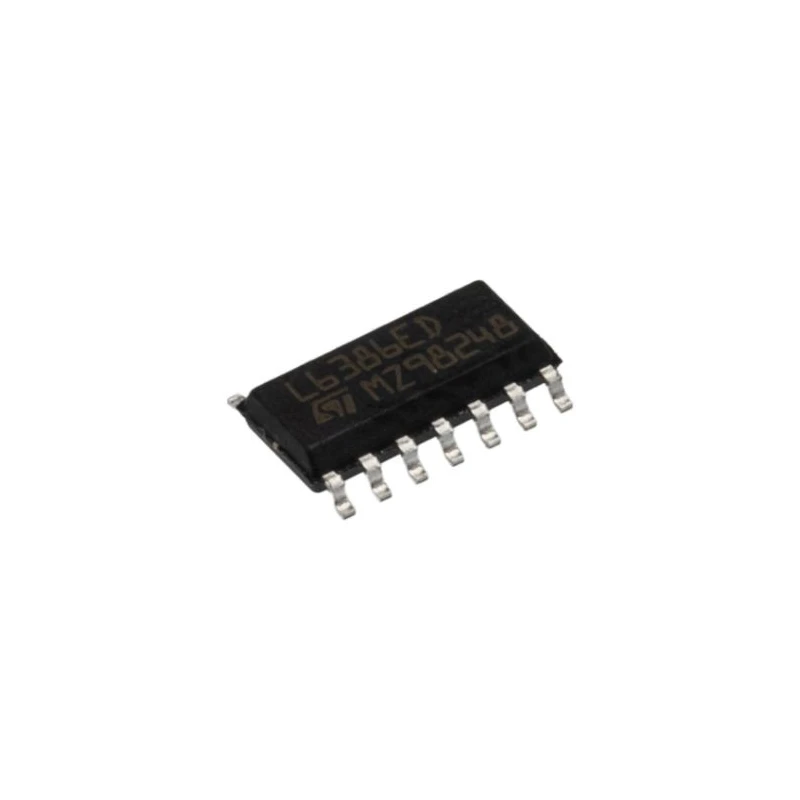

STMicroelectronics MOSFET Gate Driver, 2 Outputs, 650 mA, 14-Pin SOIC, 18V, L6386ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.65mm |
| Length | 8.75mm |
| Model | L6386ED |
| Width | 4mm |
| Mount Type | Surface |
| Series | L6386E |
| Output Current | 650mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -45°C |
| Number of outputs | 2 |
| Rise Time | 50ns |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 17V |
| Number of Drivers | 2 |
| Fall Time | 30ns |
| Driver Type | MOSFET |
| STMicroelectronics L6386ED013TR, MOSFET 2, 0.65 A, 17V 14-Pin, SOICBrand | STMicroelectronics |
Key Features
- Provides dual MOSFET gate driving capability with 650 mA output current.
- Operates at a maximum supply voltage of 18V, ensuring compatibility with standard power IC requirements.
- Features fast switching with fall time of 30 ns and rise time of 50 ns to support high-speed applications.
- Comes in a compact 14-pin surface-mounted SOIC package for integration onto PCBs.
- Supports operation from -45°C to 125°C, making it suitable for industrial environments.
- Includes two independent drivers, allowing control of multiple MOSFETs or IGBTs.
- Mount type is surface, ideal for automated assembly and production lines.
Product Description
STMicroelectronics L6386ED is a high-performance MOSFET Gate Driver designed for precise and efficient control in power management circuits. With dual output channels, each capable of delivering 650 mA, this IC enables robust driving of MOSFETs or IGBTs in systems ranging from industrial power supplies to automation and motor control assemblies.
The L6386ED supports fast operation with a fall time of 30 nanoseconds and a rise time of 50 nanoseconds, allowing for reliable switching at high frequencies. Its maximum supply voltage of 18V and minimum supply voltage of 17V offer versatile integration with a wide variety of power stages. The device operates across a broad temperature range from -45°C to 125°C, ensuring dependable performance in both commercial and industrial environments.
Its compact 14-pin SOIC package with surface-mount compatibility is ideal for PCB layouts where space-saving and automated manufacturing are priorities. The two independent drivers facilitate flexible designs, enabling simultaneous or separate control of up to two power transistors. Additional features include compatibility with MOSFET and IGBT devices, automotive standard compliance status (not compliant), and support for demanding power conversion, inverter, and relay-driving use cases.
The L6386ED is commonly used in power supplies, industrial automation, motor drives, and any application requiring fast, efficient switching and robust gate drive capability. With its reliable construction, it is suitable for environments where wide temperature variation and high current demand are present.
Dual MOSFET/IGBT gate driver functionality, supporting high current output. Fast switching performance for precision control applications. Compact 14-pin SOIC surface-mount package for industrial PCB designs. Wide operating temperature and voltage range assures reliability.
Ideal for industrial automation, power management, motor control, and inverter systems. Flexible two-driver configuration for multi-device control. Designed for integration into production processes requiring high efficiency and reliability.
Explore more MOSFET, gate driver, and power management IC solutions from STMicroelectronics and the wider EnvMart electronics catalog to complete your project and optimize your design flow.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 18V.
It has an output current capability of 650 mA.
The rise time is 50 ns and the fall time is 30 ns, supporting fast switching applications.
This model operates within a temperature range of -45°C to 125°C.
It features two independent outputs, allowing control of multiple MOSFETs or IGBTs.
It comes in a compact 14-pin SOIC surface-mount package, suitable for PCB integration.
The mount type for the L6386ED is surface mount, ideal for automated assembly.
It is suitable for applications in power supplies, industrial automation, motor drives, and inverter systems.
The L6386ED has a pin count of 14.
The dimensions are 1.65 mm in height, 8.75 mm in length, and 4 mm in width.
The minimum supply voltage is 17V.
It supports high-speed applications through its fast switching characteristics, with a fall time of 30 ns and rise time of 50 ns.
