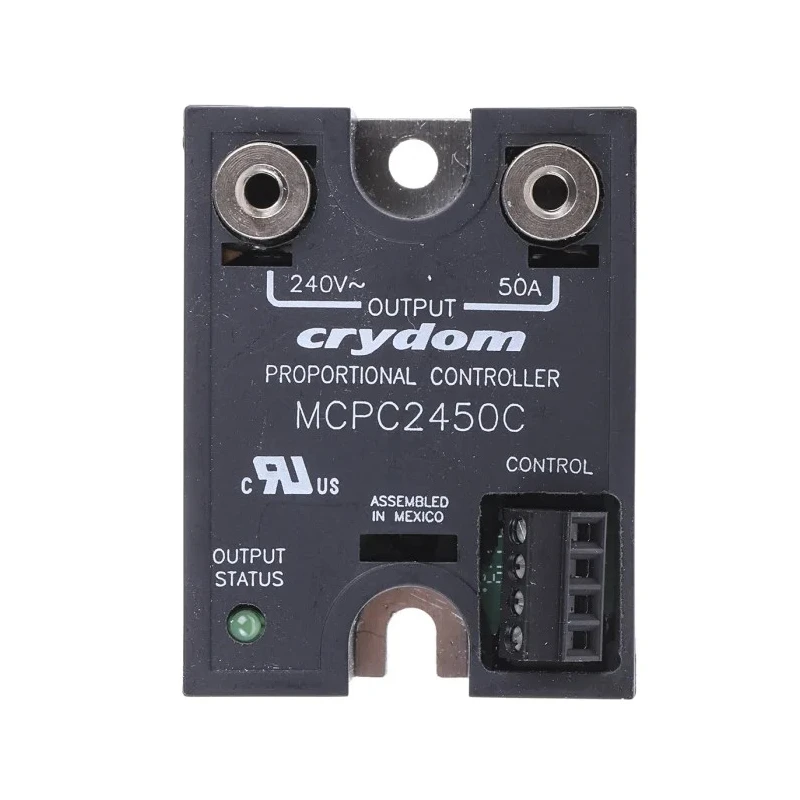

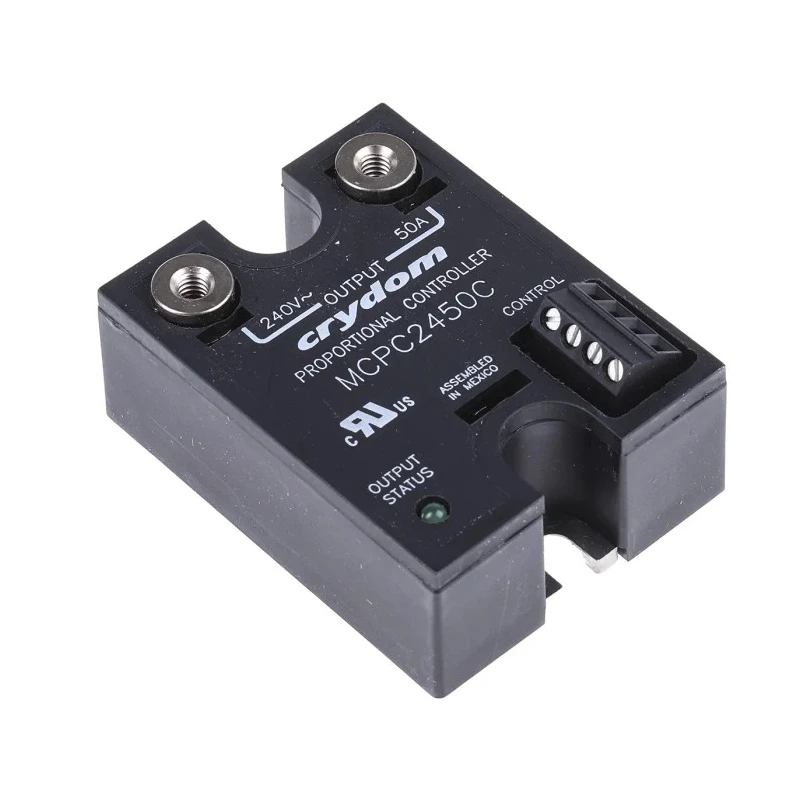

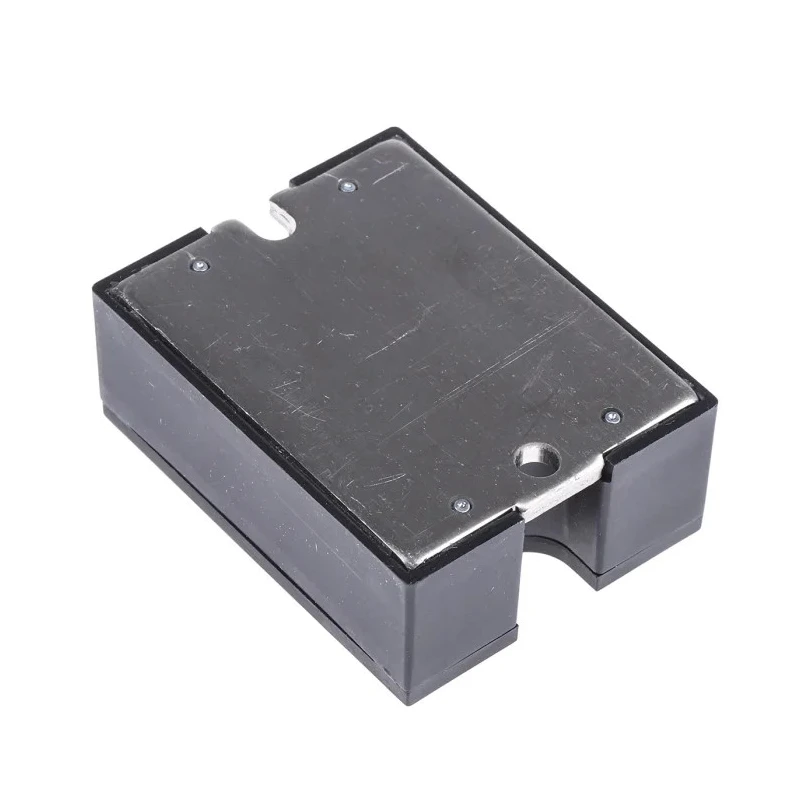

Crydom Solid State Relay 50A, Panel Mount, 280 Vrms Load, 32V DC Control MCPC2450C
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 19.8mm |
| Length | 45.7mm |
| Model | MCPC2450C |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | MCPC |
| Maximum Operating Temperature | 80°C |
| Capacitance | 10pF |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Maximum Load Current | 50A |
| Standards/Approvals | RoHS, CSA, UR |
| Minimum Control Voltage | 8V dc |
| Maximum Control Voltage | 32V dc |
| Off State Leakage Current | 7mA |
Key Features
- Rated for 50A maximum load current for demanding electrical switching applications.
- Panel mount design offers straightforward, secure installation in control enclosures.
- Offers a broad load voltage range up to 280 Vrms, suitable for various AC loads.
- Controls with a DC voltage input range from 8V to 32V DC for enhanced flexibility.
- Compact screw terminal connections ensure reliable and fast wiring.
- IP20 enclosure protects the relay from accidental contact and dust ingress.
- Wide operating temperature range from -20°C to +80°C for industrial environments.
- Low off-state leakage current and high reliability for continuous duty.
Product Description
The Crydom MCPC2450C Solid State Relay is a high-performance electrical switching solution designed for use in industrial automation, manufacturing machinery, and control panels. This relay is engineered to handle a maximum load current of 50A and provides safe, efficient control of AC circuits up to 280 Vrms. Its robust design ensures reliable operation in demanding applications where repeated mechanical switching may lead to wear and tear in electromechanical relays.
With a panel mount form factor, the MCPC2450C allows for fast and secure installation in control cabinets or equipment panels, making it suitable for upgrade or replacement projects in factory automation. The relay accepts a wide range of DC control voltages, from 8V up to 32V, accommodating standard PLC outputs and diverse control circuits. Its SCR output configuration delivers robust, reliable switching suited to both resistive and certain inductive loads.
Screw terminal connections make wiring straightforward and help maintain consistent, strong electrical contact, even in high-vibration locations. The IP20-rated housing provides a measure of protection against accidental finger contact as well as dust ingress, in line with typical control panel environments.
The MCPC2450C features a compact body with dimensions of 45.7 mm length, 22.6 mm width, and 19.8 mm height, enabling it to fit easily within densely packed enclosures. Its wide ambient operating temperature range from -20°C to +80°C ensures dependable performance in both temperature-controlled and unconditioned industrial sites.
Key technical highlights include low off-state leakage current of 7mA for precise switching, a phase angle control function for applications requiring soft starting, and high insulation and switching speed inherent to solid state technology. IP20 enclosure and RoHS, CSA, UR standards compliance guarantee suitability for a broad range of regulated environments.
This relay finds applications in industrial automation, robotics, process control, HVAC systems, lighting control, and any scenario requiring rapid, reliable, noiseless switching with long operational life.
Explore more innovative relay solutions and browse the full Crydom MCPC series in the Relays & Contactors category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Crydom MCPC2450C Solid State Relay is rated for a maximum load current of 50A.
This relay can handle a load voltage range of up to 280 Vrms, making it suitable for various AC loads.
It accepts a DC control voltage input range from 8V to 32V DC, providing flexibility for different control circuits.
The MCPC2450C features a panel mount design, allowing for straightforward and secure installation in control enclosures.
The dimensions of this model are 45.7 mm in length, 22.6 mm in width, and 19.8 mm in height.
This relay has an IP20 rating, which provides protection against accidental contact and dust ingress.
The operating temperature range for the MCPC2450C is from -20°C to +80°C, suitable for industrial environments.
The output type of this model is SCR (Silicon Controlled Rectifier), which is suitable for robust switching applications.
The off-state leakage current is 7mA, which contributes to its efficient switching capabilities.
The MCPC2450C complies with RoHS, CSA, and UR standards, ensuring its suitability for regulated environments.
This solid state relay is suitable for applications in industrial automation, process control, HVAC systems, and lighting control.
It features screw terminal connections, which facilitate reliable and fast wiring even in high-vibration environments.
