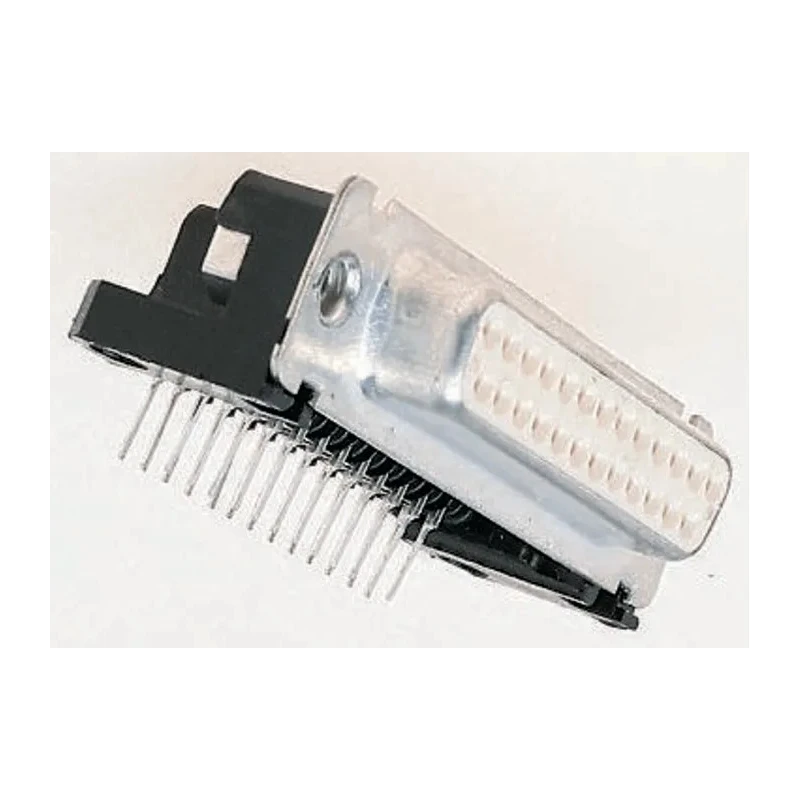

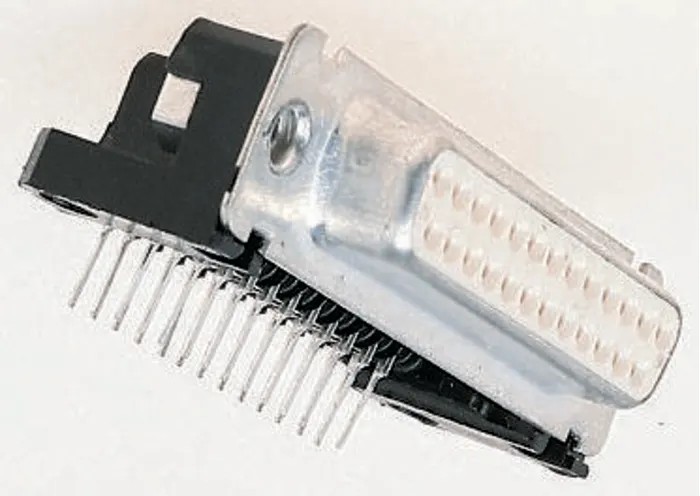

Cinch FD 15 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector Female FDAB-15S1AENT2/1

The Cinch FDAB-15S1AENT2/1 FD 15 Way Right Angle 2.76 mm Pitch Through Hole D-Sub Connector Female is a high-reliability PCB connector engineered for applications requiring robust electrical performance and EMI/RFI protection. Featuring 15 contacts, this right angle through hole D-sub connector is specifically designed for solder termination onto printed circuit boards, facilitating integration into critical electronic assemblies.

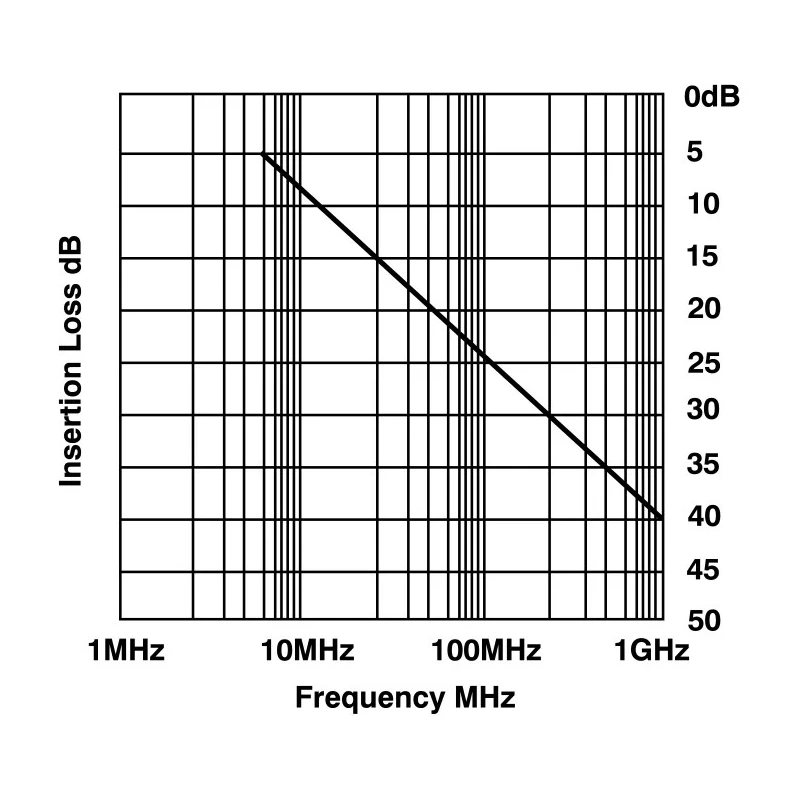

Each contact incorporates a 1000 pF ceramic capacitor filtration element, providing superior attenuation of EMI and RFI signals and limiting cable-borne interference. This performance aligns with MIL-STD-220 attenuation standards, making the connector interchangeable with standard 90° connectors in both industrial and military environments.

The housing is constructed from polyethylene terephthalate (PET), offering excellent mechanical strength, electrical insulation, and durability. Gold-plated turned pin contacts ensure stable and efficient conductivity, while a bright tin finish on the steel backshell provides additional shielding against electromagnetic disturbances. The potted construction enhances environmental protection, allowing use in hazardous settings.

Operational temperature flexibility from -25°C to 125°C ensures reliability across diverse industrial, laboratory, and commercial installations. The connector is UL94V-0 flammability rated, emphasizing safety and compliance for installations where fire resistance is essential.

This female connector, with right angle orientation and a 2.76 mm pitch, supports a 200V maximum rating and a 5A current per contact. It is suitable for use in scenarios such as computer interfacing, electronic instrumentation, communications, and military electronics. Termination is achieved through soldering for secure attachment and minimal signal loss.

Suitable for PCB mounting and solder termination. Provides 1000 pF ceramic capacitor filtration per contact for enhanced EMI/RFI protection. Meets MIL-STD-220 attenuation standards for quality performance. Manufactured with a polyethylene terephthalate housing for durability and high insulation.

Gold plated turned pin contacts and bright tin finish on steel backshell for reliable connectivity. Operates between -25°C to 125°C, suitable for demanding industrial or military applications. UL94V-0 rated for flammability, designed for hazardous environments.
