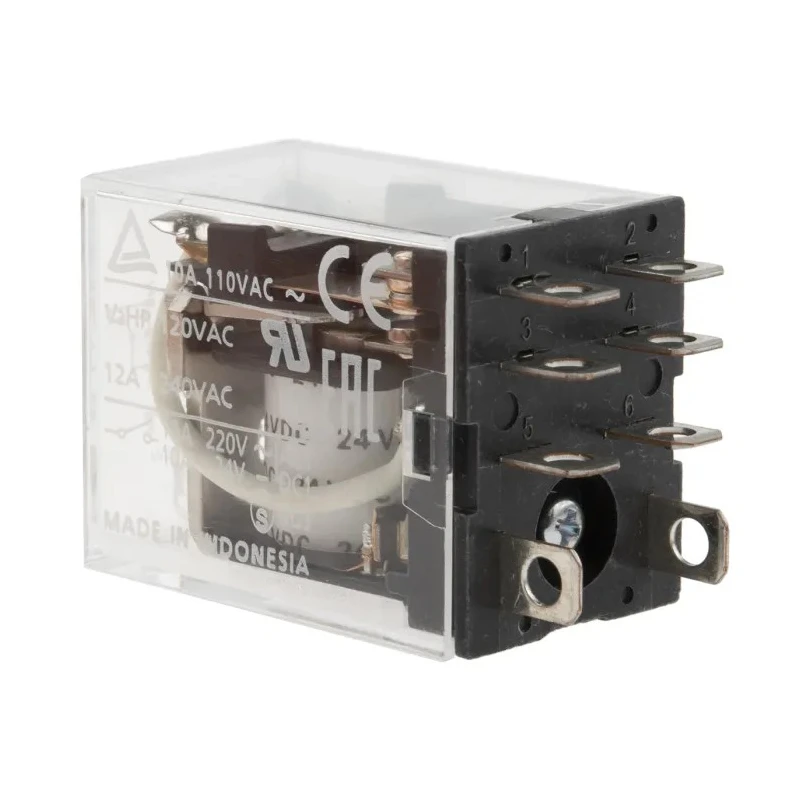

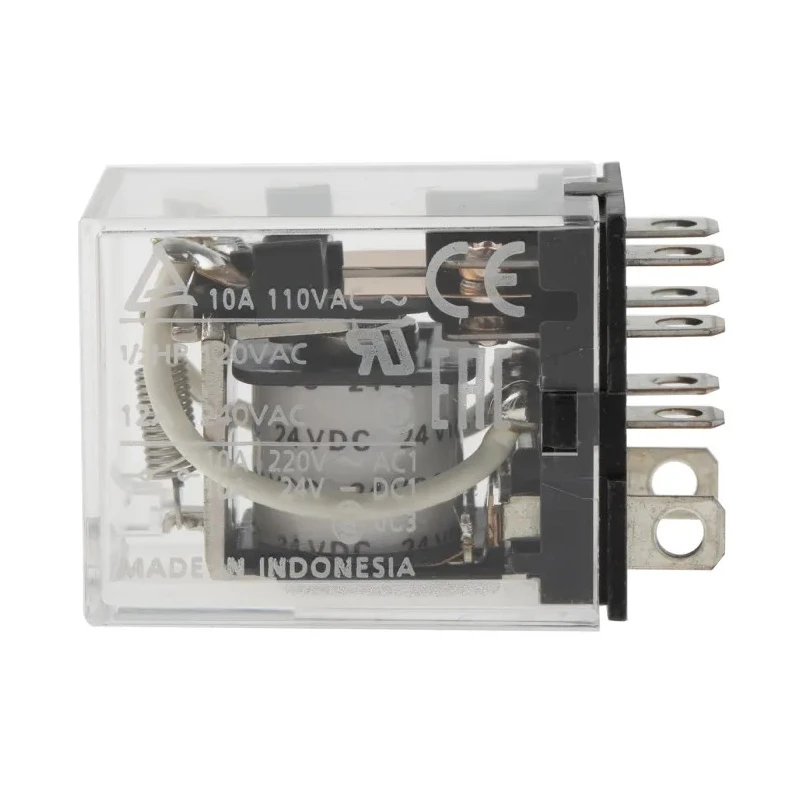

Omron Power Relay 24V DC Coil 10A DPDT Plug-In Type LY2 24VDC

The Omron LY2 24VDC Power Relay is a high-performance industrial relay engineered for reliable switching in a variety of demanding applications. With a 24V DC coil voltage and a robust 10A switching current capability, this DPDT (Double Pole Double Throw) relay offers outstanding versatility for electrical control circuits. Its plug-in terminal design makes it easy to install or replace in panels and equipment where quick maintenance is essential.

This relay features silver alloy contact material, ensuring low contact resistance, excellent conductivity, and a long service life. The device is built for durability and is capable of achieving up to 1800 switching cycles per hour, making it suitable for frequent and continuous operation scenarios. It also has a response time as low as 25ms for rapid switching, optimizing systems where timing is critical.

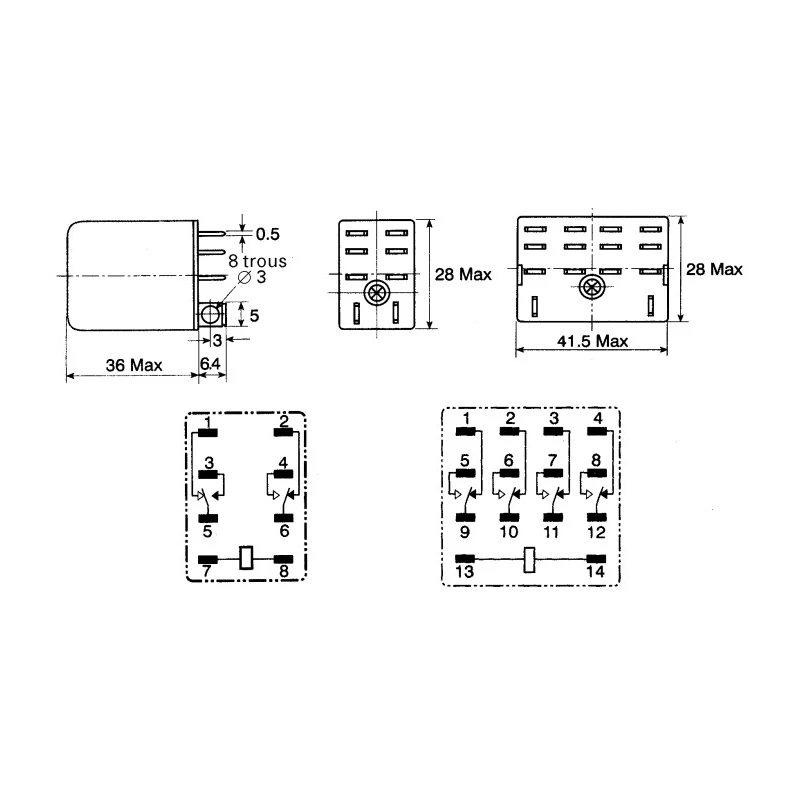

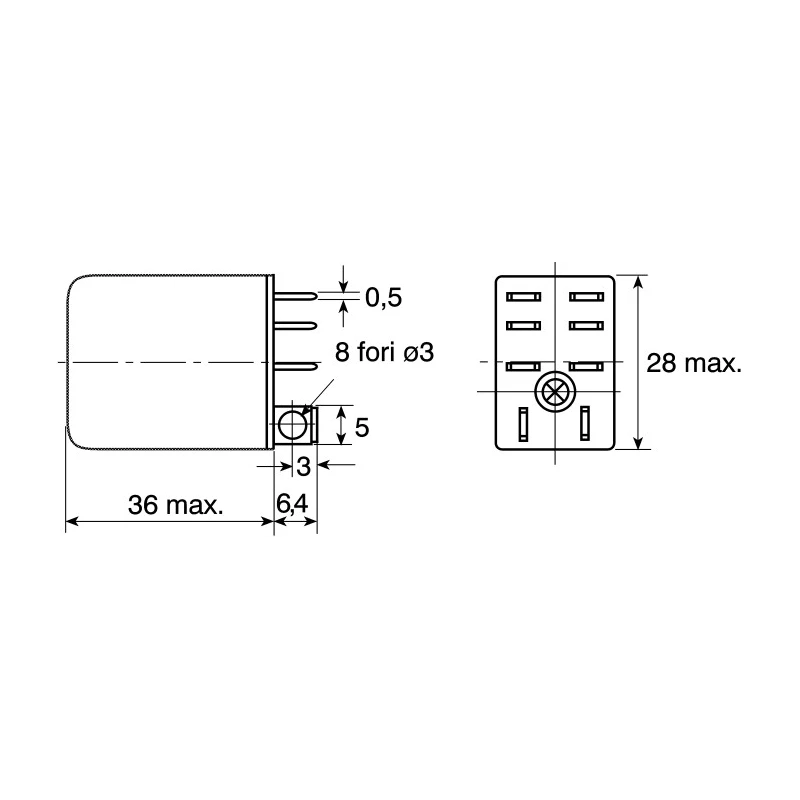

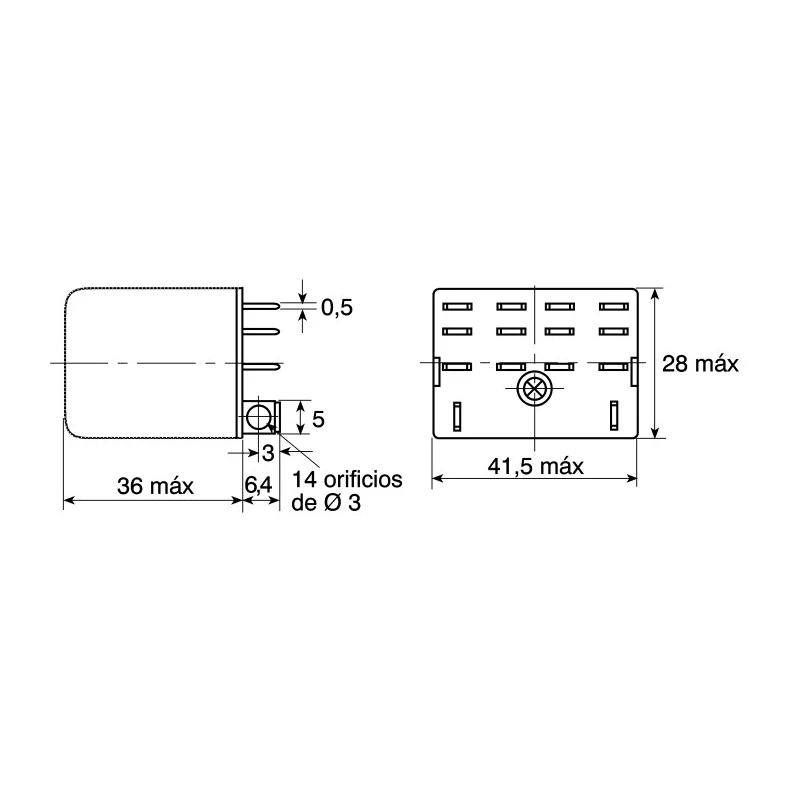

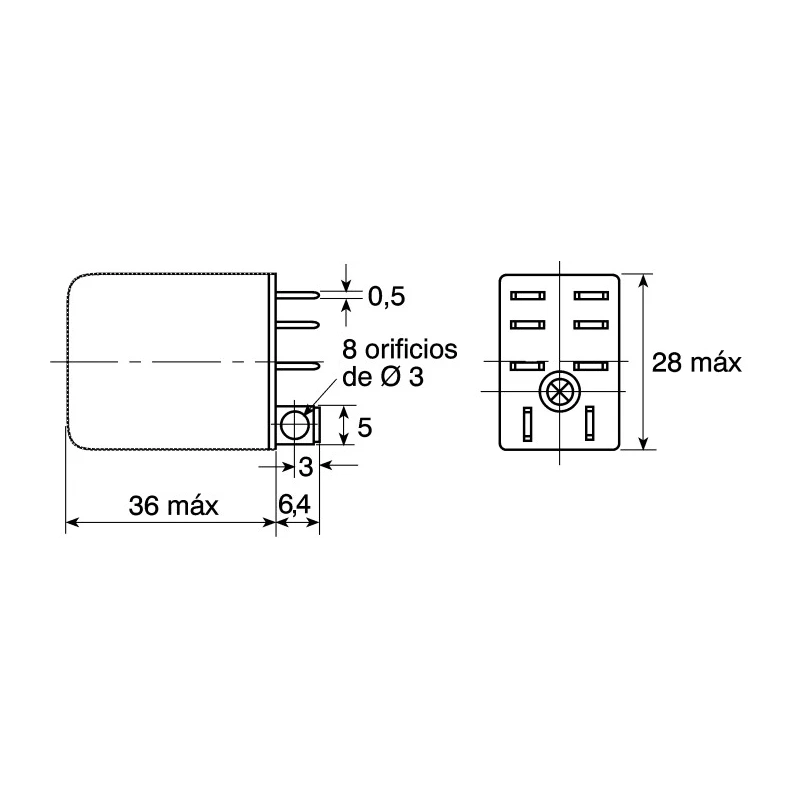

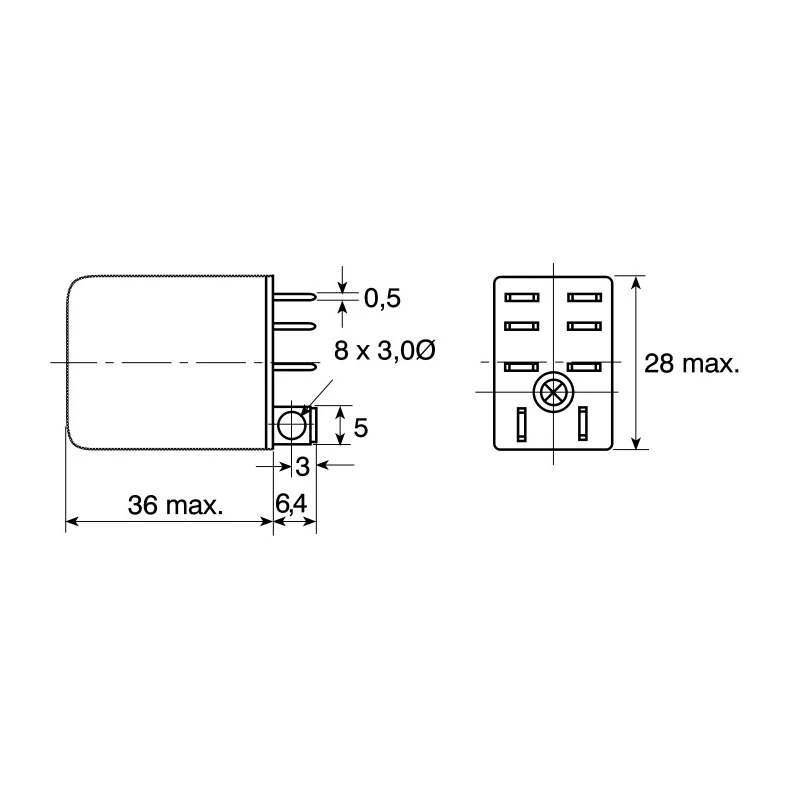

The LY2 24VDC relay can handle switching voltages up to 250V AC and 125V DC, enabling its use across a wide range of machinery and automation equipment. Its coil resistance of 650Ω and coil operating power of 900mW contribute to energy efficiency and ensure stable operation even under continuous use. With dimensions of 28mm length, 21.5mm width, and 42.4mm height, the relay’s compact construction fits in tightly arranged control panels without occupying excessive space.

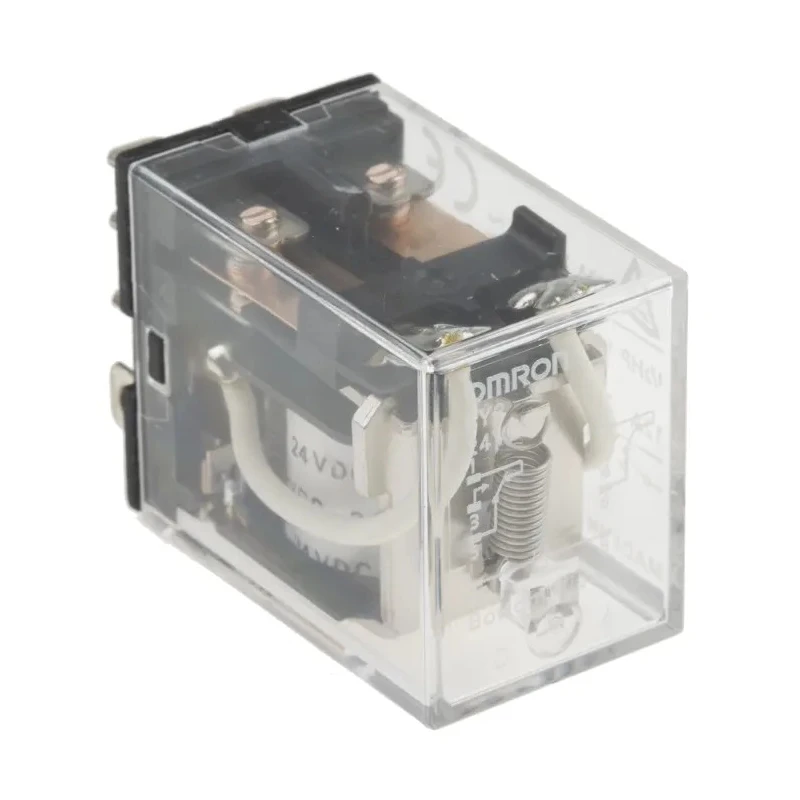

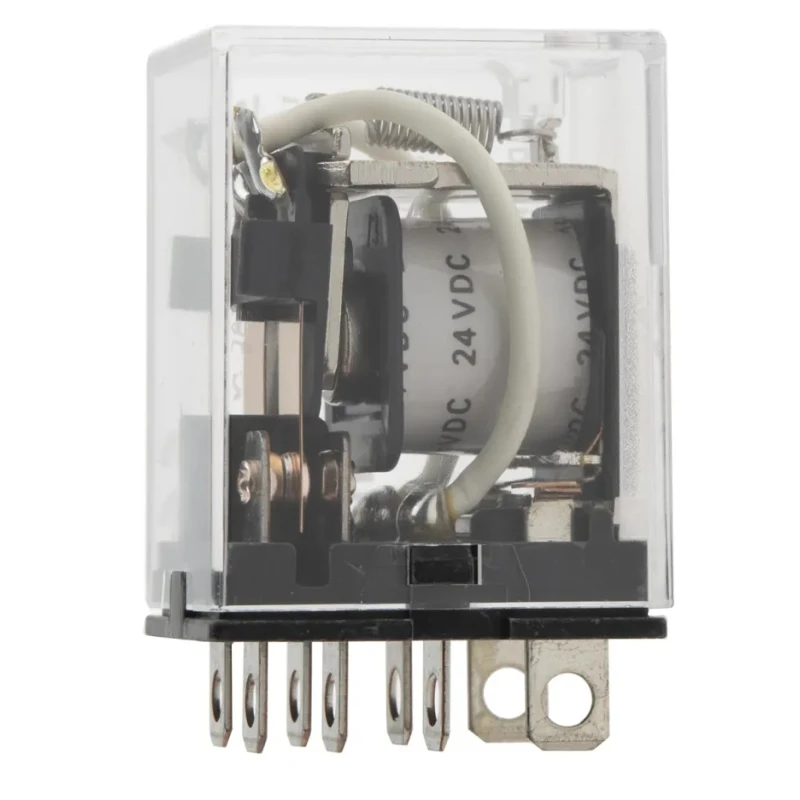

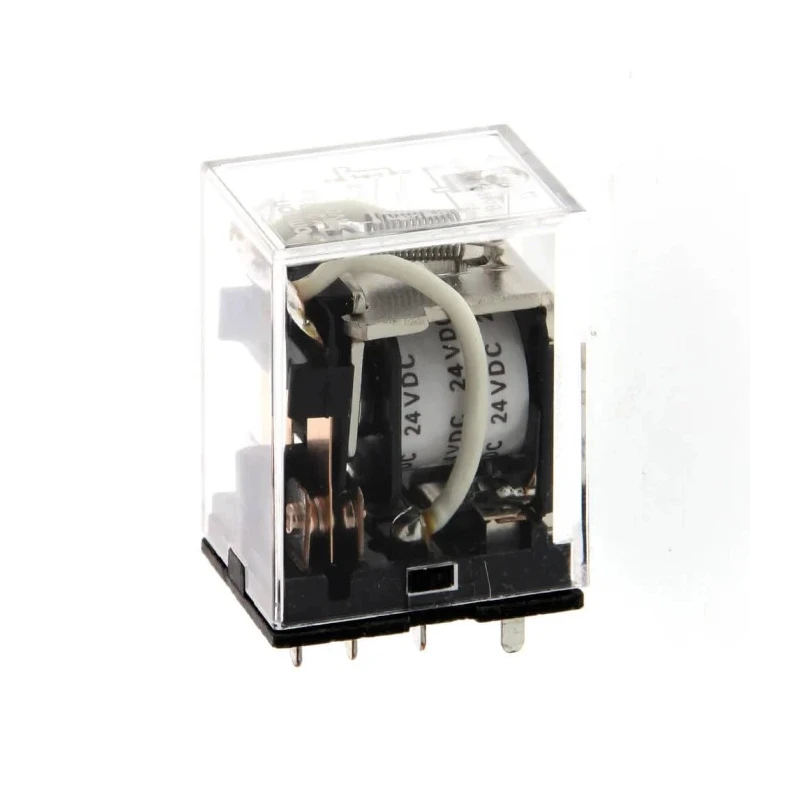

This relay’s robust construction allows for operation in harsh industrial conditions, with an ambient operating temperature ranging from -25°C to 55°C. Surge resilience up to 2000V mitigates the risks associated with power faults, further enhancing its dependability. The plug-in terminal type not only simplifies wiring but also allows secure and stable mounting, ensuring network reliability. The transparent casing offers clear visibility of internal mechanisms for inspection or diagnostics.

Industrial and commercial installations frequently utilize the Omron LY2 24VDC relay for automation control panels, HVAC systems, lighting control, pumping stations, food production, semiconductor manufacturing, and server management. Its compliance with RoHS directives and international approvals such as UL, CSA, VDE, and SEV ensures widespread acceptance in global markets and regulated projects.

Offering over 500,000 electrical life operations, along with up to 1800 cycles per hour, this relay is a trusted component for long-term switching demands. It is specifically designed for easy integration into 8-pin sockets and can also be soldered directly if necessary. With excellent resistance to surge voltages and reliable switching of both AC and DC loads, this relay stands out as a dependable choice for critical industrial control and automation systems.
