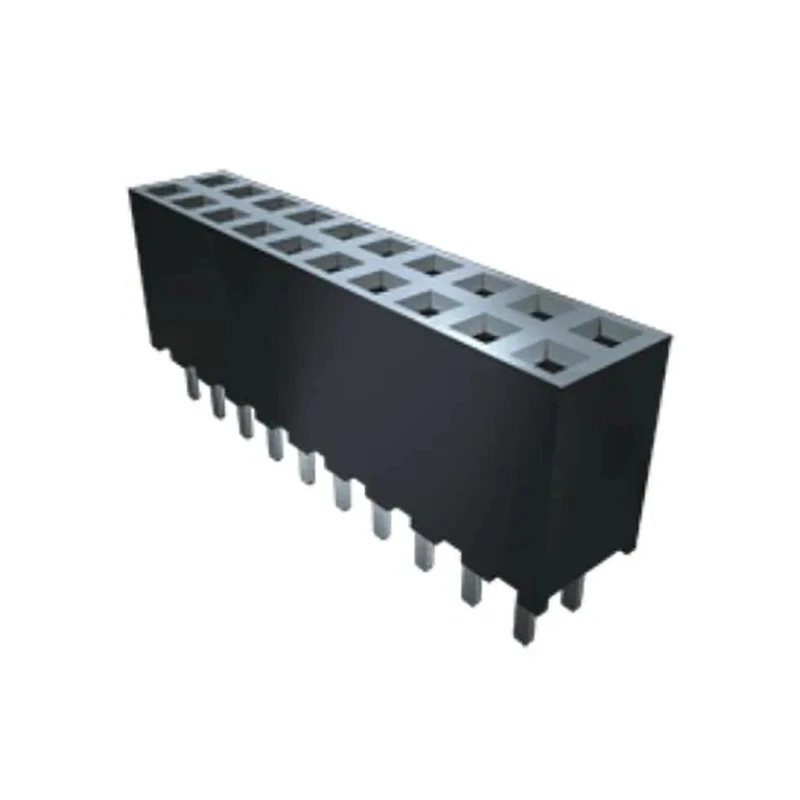

Samtec SQW Series Straight Surface PCB Socket, 26-Contact, 2 Row, 2 mm Pitch, Solder, 3.8A, 281V SQW-113-01-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 281V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.8A |
| Model | SQW-113-01-L-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SQW |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Cost-Effective Rugged Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Features 26 contacts across 2 rows, ensuring ample connectivity for PCB designs.
- Straight surface-mount configuration allows streamlined board-to-board connections in compact layouts.
- Solder termination provides robust mechanical retention and reliable electrical contact.
- LCP housing ensures thermal stability and mechanical durability under demanding conditions.
- Gold-plated phosphor bronze contacts deliver excellent conductivity and resistance to corrosion.
- Supports maximum current rating of 3.8A per pin, suitable for power and signal applications.
- Pitches at 2 mm for compatibility with common PCB assembly methods.
- Rated for voltages up to 281V, enhancing system versatility.
Product Description
The Samtec SQW-113-01-L-D is a straight surface PCB Socket from the SQW Series, designed for robust board-to-board connectivity in electronic assemblies. This socket features a compact 2 mm pitch, accommodating 26 contacts arranged in 2 rows, which supports high-density interconnects in modern printed circuit boards.
The device employs gold-plated phosphor bronze contacts, ensuring exceptional conductivity and resistance to oxidation - critical for reliable signal transmission in industrial and commercial equipment. A liquid crystal polymer (LCP) housing offers superior mechanical strength and thermal stability, maintaining performance under wide-ranging environmental conditions.
Solder termination provides a secure mechanical bond and electrical interface, simplifying installation and maintaining connection integrity over time. With a straight mounting orientation, this socket is optimized for direct board-to-board configurations, ideal for space-sensitive PCB layouts.
The SQW-113-01-L-D socket supports a current rating of up to 3.8A per pin and a voltage rating of 281V, making it suitable for both power and signal paths in industrial, automation, instrumentation, and advanced electronics applications. Its operating temperature range of -55°C to 125°C ensures reliable function in environments subject to cold or heat.
The socket is female-gendered and designed with a board-to-board connector system, offering flexibility in stacking or parallel PCB designs. The 2 mm pitch further enhances signal integrity and compatibility with contemporary assembly methods.
These sockets are frequently used in industrial controls, instrumentation, automation modules, electronic manufacturing, and custom PCB design projects requiring rugged, reliable connectors. The gold plating, LCP housing, and robust current/voltage ratings contribute to its suitability for mission-critical and high-performance devices.
For more PCB interconnect solutions, explore EnvMart’s Electronics Components category or browse Samtec products for further specialized connectors and sockets.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of the SQW-113-01-L-D PCB socket is 3.8A per pin.
This socket is rated for voltages up to 281V, making it suitable for various power and signal applications.
The contacts in this model are arranged with a pitch of 2 mm, which is compatible with common PCB assembly methods.
The SQW-113-01-L-D uses solder termination, providing a secure mechanical bond and reliable electrical connection.
The contacts are made of gold-plated phosphor bronze, while the housing is constructed from liquid crystal polymer (LCP).
The operating temperature range for this model is from -55°C to 125°C, allowing it to function in extreme conditions.
This PCB socket features 26 contacts arranged in 2 rows, facilitating ample connectivity for PCB designs.
The SQW-113-01-L-D has a straight orientation, optimized for direct board-to-board configurations.
This socket supports a board-to-board connector system, which allows for flexibility in stacking or parallel PCB designs.
It is frequently used in industrial controls, instrumentation, automation modules, and custom PCB design projects.
The SQW-113-01-L-D PCB socket is manufactured in India.
The contacts of this model are gold-plated, which enhances conductivity and resistance to corrosion.
