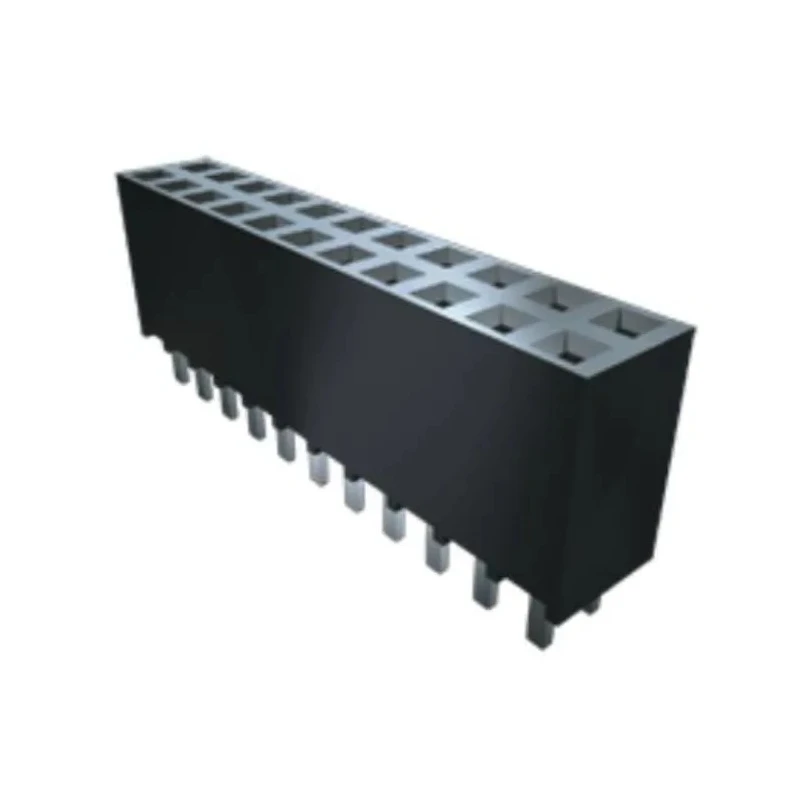

Samtec SSW Series 10-Contact Straight Through Hole PCB Socket, 2 Row, 2.54 mm Pitch, Solder, 655V, 4.7A SSW-105-22-G-D-VS

Samtec SSW-105-22-G-D-VS is a high-performance straight through hole PCB socket engineered for secure board-to-board connections in electronics, industrial, and laboratory settings. This socket accommodates 10 female contacts configured in two rows with a 2.54 mm pitch, making it suitable for modular circuit designs that require reliable signal transmission and robust mechanical alignment.

The socket features a liquid crystal polymer (LCP) housing, ensuring excellent chemical resistance and thermomechanical stability across a wide temperature range from -55°C to 125°C. Its phosphor bronze contacts, plated with gold, provide enhanced conductivity, corrosion resistance, and longevity, making it ideal for demanding electronic applications.

Supporting a maximum current of 4.7A per pin and a voltage rating of up to 655V, the Samtec SSW-105-22-G-D-VS delivers safe and efficient electrical performance. The straight orientation and through hole design facilitate straightforward PCB integration, allowing for secure solder mounting during assembly. Precision 2.54 mm pitch and dual-row configuration guarantee exact fitment and robust contact engagement without risk of misalignment.

The product is designed to meet industrial-grade requirements for signal integrity, modularity, and environmental durability. Its board-to-board connector system enables flexible circuit architecture in manufacturing, instrumentation, automation, and test equipment environments. The socket strip is manufactured to ensure both standard and low insertion force contacts, supporting ease of assembly and serviceability.

This PCB socket is suitable for use in applications such as industrial controllers, laboratory analyzers, commercial electronics, automation panels, and prototyping boards. Its versatile mounting and electrical parameters make it an integral component in advanced circuit design where reliability, precision, and ease of integration are essential. The Samtec SSW-105-22-G-D-VS is engineered for long-term stability and repeatability in operation-critical installations.

Features a straight orientation for easy PCB installation. Accommodates 10 female contacts for secure electrical connections. 2-row socket strip with 2.54 mm pitch ensures precise alignment. Supports a maximum current rating of 4.7A per pin and voltage up to 655V.

Liquid crystal polymer housing provides excellent thermal and electrical performance. Phosphor bronze contacts with gold plating ensure optimal conductivity and durability. Operating temperature ranges from -55°C to 125°C for versatile electronics use.

Solder termination type suitable for through hole mounting in PCB designs. Board-to-board connector system enhances modular circuit design. Ideal for industrial, commercial, and laboratory PCB connectivity requirements. Explore more PCB Sockets and board-to-board connectivity solutions from Samtec in the Electronics Components section on EnvMart.
