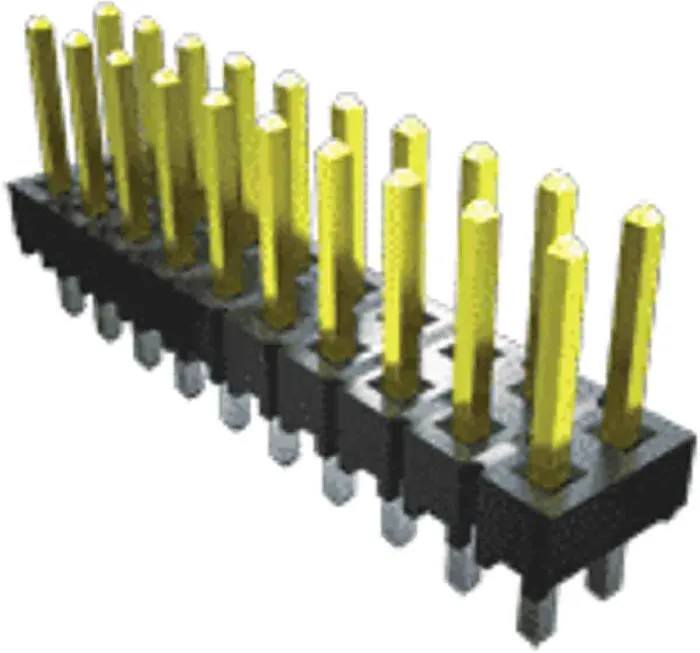

Samtec Straight Through Hole Pin Header, 3 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded, TSW-103-15-T-S

Free Delivery in India | Lowest Global Shipping Charges

Samtec Straight Through Hole Pin Header, 3 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded, TSW-103-15-T-S

Name: Samtec Straight Through Hole Pin Header, 3 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded, TSW-103-15-T-S
Brand: Samtec
SKU: 83896
Price: 0.35 USD
Availability: InStock



Category PCB Pin Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	550V
Brand	Samtec
Orientation	Straight
Model	TSW-103-15-T-S
Mount Type	Through Hole
Housing Material	Glass Filled Polyester
Contact Material	Phosphor Bronze
Series	TSW
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	3
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Operating temp range	-55 °C to +125 °C with Gold -55 °C to +105 °C with Tin
Plating used	Au or Sn over 50 μ" (1.27 μm) Ni

Key Features

Offers 3 contacts arranged in a single row with a 2.54 mm pitch for efficient signal routing.
Features a straight through hole mounting style for reliable PCB integration.
Constructed with a glass filled polyester housing for enhanced mechanical strength and durability.
Terminals are made from phosphor bronze and plated with gold for optimal conductivity and corrosion resistance.
Supports an operating voltage up to 550 V and temperature range from -55°C to 125°C.
Unshrouded and male contact configuration, suitable for general and industrial electronic assembly.

Product Description

The Samtec TSW-103-15-T-S is a high-quality straight through hole pin header specifically engineered for robust and versatile PCB interconnections. With a 2.54 mm pitch and three contacts in a single row, it is ideal for applications that require compact and reliable signal transmission on printed circuit boards. Its through hole configuration ensures secure mounting and dependable electrical performance in both industrial and commercial environments.

This pin header utilizes a glass filled polyester housing, providing high mechanical strength and resistance to thermal stress. The pins are made from durable phosphor bronze, plated with gold to ensure low contact resistance, superior signal integrity, and long-term corrosion protection, even in challenging conditions. The unshrouded male contacts facilitate easy board-to-board or wire-to-board connectivity with a range of compatible sockets.

The TSW series header is designed for a wide range of board-to-board applications where space, reliability, and signal clarity are critical. The 2.54 mm standard pitch supports universal PCB mating, while the straight orientation ensures straightforward soldering during assembly. The device will operate reliably within a temperature range of -55°C to 125°C and withstand voltages up to 550 V, meeting demanding industrial requirements.

Extensive gold plating over a nickel base further enhances signal transmission, making the header suitable for use in precision electronics, automation, laboratory test equipment, and communication systems. Its unshrouded design allows for maximized flexibility in panel and PCB layouts, easing troubleshooting and modifications during prototyping or repair.

The Samtec TSW-103-15-T-S pin header finds application across diverse sectors such as industrial automation controls, embedded processor boards, instrumentation, and any scenario where secure, reliable PCB connection is required. Its mechanical and electrical performance deliver continuous, stable interconnections essential for modern electronic assemblies.

Explore more PCB connectivity solutions and technical components from Samtec and leading global brands using the EnvMart electronics catalog.

Explore more products in our PCB Pin Header category.
