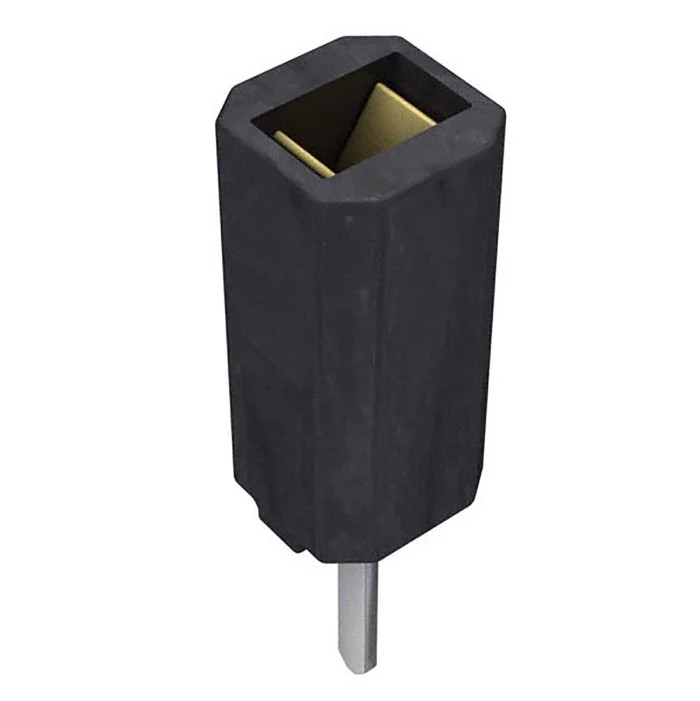

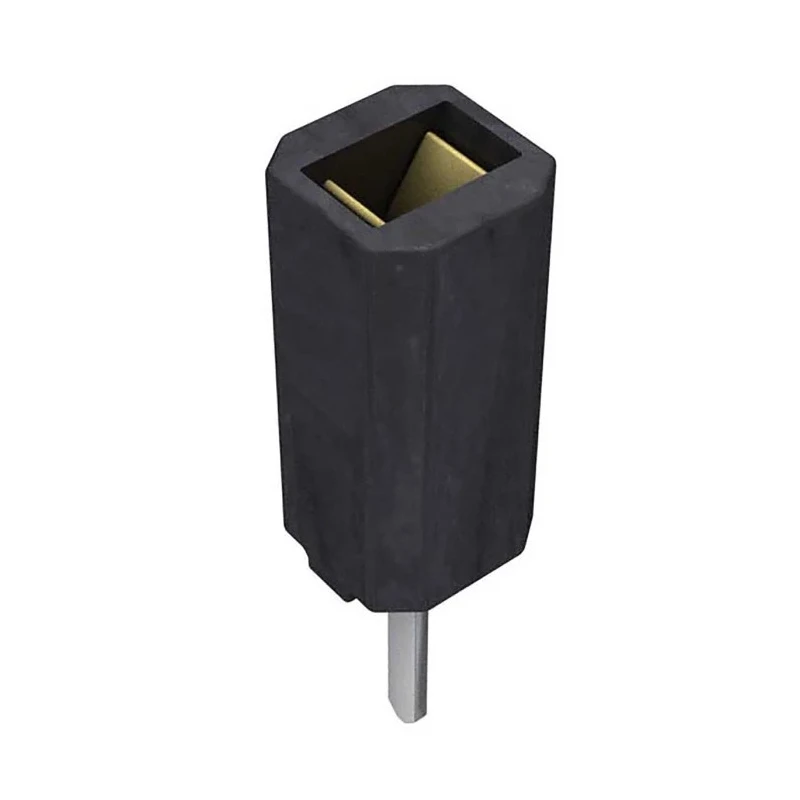

Samtec SSA Series Straight Through Hole PCB Socket, 7-Contact, 1 Row, 2.54 mm Pitch, Solder, Polyester, Female, SSA-107-S-T

The Samtec SSA-107-S-T straight through hole PCB socket is a high-performance connector ideal for board-to-board connections in electronic assemblies, instrumentation, and industrial devices.

Each contact in the SSA-107-S-T socket is made from durable phosphor bronze and is plated with tin, offering excellent electrical conductivity and resistance to environmental factors. The connector's housing is constructed from black PET polyester, rated UL 94V-0 for flammability, ensuring longevity and safety even in challenging operational conditions.

The socket is designed for through hole mounting, providing a robust mechanical attachment to the PCB, and is compatible with standard 2.54 mm pitch layouts. This makes integration into existing designs seamless and straightforward. The straight orientation allows for consistent alignment and ease of assembly during manufacturing.

Solder termination facilitates reliable electrical contact and is compatible with wave soldering processes, supporting lead-free requirements. With an operating temperature range from -55°C to 105°C, the SSA-107-S-T socket performs reliably across various industrial and electronic environments.

Additional highlights include heat deflection temperature rated at 215°C under 1.8 MPa pressure, ensuring it withstands thermal stresses during soldering and prolonged operation. The connector is RoHS compliant, reflecting its suitability for modern, environmentally regulated applications.

Reliable board-to-board connections for PCB assemblies. 7 female contacts, single row, straight orientation with secure through hole mounting. 2.54 mm pitch enabling standard interface compatibility. PET polyester housing for enhanced durability and flammability protection.

Phosphor bronze contacts plated with tin for optimal performance. Wide operational temperature range (-55°C to 105°C) for industrial use. Solder termination supports lead-free and wave soldering processes. Heat deflection temperature of 215°C @ 264 psi provides thermal stability.

RoHS compliant for environmental safety.

This PCB socket is ideal for use in electronic manufacturing, laboratory instrumentation, industrial controllers, and commercial electronics requiring reliable board-to-board connection solutions. Explore more PCB Sockets and Samtec interconnection products in the Electronics Components category at EnvMart.
