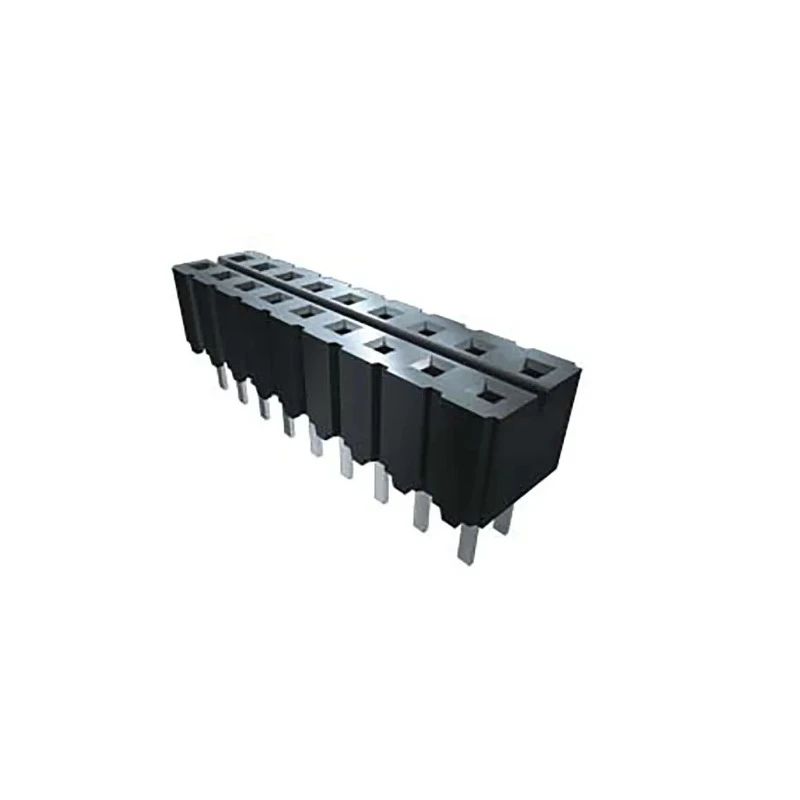

Samtec CES Series Straight Through Hole PCB Socket 10-Contact 2 Row 2.54 mm Pitch Solder CES-110-01-G-D

The Samtec CES-110-01-G-D is a straight through hole PCB socket designed for demanding electronic applications that require reliable signal and power interconnects between printed circuit boards. This socket is part of the CES Series, known for its low profile and closed entry design, making it an industry choice for compact and high-density board-to-board connections.

This PCB socket is engineered with 10 contacts arranged in 2 rows, spaced at a standard 2.54 mm pitch to facilitate compatibility with a wide range of PCBs. The contacts themselves are manufactured from high-quality phosphor bronze and finished with a gold plating, providing excellent electrical conductivity and strong resistance to corrosion. The insulation housing is constructed from black glass filled polyester, combining mechanical durability with reliable electrical isolation.

The device features a straight through hole mounting style, ensuring a robust mechanical connection to the PCB and facilitating secure solder joints during assembly. Capable of supporting current ratings up to 5.5A per contact and operating at voltages up to 400V, this socket is suitable for both power and signal transmission in complex electronic assemblies. It functions reliably within a wide operating temperature range from -55°C to 125°C, meeting the requirements of industrial, laboratory, and commercial electronic environments.

Its compliance with RoHS standards certifies that the CES-110-01-G-D contains no hazardous substances, making it a suitable choice for modern environmentally-conscious designs. The product’s board-to-board connector system supports flexible design requirements while ensuring stable and secure interconnection of PCBs. Its robust construction makes it highly resistant to physical and environmental stresses, providing long-term performance in challenging usage scenarios.

Typical use cases include use in industrial control panels, instrumentation, test and measurement devices, computing equipment, and other electronics where high-reliability PCB interconnections are mandatory. The CES-110-01-G-D socket is applicable for both prototyping and volume production, providing consistent quality and dependable connectivity for applications that demand precision and durability. Explore the full range of Samtec PCB Sockets and CES series connectors on EnvMart for all your electronic assembly needs.
