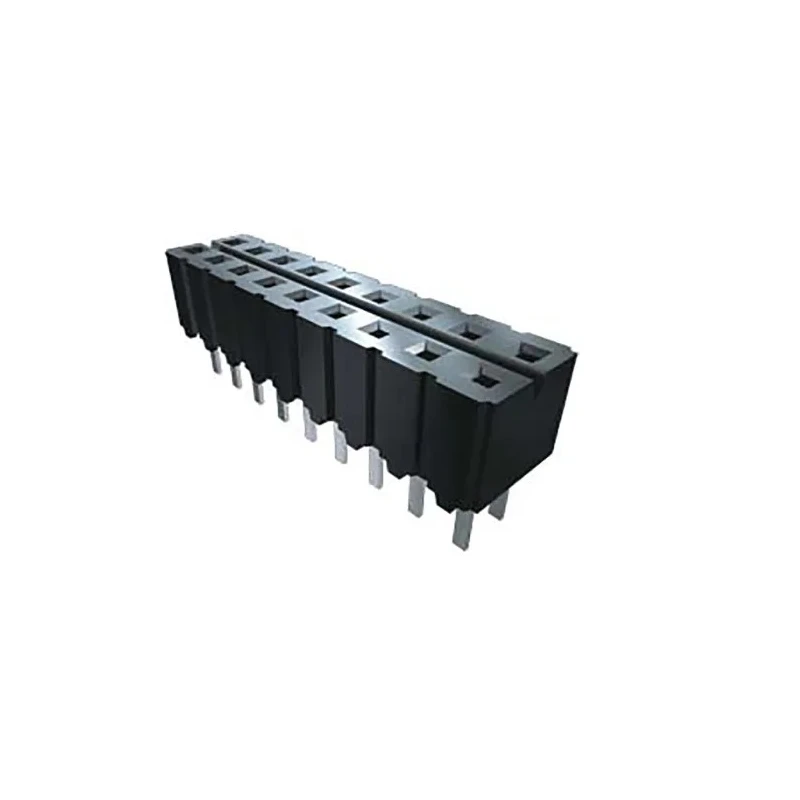

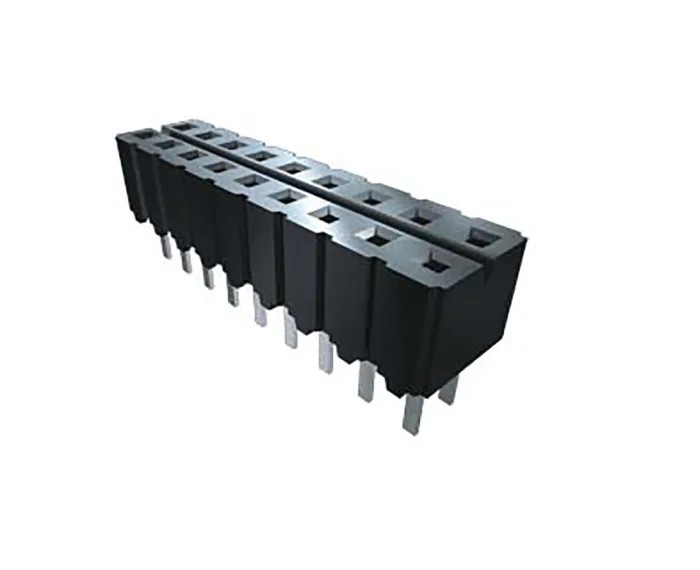

Samtec CES Series Straight Through Hole PCB Socket, 8 Contacts, 2 Rows, 2.54 mm Pitch, 400V, 5.5A, Solder CES-108-01-S-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 400V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 5.5A |
| Model | CES-108-01-S-D |
| Mount Type | Through Hole |
| Housing Material | Black Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | CES |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Connector System | Board-to-Board |
Key Features
- Provides reliable connectivity for board-to-board applications.
- Features a straight through hole mounting design for robust soldering.
- Rated for 5.5A current per pin and 400V operation for demanding environments.
- Constructed with phosphor bronze contacts and gold plating for enhanced conductivity.
- Housing made of black glass filled polyester for durability and insulation.
- Accommodates 8 contacts in two rows, with a 2.54 mm pitch for industry compatibility.
- Operating temperature range from -55°C to 125°C, suitable for extreme conditions.
- RoHS compliant for environmental safety.
Product Description
The Samtec CES-108-01-S-D Straight Through Hole PCB Socket is engineered for precision and reliability in demanding board-to-board connector applications. This socket features 8 contacts arranged in 2 rows, with a standard 2.54 mm pitch that supports broad compatibility with PCB designs across industrial, laboratory, and commercial electronics.
With a robust current rating of 5.5A per pin and operation at up to 400V, this socket is suitable for both signal and power connections. Straight through hole mounting ensures secure solder attachment and mechanical stability, making it ideal for environments subject to vibration or thermal cycling.
The contacts are constructed from phosphor bronze, a material known for its strength and conductivity, and are plated with gold to reduce contact resistance and prevent corrosion. The socket body is molded from black glass-filled polyester, providing thermal resistance and electrical insulation.
The design incorporates a closed entry low profile, supporting safe lead-free soldering and protecting the contacts from accidental damage during assembly. The operating temperature range spans from -55°C to 125°C, accommodating electronic systems exposed to variable industrial conditions.
This connector is RoHS compliant, aligning with environmental regulations for hazardous substance management. Primary applications include industrial control boards, laboratory equipment, manufacturing interfaces, and commercial electronics requiring secure board-to-board connections.
Reliable PCB socket for board-to-board connectivity and signal/power transmission. Straight through hole style for high-integrity soldering and mechanical durability. Gold-plated phosphor bronze contacts ensure lasting electrical performance.
Robust housing with glass-filled polyester for insulation and strength. Supports 2.54 mm standard pitch - compatible with most PCB layouts. Explore the full range of PCB Sockets and industrial connectors in EnvMart's Electronics & Electricals category for advanced engineering solutions by Samtec.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This socket has a current rating of 5.5A per pin, making it suitable for both signal and power connections.
The CES-108-01-S-D is rated for a maximum voltage of 400V, suitable for demanding applications.
It features contacts made of phosphor bronze with gold plating, and the housing is constructed from black glass-filled polyester.
The pitch size of this socket is 2.54 mm, which is compatible with standard PCB layouts.
The operating temperature range for the CES-108-01-S-D socket is from -55°C to 125°C, accommodating various industrial conditions.
This model features 8 contacts arranged in 2 rows, supporting board-to-board connections.
The CES-108-01-S-D uses a straight through hole mounting design, ensuring robust soldering and mechanical stability.
Yes, this socket is RoHS compliant, aligning with environmental regulations for hazardous substance management.
The termination type for this model is solder, which is standard for through hole mounting.
This socket is suitable for applications in industrial control boards, laboratory equipment, and commercial electronics requiring secure board-to-board connections.
The orientation of this socket is straight, designed for easy installation and reliable connectivity.
The CES-108-01-S-D meets RoHS standards, ensuring compliance with regulations regarding hazardous substances.
