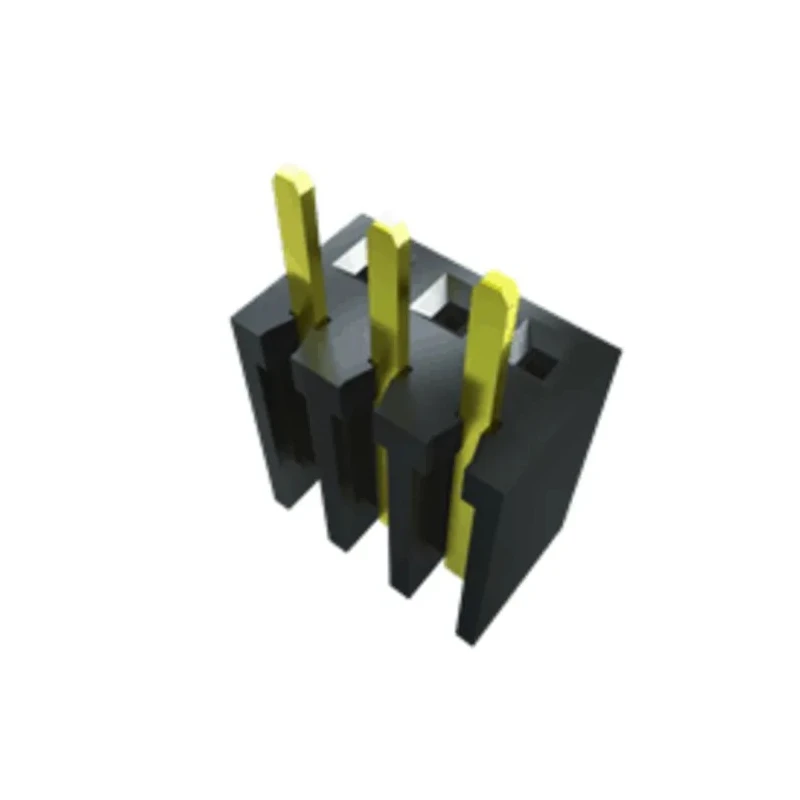

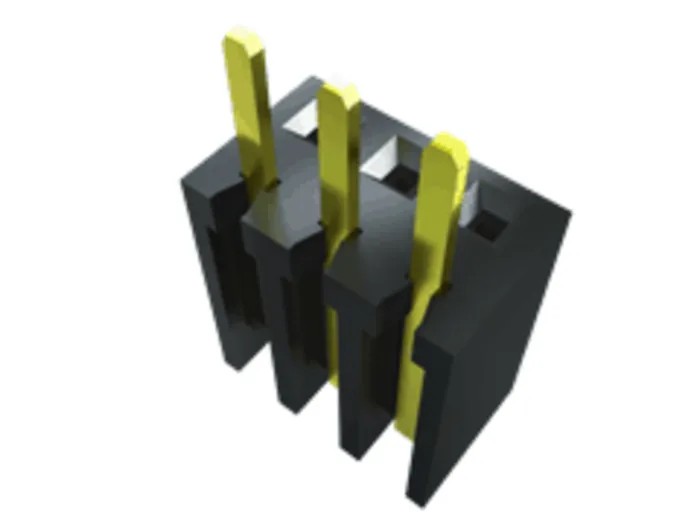

Samtec BSW Series Straight Surface PCB Socket, 6 Contacts, 2 Rows, 2.54mm Pitch, Solder, Black Thermoplastic BSW-103-04-S-D

The Samtec BSW-103-04-S-D is a high-quality straight surface PCB socket engineered for precise board-to-board connectivity in advanced electronic assemblies. With a total of 6 contacts arranged in 2 rows and a standard pitch of 2.54mm, this socket is designed to facilitate reliable signal transfer and enhance integration in circuit boards.

Its black thermoplastic insulation provides robust mechanical strength and excellent thermal characteristics, safeguarding electronic components even under challenging operating conditions. The contacts are fabricated from phosphor bronze, offering both durability and superior electrical conductivity, and are coated with gold over tin plating to protect against corrosion and ensure stable long-term performance.

The surface mount termination type streamlines the installation process, saving assembly time and supporting modern PCB manufacturing requirements. The socket’s straight orientation and bottom entry strip design enable it to fit seamlessly into circuit layouts where precise spatial alignment is critical.

Capable of performing across a wide temperature spectrum from -55°C to 125°C, the Samtec BSW-103-04-S-D excels in environments subject to thermal fluctuations, making it ideal for industrial, laboratory, and commercial electronic applications including instrumentation, automation controls, and embedded systems.

This product adheres to RoHS regulations, confirming its role in sustainable and environmentally conscious manufacturing practices. Its compact footprint and reliable connections make it a favored choice for designers looking to maintain high-performance standards while enabling dense PCB layouts.

Explore more PCB sockets, connectors, and electronic component solutions from Samtec and the PCB Socket category on EnvMart for broad compatibility with various PCB designs.
