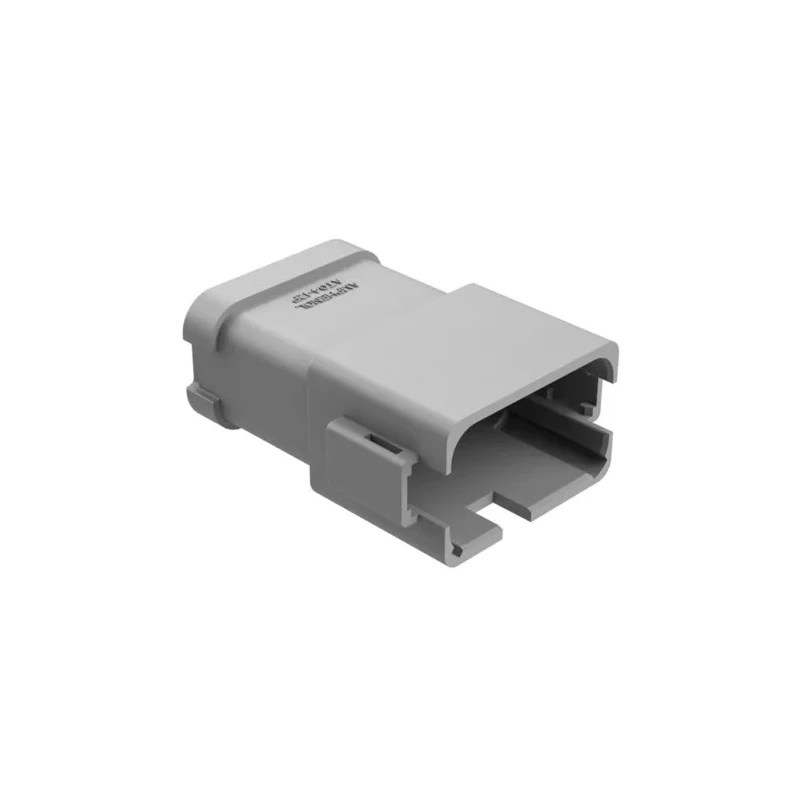

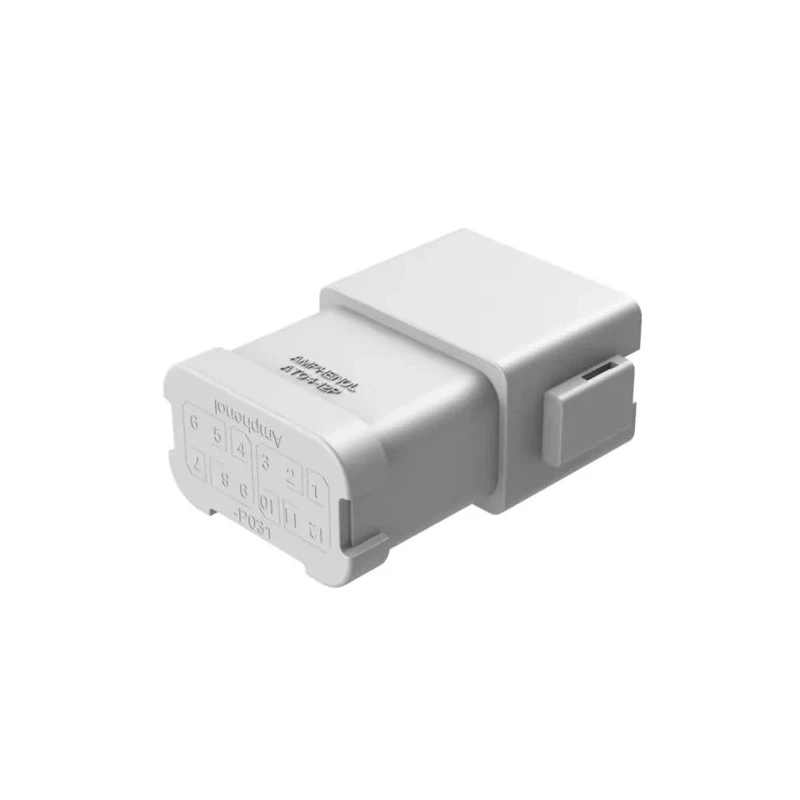

Amphenol Industrial AT04 Automotive Connector Male Grey Cable 12 Way Crimp Termination AT04-12PA-P031
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 0.145in |
| Brand | Amphenol Industrial |
| Colour | Grey |
| Current | 13A |
| Height | 22.2mm |
| Model | AT04-12PA-P031 |
| Depth | 52.4mm |
| IP Rating | IP67 |
| Width | 40.5mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | AT04 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Contact Plating | Gold Plated |
| Number of Contacts | 12 |
Key Features
- Designed for demanding automotive and industrial applications.
- Features a sealed integrated bussed feedback assembly for environmental protection.
- Supports up to 13A current across 12 contacts for reliable power distribution.
- Rectangular thermoplastic housing with integrated latch and wedgelock ensures secure mating and contact retention.
- Gold-plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- IP67 ingress protection enables installation in harsh environments.
- Wide operating temperature range from -55°C to 125°C for versatile use.
- Suitable for marine, heavy-duty vehicles, diagnostic, energy, military, and agricultural equipment.
Product Description
The Amphenol Industrial AT04-12PA-P031 automotive connector is engineered for harsh environments, offering a robust 12-way male cable connection with crimp termination. Designed for automotive, marine, transportation, diagnostic systems, alternative energy, military, and agricultural markets, it provides a reliable bussed pathway with high environmental sealing.
This connector features a rectangular thermoplastic housing in grey, integrated latch for secure mating, and included wedgelock for contact alignment and retention. With gold-plated copper alloy contacts and IP67 protection, it ensures stable performance and resistance to water and dust, ideal for rugged industrial and mobile use.
Operating at up to 13A current with 12 contacts and 2 rows, the AT04-12PA-P031 is suitable for splice/tap block applications, data feedback, and power distribution across demanding networks. Its wide operating temperature range of -55°C to 125°C allows year-round operation in extreme conditions. The housing's precise dimensions (height: 22.2mm, width: 40.5mm, depth: 52.4mm) fit compact setups while maintaining durability.
Crimp termination type simplifies field installation and ensures robust electrical connections. The connector mates with standard AT Series plugs and other industry-standard connectors, facilitating system integration and flexibility. Gold-plated contacts help prevent oxidation and ensure long-term conductivity, making this connector suitable for extended outdoor or high-vibration environments.
Amphenol Sine Systems' HYPERBUSS AT Series represents a cost-effective solution for professionals seeking high-performance electrical connectors with superior environmental seals, reliable contact retention, and versatile applications across sectors such as construction, water treatment, commercial vehicles, and laboratory instrumentation.
12-way male cable connector with crimp termination for versatile power and data distribution. Integrated bussed feedback assembly and wedgelock ensure robust contact alignment and secure mating. Thermoplastic housing, IP67 protection, and operating range from -55°C to 125°C support challenging field conditions.
Gold-plated copper alloy contacts provide enhanced conductivity and resist corrosion in industrial and marine environments. Compatible with standard AT Series plugs for system flexibility and easy expansion.
Choose Amphenol Industrial AT04-12PA-P031 for reliable performance in automotive, industrial, marine, and agricultural applications. Explore more Automotive Connectors and Amphenol Industrial products in the EnvMart catalog for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports up to 13A current across its 12 contacts, ensuring reliable power distribution.
The AT04-12PA-P031 has an IP67 ingress protection rating, making it suitable for installation in harsh environments resistant to water and dust.
The dimensions of this connector are 22.2mm in height, 40.5mm in width, and 52.4mm in depth.
It features a thermoplastic housing and gold-plated copper alloy contacts, providing excellent conductivity and corrosion resistance.
The connector operates effectively within a temperature range of -55°C to 125°C, allowing for versatile use in extreme conditions.
This connector utilizes a crimp termination type, which simplifies field installation and ensures robust electrical connections.
This model features 12 contacts arranged in 2 rows, facilitating versatile power and data distribution.
Yes, it mates with standard AT Series plugs and other industry-standard connectors, allowing for system flexibility and easy expansion.
It is designed for automotive, marine, transportation, diagnostic systems, alternative energy, military, and agricultural markets.
The gold plating on the contacts helps prevent oxidation and ensures long-term conductivity, making it suitable for outdoor or high-vibration environments.
This connector complies with RoHS standards, ensuring it meets environmental regulations for hazardous substances.
The country of origin for this connector is China.
