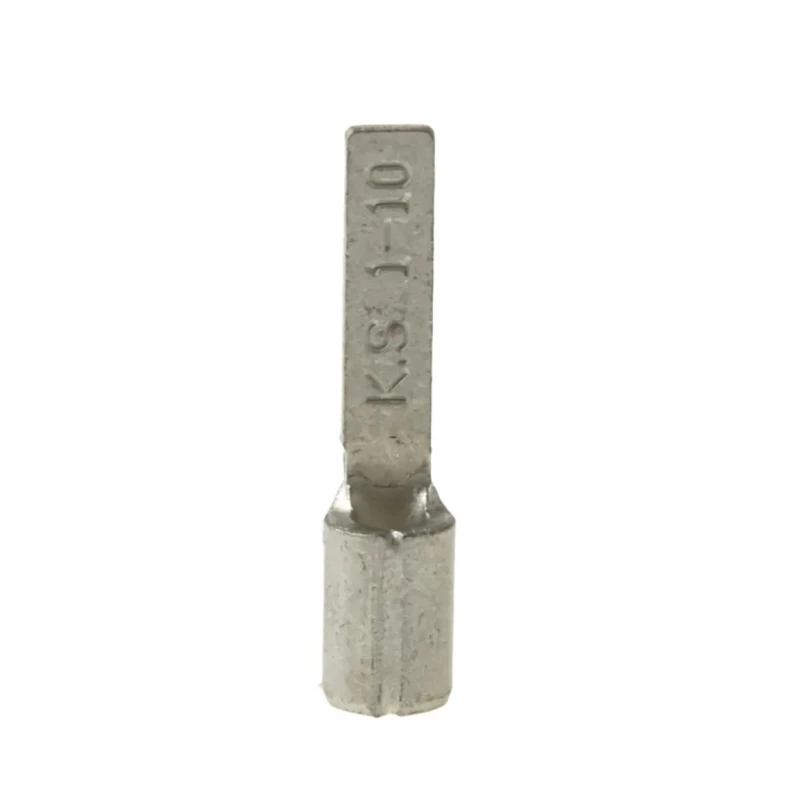

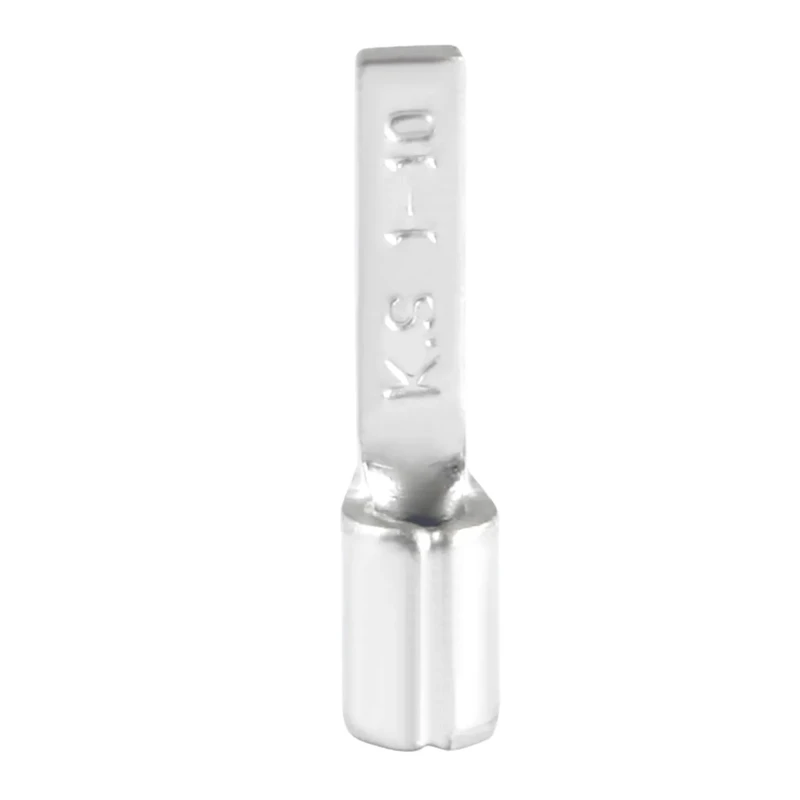

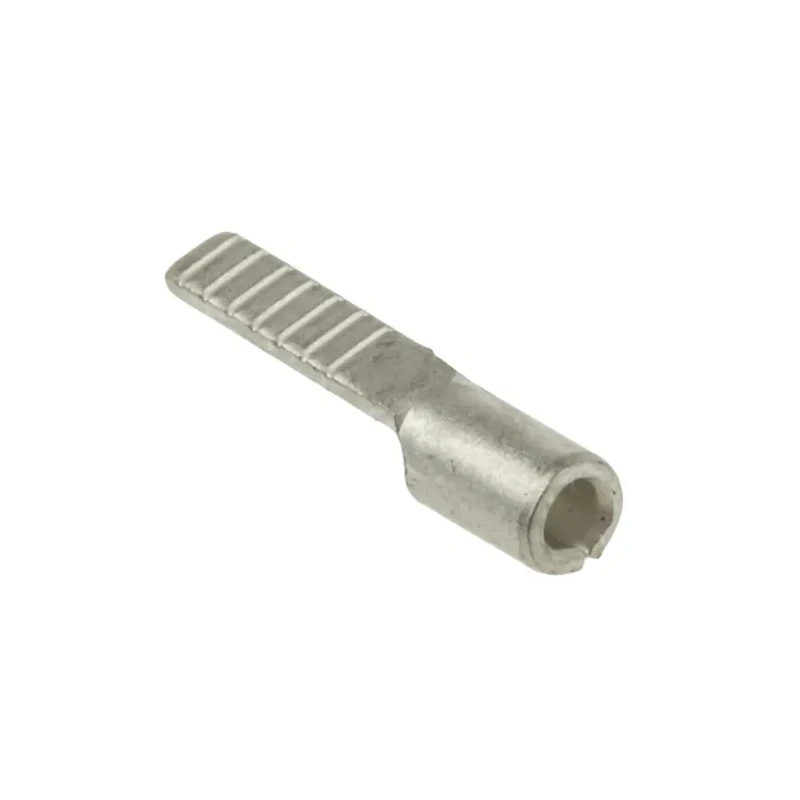

RS PRO Uninsulated Crimp Blade Terminal 14.8 mm Blade Length, 22 AWG to 16 AWG, Grey 178-7239

The RS PRO 178-7239 Uninsulated Crimp Blade Terminal is purpose-built for connecting electrical wires in industrial, commercial, and electronics applications. This compact terminal is compatible with wire sizes ranging from 22 AWG up to 16 AWG, accommodating cable cross-sections from 0.5 mm² to 1.5 mm². The terminal is manufactured from copper, ensuring long-lasting conductivity and excellent electrical performance.

Its blade features a length of 14.8 mm, width of 2.3 mm, and thickness of 0.75 mm, providing optimal durability for crimped connections. The uninsulated design allows for direct visual inspection of the connection, making it suitable for stringent wiring and assembly tasks. The grey-coloured blade enhances visibility during installation, while the terminal's inside diameter of 1.7 mm fits a wide range of standard cable types.

Blade Terminals like this RS PRO unit are frequently used in panel building, machinery wiring, and assembly of electronic devices. The crimped copper contact optimizes current transfer and firmly secures the conductor, minimizing resistance and ensuring a stable electrical pathway. Whether used for component integration, device interconnection, or maintenance operations, this terminal stands up to demanding installation environments.

RS PRO 178-7239 complies with international standards for connectivity and assembly, with no hooked feature or specific approvals. Its straightforward configuration is designed for efficiency and reliability. The uninsulated nature is preferred where insulation is not required, allowing quick visual and physical audit of the connection.

The terminal is especially useful in applications that require modular wire terminations, including control panel wiring, relay racks, and circuit board connections. Its precise dimensions facilitate use with tooling and crimping devices commonly found in electrical workshops and production environments.

Designed for secure crimping onto uninsulated wire ends. Supports wire sizes from 22 AWG to 16 AWG for versatile electrical connections. Features a 14.8 mm blade length and 2.3 mm blade width. Made from copper for reliable conductivity.

Grey terminal with 0.75 mm blade thickness for robust performance. Suitable for industrial, commercial, and electronics wiring applications. Complies with demanding installation requirements in component assemblies. Copper contact and uninsulated design allows easy visual inspection.
