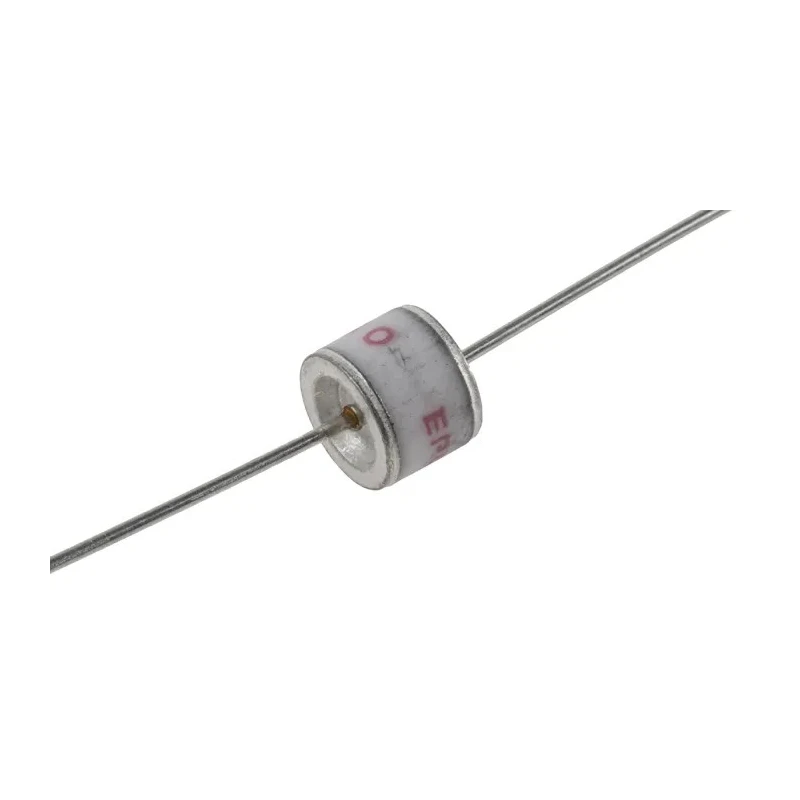

TDK EHV 2 Electrode Through Hole Gas Discharge Tube 90 V dc 5 kA B88069X0720S102

Free Delivery in India | Lowest Global Shipping Charges

TDK EHV 2 Electrode Through Hole Gas Discharge Tube 90 V dc 5 kA B88069X0720S102



Category Gas Discharge Tube Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Length	6.05mm
Model	B88069X0720S102
Mount Type	Through Hole
Series	EHV
Maximum Operating Temperature	90°C
Capacitance	1pF
Minimum Operating Temperature	-40°C
Suppressor Type	2 Electrode Arrester
Maximum Voltage	34V dc
Standards/Approvals	UL 94 V-0
Maximum Surge Current	5kA
DC Spark Over Voltage	90V dc
Impulse Spark Over Voltage	600V
EPCOS, EHV 90V 10kA, Through Hole 2 Electrode Arrester Gas Discharge TubeBrand	EPCOS

Key Features

Designed with a through hole mount for easy PCB integration.
Features a low impulse spark-over voltage of 600 V for superior surge protection.
Operates reliably between -40°C minimum and 90°C maximum temperatures.
Robust ceramic body construction enhances durability and longevity.
Capacitance of 1 pF supports minimal interference in sensitive electronic circuits.
UL 94 V-0 standard compliance ensures fire safety and quality.
Ideal for protecting measuring, control, and regulating lines in telecommunication systems.
Compact length of 6.05 mm allows for space-saving PCB layouts.

Product Description

TDK B88069X0720S102 is a high-quality gas discharge tube designed for surge protection in telecommunication systems and sensitive control circuits. This miniature, gas-filled arrester is engineered with two electrodes and features a through hole mount suitable for PCB assembly.

With a DC spark-over voltage of 90 V and a maximum surge current rating of 5 kA, this device effectively protects against voltage spikes and transient events. It exhibits low impulse spark-over voltage at 600 V, ensuring minimal disruption to connected electronics during surges.

The tube is robustly constructed with a ceramic body that provides mechanical strength and thermal stability from -40°C to 90°C operating temperatures. Its small 6.05 mm length supports compact design goals in electronic assemblies.

The capacitance is rated at 1 pF, ensuring that signal integrity in communication lines is preserved while offering reliable overvoltage protection. The product complies with UL 94 V-0 standards, underscoring its flame-retardant and safety credentials.

This TDK gas discharge tube is ideal for a variety of industrial, telecommunications, and electronic manufacturing applications where surge protection is critical. It safeguards measuring, control, and regulating lines from harmful overvoltage events, enhancing system reliability and longevity.

Robust ceramic housing ensures durability under harsh conditions. Low capacitance preserves signal quality in sensitive applications. Suitable for telecommunications, industrial control, and measurement equipment. Wide operating temperature range supports diverse environmental conditions.

High surge current capacity meets demanding transient protection needs. Explore the Gas Discharge Tube category at EnvMart for more surge protection components from leading manufacturers.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum surge current rating of this model is 5 kA, providing effective protection against voltage spikes and transient events.

The DC spark-over voltage for this gas discharge tube is 90 V dc, ensuring reliable operation during overvoltage conditions.

This model operates reliably within a temperature range of -40°C to 90°C, making it suitable for diverse environmental conditions.

It features a through hole mount, which allows for easy integration into printed circuit boards (PCBs).

The capacitance of this gas discharge tube is rated at 1 pF, which helps to minimize interference in sensitive electronic circuits.

The length of this model is 6.05 mm, allowing for compact designs in electronic assemblies.

This unit complies with the UL 94 V-0 standard, ensuring fire safety and quality.

The impulse spark-over voltage for this gas discharge tube is 600 V, providing superior surge protection.

It is ideal for protecting measuring, control, and regulating lines in telecommunication systems and sensitive control circuits.

This model is a 2 electrode arrester, designed specifically for surge protection applications.

The country of origin for this gas discharge tube is India.

Key features include a low impulse spark-over voltage of 600 V, robust ceramic body construction, and a compact length of 6.05 mm for space-saving PCB layouts.
