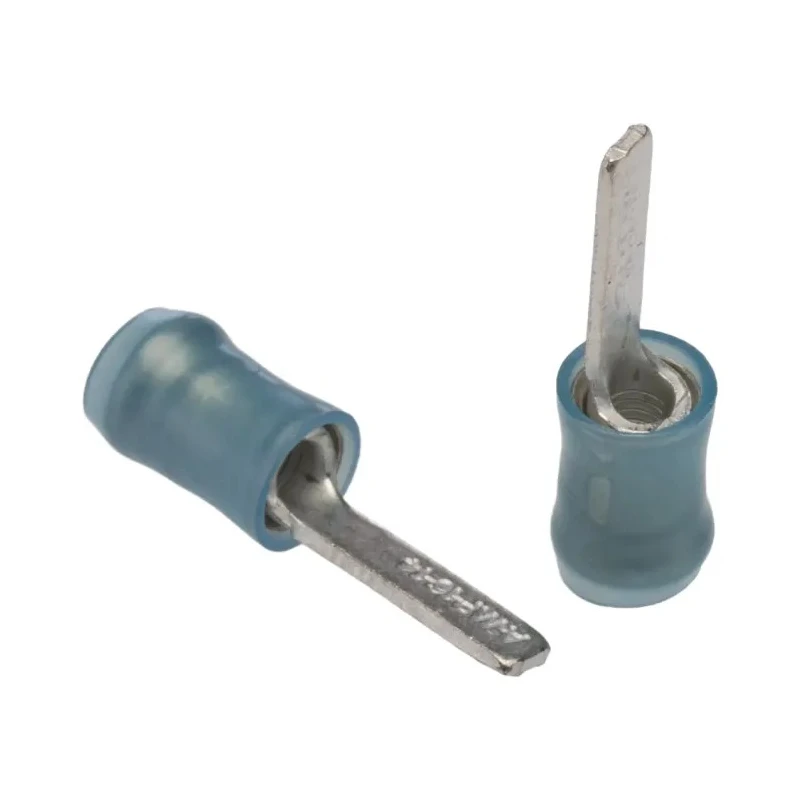

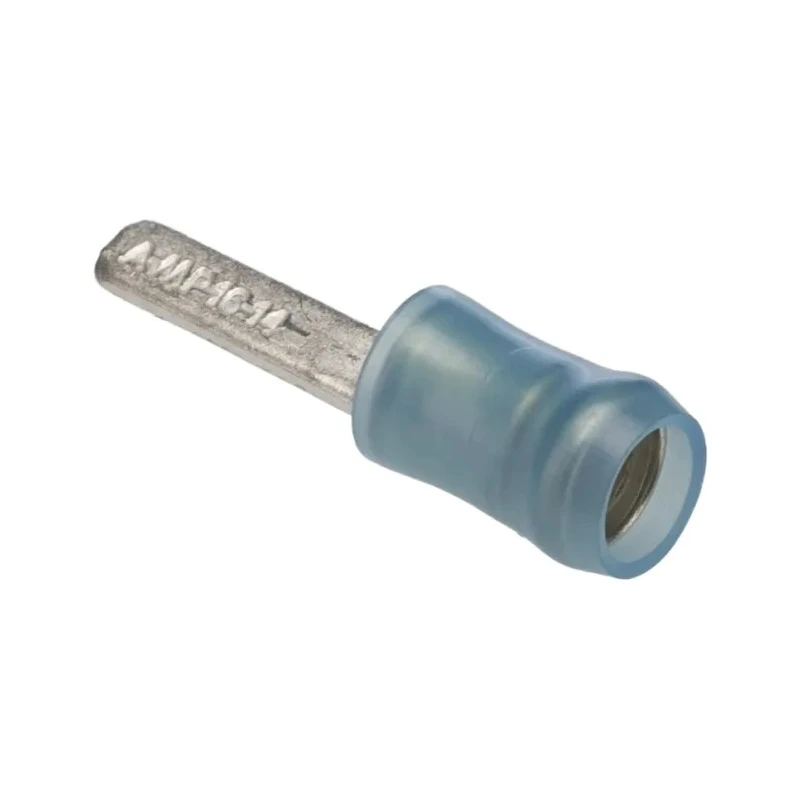

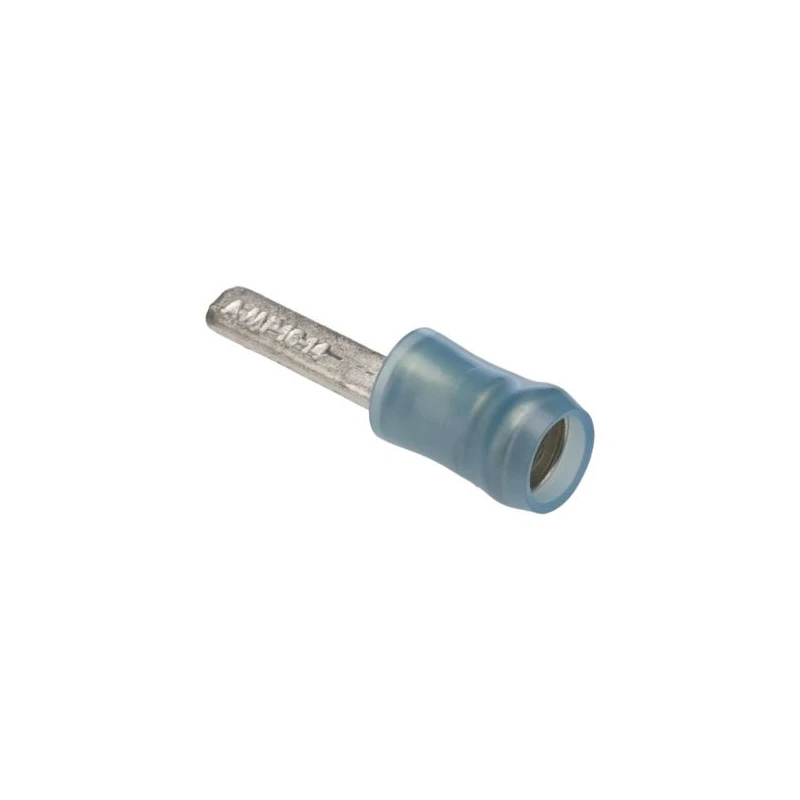

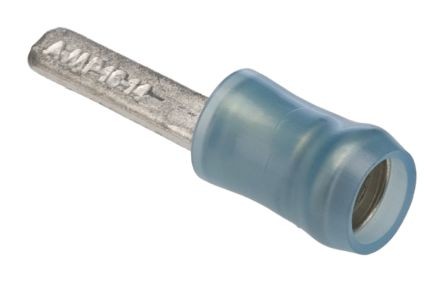

TE Connectivity PIDG Insulated Crimp Blade Terminal Nylon Insulation 16 AWG to 14 AWG 12.57mm Blade Length 131330
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| Model | 131330 |
| Insulation | Insulated |
| Overall Length | 22.63mm |
| Contact Material | Copper |
| Series | PIDG |
| Blade Length | 12.57mm |
| Insulation Material | Nylon |
| Inside Diameter | 4.1mm |
| Blade Width | 2.92mm |
| Blade Thickness | 0.79mm |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
Key Features
- The terminal features a blade length of 12.57 mm for accurate fitting.
- Nylon insulation provides effective electrical isolation and durability.
- Compatible with wire sizes ranging from 16 AWG (1 mm²) to 14 AWG (2.6 mm²).
- Made with copper contact material and tin plating for corrosion resistance.
- The overall length measures 22.63 mm ensuring compact installation.
- Blade thickness is 0.79 mm and blade width is 2.92 mm for secure contact.
- Blue color coding for easy identification of wire gauge.
- Designed without hooked blade for straightforward blade connection.
Product Description
TE Connectivity 131330 PIDG Insulated Crimp Blade Terminal is engineered for secure and efficient wire termination in industrial, electronics, and power connector applications. It features a precision-formed copper blade with tin plating to ensure excellent conductivity and corrosion resistance, housed within a durable nylon insulated sleeve.
This crimp blade terminal supports wire sizes from 16 AWG to 14 AWG (1 mm² to 2.6 mm²), accommodating a range of wiring needs in control panels, automotive, and electrical equipment. The 12.57 mm blade length and 22.63 mm overall length deliver reliable contact performance in tight spaces.
The nylon insulation sleeve provides electrical insulation and mechanical protection against abrasion and environmental factors, colored blue for easy wire gauge identification. The blade’s 0.79 mm thickness and 2.92 mm width ensure robust mechanical and electrical connection without blade hooks for simplified fitting.
Manufactured to meet standard industrial quality, this terminal is widely used in electrical wiring systems, electronic assemblies, and commercial equipment requiring durable and insulated blade terminals.
The terminal features a blade length of 12.57 mm for accurate fitting. Nylon insulation provides effective electrical isolation and durability. Compatible with wire sizes from 16 AWG to 14 AWG. Copper contact material with tin plating enhances corrosion resistance.
Compact overall length of 22.63 mm allows usage in confined spaces. Blade thickness and width optimized for secure electrical contact. Blue color coding identifies wire gauge at a glance. Non-hooked blade design for straightforward insertion.
Suitable for industrial, laboratory, and commercial electrical wiring systems.
This TE Connectivity PIDG Insulated Crimp Blade Terminal combines performance, reliability, and easy installation, making it a preferred choice for professionals in electronics manufacturing and electrical maintenance.
Explore more Blade Terminal connectors and crimping tools from EnvMart, your trusted industrial components partner.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The blade length of this terminal is 12.57 mm, designed for accurate fitting.
This model is compatible with wire sizes ranging from 16 AWG (1 mm²) to 14 AWG (2.6 mm²).
The overall length of this terminal measures 22.63 mm, allowing for compact installation in tight spaces.
It is made with copper contact material and features tin plating for enhanced corrosion resistance, housed within a nylon insulated sleeve.
The blade has a thickness of 0.79 mm and a width of 2.92 mm, ensuring a secure electrical connection.
The terminal is colored blue for easy identification of the wire gauge.
This terminal is suitable for use in industrial, laboratory, and commercial electrical wiring systems.
It features nylon insulation, providing effective electrical isolation and mechanical protection.
No, this model is designed without a hooked blade, allowing for straightforward blade connection.
The inside diameter of this terminal is 4.1 mm, suitable for the specified wire sizes.
The terminal is manufactured in India, meeting standard industrial quality.
This terminal belongs to the PIDG series by TE Connectivity, known for its reliable performance in electrical applications.
