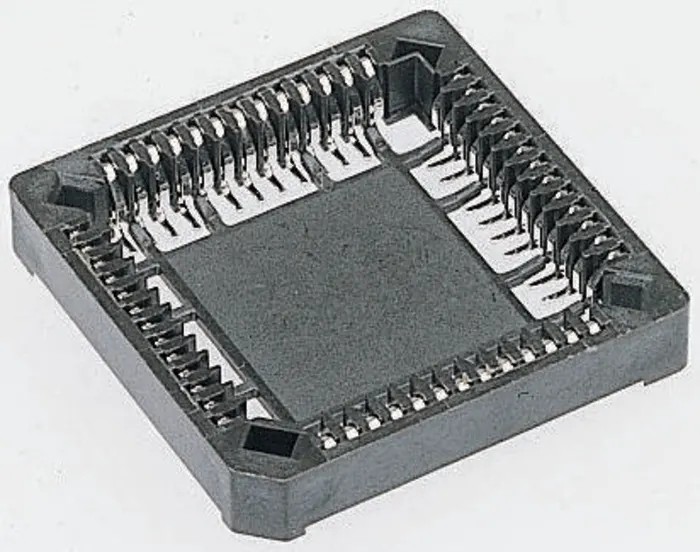

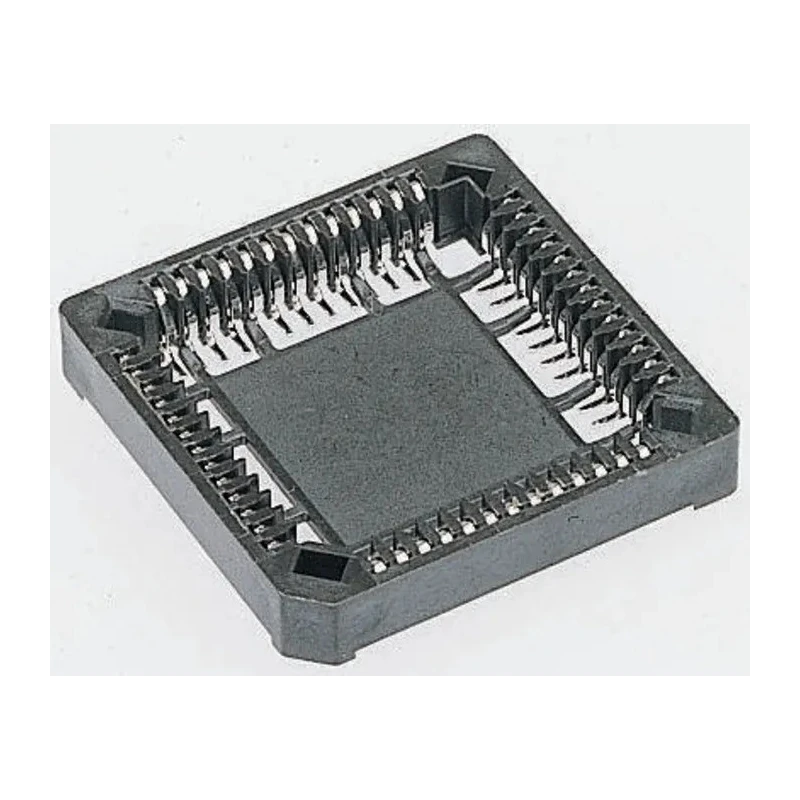

Winslow PLCC IC Socket 44 Way Through Hole 1.27 mm Pitch, Phosphor Bronze Contacts WPLCC044-ST1RC

Winslow presents the WPLCC044-ST1RC PLCC IC Socket, engineered for demanding electronic applications. Designed for integration into printed circuit boards, this socket features 44 individual phosphor bronze contacts set at a 1.27 mm pitch, ideal for JEDEC-standard PLCC chips. Its through-hole mount ensures secure placement and mechanical strength, making it suitable for industrial, laboratory, and commercial electronics projects.

The device is constructed with robust materials: contacts made of phosphor bronze, plated with tin over copper for optimal conductivity and corrosion resistance, and a polyphenylene sulphide housing that ensures both mechanical durability and electrical insulation. The socket supports operating voltages up to 100 V AC RMS and 150 V DC, and manages currents up to 1 A, making it compatible with a wide range of integrated circuits.

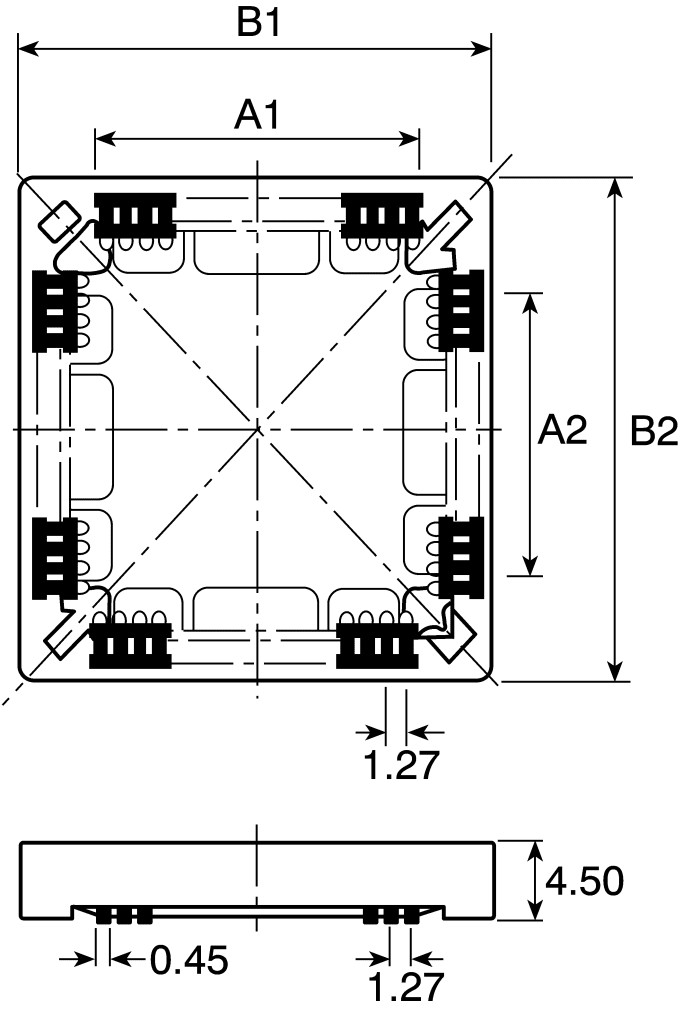

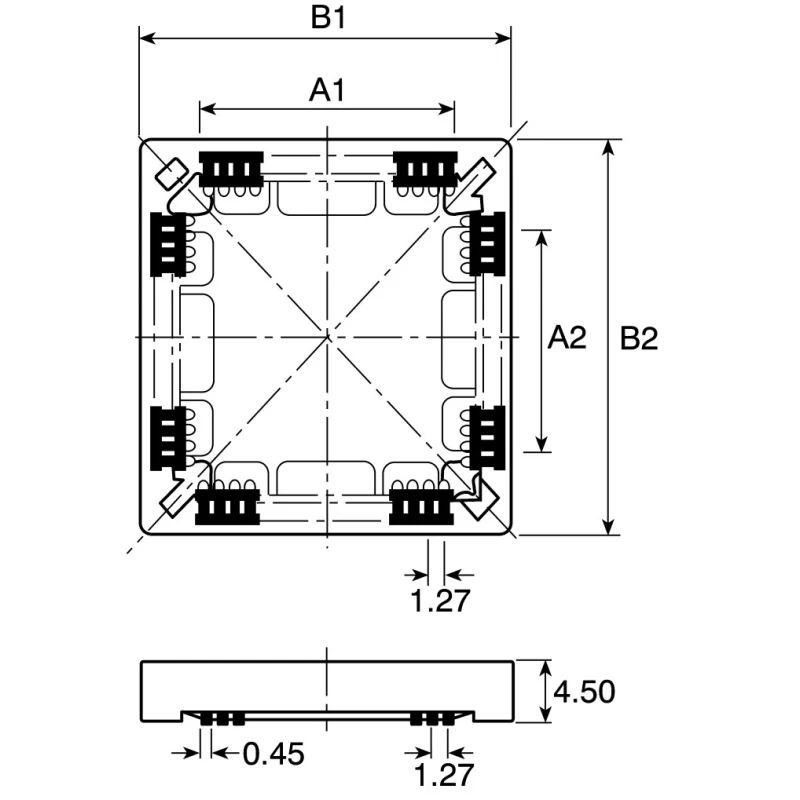

Its wide temperature tolerance, from -55°C to 105°C, facilitates deployment in environments subject to varied thermal conditions. The socket exhibits a low-profile design, only 4.5 mm high, and includes standoffs for effective PCB cleaning. The open window-style form factor enables easy solder joint inspection during and after assembly.

Polarising features guarantee correct orientation during chip insertion, reducing the risk of installation errors. With typical contact life rated for 100 cycles, the Winslow WPLCC044-ST1RC ensures repeatable and reliable usage for maintenance operations and prototyping.

Industrial, laboratory, and commercial applications benefit from the socket’s dependable build quality and electrical performance. It is suited for use in manufacturing, circuit testing, product development, and high-density PCB assembly.

Accommodates 44 PLCC contacts for standard IC mounting. Features a fine 1.27 mm pitch for compact PCB layouts. Through Hole configuration ensures robust mechanical stability. Constructed from high-quality phosphor bronze with tin over copper plating for dependable conductivity.

Supports operating voltages of 100 V AC RMS and 150 V DC. Wide operating temperature range from -55°C to 105°C for diverse environments. Low profile design allows easy inspection and cleaning of solder joints. Polyphenylene sulphide housing ensures durability and insulation.
