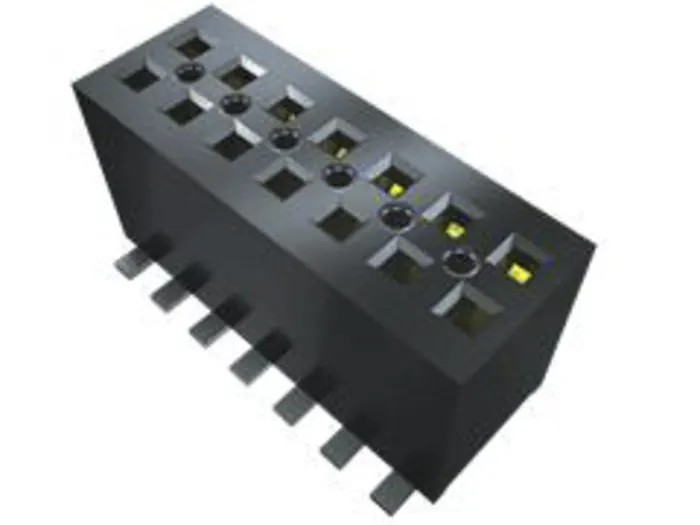

Samtec FLE Series 16-Contact Straight Surface Mount PCB Socket, 2 Row, 1.27 mm Pitch, Solder, Gold Plated, FLE-108-01-G-DV

Free Delivery in India | Lowest Global Shipping Charges

Samtec FLE Series 16-Contact Straight Surface Mount PCB Socket, 2 Row, 1.27 mm Pitch, Solder, Gold Plated, FLE-108-01-G-DV

Name: Samtec FLE Series 16-Contact Straight Surface Mount PCB Socket, 2 Row, 1.27 mm Pitch, Solder, Gold Plated, FLE-108-01-G-DV
Brand: Samtec
SKU: 82185
Price: 2.95 USD
Availability: InStock



Category PCB Socket Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	2.9A
Model	FLE-108-01-G-DV
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Bronze
Series	FLE
Termination Type	Solder
Maximum Operating Temperature	125°C
Sub Type	Cost-Effective Single Beam Socket Strip
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	16
Connector System	Board-to-Board

Key Features

Features 16 contacts arranged in 2 rows for efficient signal routing.
Designed for surface mounting with straight orientation and solder termination for robust mechanical stability.
Offers a precision 1.27 mm pitch to support high-density PCB layouts.
Contact material is bronze with gold plating, ensuring durability and optimal conductivity.
Housing constructed from liquid crystal polymer for high electrical performance and temperature resistance.
Capable of handling currents up to 2.9A, suitable for various electronic circuits.
Operational temperature range from -55°C to 125°C supports demanding environments.
RoHS compliant and designed as a cost-effective single beam socket strip in the FLE series.

Product Description

The Samtec FLE-108-01-G-DV is an advanced surface mount PCB socket designed for high-density board-to-board interconnections, featuring 16 contacts in a dual-row configuration. Engineered for surface mounting, this socket ensures strong mechanical retention and reliable electrical performance, making it ideal for integration in modern electronics.

Each socket is precision-designed with a 1.27 mm pitch, facilitating compact PCB layouts while maintaining clear signal integrity. The straight orientation and solder termination allow for secure permanent installations, making this product a suitable choice for manufacturing, test instrumentation, and electronic control applications. Its contacts are made from resilient bronze and finished with gold plating, delivering excellent corrosion resistance and stable electrical conductivity over time.

The FLE-108-01-G-DV’s housing is constructed from liquid crystal polymer, a material well-regarded for its high strength and temperature stability. This ensures the socket performs consistently even under thermal stress, with an operational temperature window spanning from -55°C up to 125°C. The socket is rated for a continuous current of 2.9A, supporting a wide range of industrial and commercial circuit requirements.

With adherence to RoHS compliance, this PCB socket is not only technically robust but also environmentally conscious. As a part of Samtec’s FLE series, it leverages a cost-effective single beam socket strip design, making it a preferred selection for both prototyping and volume manufacturing environments. Typical applications include embedded computing, industrial automation, consumer electronics, and test equipment where reliable board-level connectivity is essential.

Engineers and designers benefit from the combination of a secure mounting system, high current capacity, and robust temperature tolerance, all packed into a compact profile. The FLE-108-01-G-DV supports innovation in electronic device development and assembly, assuring long-lasting and stable PCB interconnections.
