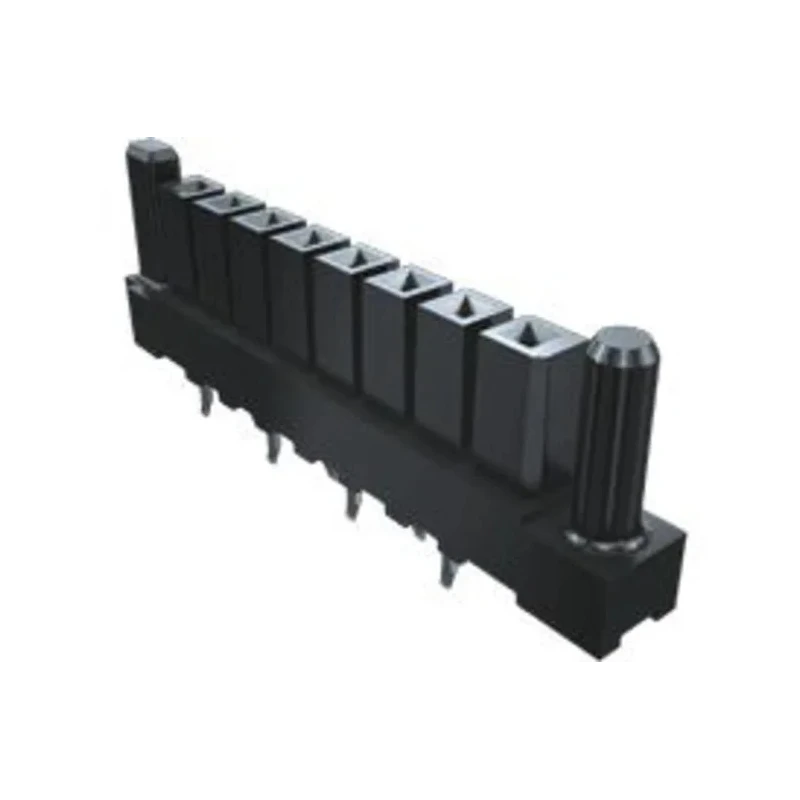

Samtec IPBS Series PCB Socket, 10 Contacts, 2 Rows, Straight Through Hole, 4.19 mm Pitch, Solder, 565V IPBS-105-01-T-D
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 565V |
| Brand | Samtec |
| Orientation | Straight |
| Model | IPBS-105-01-T-D |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Bronze |
| Current Rating | 5.3 A @ 75°C |
| Series | IPBS |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Isolated Power Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 4.19mm |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Provides reliable electrical connections using a 10-contact, 2-row configuration.
- Features through-hole mounting for secure placement on printed circuit boards.
- Utilizes a 4.19 mm pitch between contacts for precise spacing and compatibility.
- Constructed from liquid crystal polymer housing for enhanced durability and heat resistance.
- Supports voltage up to 565V for robust electronic applications.
- Straight orientation facilitates easy board-to-board connections.
- Solder termination ensures strong and stable electrical contact points.
- Female contact gender and tin plating improve electrical performance and longevity.
Product Description
Samtec IPBS-105-01-T-D is a straight through hole PCB socket specifically engineered for high-performance board-to-board interconnections. This socket is part of the IPBS Series and is equipped with 10 contacts arranged in 2 parallel rows, optimizing electrical reliability and signal integrity for complex electronic systems.
Designed to meet demanding requirements, the socket provides a 4.19 mm pitch for convenient and accurate contact spacing. The housing is made of liquid crystal polymer, offering superior durability, insulation, and resistance to high temperatures commonly encountered in industrial and electronic environments. Its straight orientation allows seamless alignment, simplifying installation and maintaining proper electrical pathways across PCBs.
The Samtec IPBS-105-01-T-D socket features through-hole mounting, making it suitable for robust, permanent PCB assembly. Solder termination enables strong, stable connections, minimizing resistance and signal loss during operation. The female contacts are made from bronze and plated with tin, ensuring excellent conductivity, corrosion resistance, and long-term reliability under repeated mechanical stress.
With a maximum voltage rating of 565V and a current rating up to 5.3A at 75°C, this PCB socket is applicable to both power and signal circuits. It operates reliably between -55°C and 105°C, covering most industrial and laboratory use cases. The socket is compliant with RoHS standards, promoting environmentally responsible manufacturing and assembly processes. Optional polarized guide posts and individually shrouded contacts further enhance connection stability and prevent misalignment during mating.
This product is ideal for use in electronic devices, instrumentation, industrial automation, control systems, laboratory equipment, and manufacturing assemblies where secure, high-density board-to-board connections are required.
Explore the complete range of Samtec PCB Sockets and connectors for innovative solutions in electronics, industrial, and laboratory projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating of this PCB socket is 565V, making it suitable for robust electronic applications.
This model has a current rating of 5.3A at 75°C, allowing it to handle power circuits effectively.
The housing of this socket is constructed from liquid crystal polymer, which provides enhanced durability and heat resistance.
This PCB socket features 10 contacts arranged in 2 rows, optimizing electrical reliability and signal integrity.
The pitch between the contacts is 4.19 mm, ensuring precise spacing for compatibility with various PCB designs.
It utilizes solder termination, which ensures strong and stable electrical contact points during operation.
The operating temperature range for this PCB socket is from -55°C to 105°C, making it suitable for a variety of industrial and laboratory applications.
Yes, this socket is compliant with RoHS standards, promoting environmentally responsible manufacturing processes.
This model has a straight orientation, facilitating easy board-to-board connections during installation.
The contact gender of this socket is female, which is designed for compatibility with male connectors.
The country of origin for this PCB socket is Malaysia.
This model is ideal for use in electronic devices, instrumentation, industrial automation, control systems, and laboratory equipment.
